Prometheus架构¶
Prometheus 是一个开源监控系统，它本身已经成为了云原生中指标监控的事实标准 。
k8s集群监控体系演变史¶
第一版本：Cadvisor+InfluxDB+Grafana
只能从主机维度进行采集，没有Namespace、Pod等维度的汇聚功能

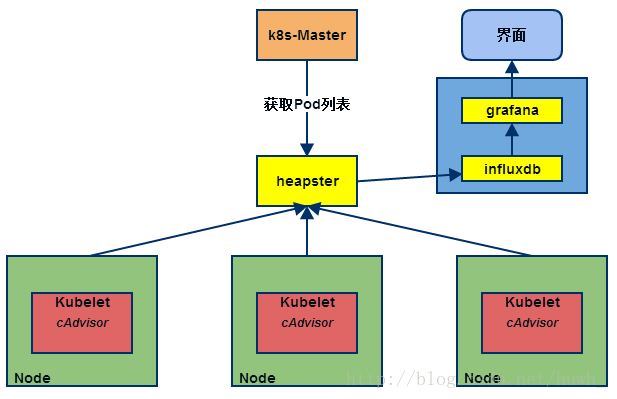

第二版本： Heapster+InfluxDB+Grafana
heapster负责调用各node中的cadvisor接口，对数据进行汇总，然后导到InfluxDB ， 可以从cluster，node，pod的各个层面提供详细的资源使用情况。
第三版本：Metrics-Server + Prometheus

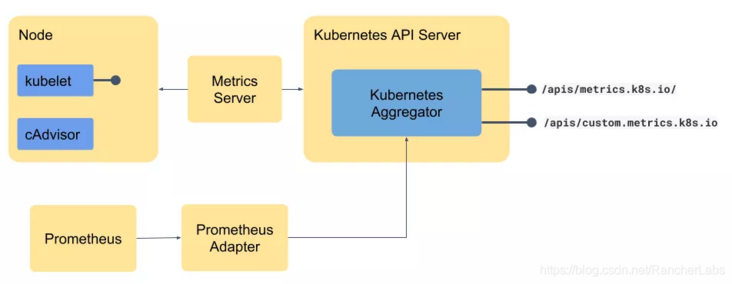

k8s对监控接口进行了标准化，主要分了三类：
- Resource Metrics
metric-api对应的接口是 metrics.k8s.io，主要的实现就是 metrics-server，它提供的是资源的监控，比较常见的是节点级别、pod 级别、namespace 级别、class 级别。这类的监控指标都可以通过 metrics.k8s.io 这个接口获取到
- Custom Metrics
对应的接口是 custom.metrics.k8s.io，主要的实现是 Prometheus， 它提供的是资源监控和自定义监控，资源监控和上面的资源监控其实是有覆盖关系的。
自定义监控指的是：比如应用上面想暴露一个类似像在线人数，或者说调用后面的这个数据库的 MySQL 的慢查询。这些其实都是可以在应用层做自己的定义的，然后并通过标准的 Prometheus 的 client，暴露出相应的 metrics，然后再被 Prometheus 进行采集
- External Metrics
对应的接口是 external.metrics.k8s.io。主要的实现厂商就是各个云厂商的 provider，通过这个 provider 可以通过云资源的监控指标

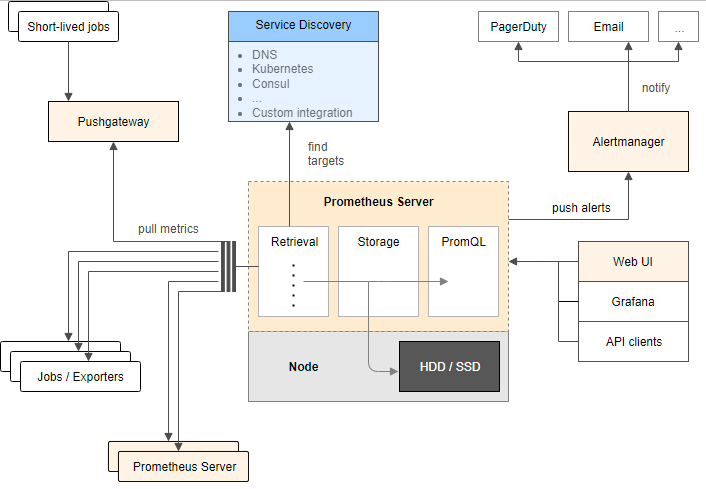

Prometheus架构¶
- Prometheus Server ，监控、告警平台核心，抓取目标端监控数据，生成聚合数据，存储时间序列数据
- exporter，由被监控的对象提供，提供API暴漏监控对象的指标，供prometheus 抓取
- node-exporter
- blackbox-exporter
- redis-exporter
- mysql-exporter
- custom-exporter
- ...
- pushgateway，提供一个网关地址，外部数据可以推送到该网关，prometheus也会从该网关拉取数据

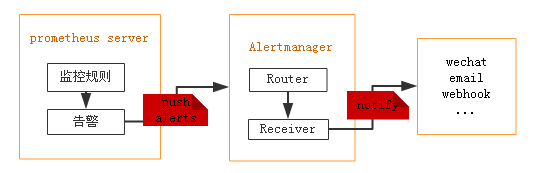

- Alertmanager，接收Prometheus发送的告警并对于告警进行一系列的处理后发送给指定的目标
- Grafana：配置数据源，图标方式展示数据
安装¶
Prometheus安装¶
基于go开发， https://github.com/prometheus/prometheus
若使用docker部署直接启动镜像即可：
我们想制作Prometheus的yaml文件，可以先启动容器进去看一下默认的启动命令：
# docker run -d --name tmp -p 9090:9090 prom/prometheus:v2.28.0
$ docker exec -ti prometheus sh
#/ ps aux
#/ cat /etc/prometheus/prometheus.yml
# my global config
global:
scrape_interval: 15s # Set the scrape interval to every 15 seconds. Default is every 1 minute.
evaluation_interval: 15s # Evaluate rules every 15 seconds. The default is every 1 minute.
# scrape_timeout is set to the global default (10s).
# Alertmanager configuration
alerting:
alertmanagers:
- static_configs:
- targets:
# - alertmanager:9093
# Load rules once and periodically evaluate them according to the global 'evaluation_interval'.
rule_files:
# - "first_rules.yml"
# - "second_rules.yml"
# A scrape configuration containing exactly one endpoint to scrape:
# Here it's Prometheus itself.
scrape_configs:
# The job name is added as a label `job=<job_name>` to any timeseries scraped from this config.
- job_name: 'prometheus'
# metrics_path defaults to '/metrics'
# scheme defaults to 'http'.
static_configs:
- targets: ['localhost:9090']
本例中，使用k8s来部署，所需的资源清单如下：
[root@k8s-master ~]# mkdir prometheus
[root@k8s-master ~]# cd prometheus
# 需要准备配置文件，因此使用configmap的形式保存
cat > prometheus.yml <<\EOF
# my global config
global:
scrape_interval: 30s
evaluation_interval: 30s
# scrape_timeout is set to the global default (10s).
# Alertmanager configuration
alerting:
alertmanagers:
- static_configs:
- targets:
# - alertmanager:9093
# Load rules once and periodically evaluate them according to the global 'evaluation_interval'.
rule_files:
# - "first_rules.yml"
# - "second_rules.yml"
# A scrape configuration containing exactly one endpoint to scrape:
# Here it's Prometheus itself.
scrape_configs:
- job_name: 'prometheus'
static_configs:
- targets: ['localhost:9090']
EOF
# kubectl create ns monitor
# kubectl -n monitor create configmap prometheus-config --from-file=prometheus.yml
# pvc
cat > pvc.yaml <<EOF
kind: PersistentVolumeClaim
apiVersion: v1
metadata:
name: prometheus
namespace: monitor
spec:
accessModes:
- ReadWriteOnce
storageClassName: nfs
resources:
requests:
storage: 200Gi
EOF
# kubectl create -f pvc.yaml
# prometheus的资源文件
# 出现Prometheus数据存储权限问题，因为Prometheus内部使用nobody启动进程，挂载数据目录后权限为root，因此使用initContainer进行目录权限修复：
cat > prometheus-deployment.yaml <<EOF
apiVersion: apps/v1
kind: Deployment
metadata:
name: prometheus
namespace: monitor
labels:
app: prometheus
spec:
selector:
matchLabels:
app: prometheus
template:
metadata:
labels:
app: prometheus
spec:
serviceAccountName: prometheus
initContainers:
- name: "change-permission-of-directory"
image: busybox
command: ["/bin/sh"]
args: ["-c", "chown -R 65534:65534 /prometheus"]
securityContext:
privileged: true
volumeMounts:
- mountPath: "/etc/prometheus"
name: config-volume
- mountPath: "/prometheus"
name: data
containers:
- image: prom/prometheus:v2.28.0
name: prometheus
args:
- "--config.file=/etc/prometheus/prometheus.yml"
- "--storage.tsdb.path=/prometheus" # 指定tsdb数据路径
- "--web.enable-lifecycle" # 支持热更新，直接执行localhost:9090/-/reload立即生效
- "--web.console.libraries=/usr/share/prometheus/console_libraries"
- "--web.console.templates=/usr/share/prometheus/consoles"
ports:
- containerPort: 9090
name: http
volumeMounts:
- mountPath: "/etc/prometheus"
name: config-volume
- mountPath: "/prometheus"
name: data
resources:
requests:
cpu: 100m
memory: 512Mi
limits:
cpu: 100m
memory: 512Mi
volumes:
- name: data
persistentVolumeClaim:
claimName: prometheus
- configMap:
name: prometheus-config
name: config-volume
EOF
# rbac,prometheus会调用k8s api做服务发现进行抓取指标
cat > prometheus-rbac.yaml <<EOF
apiVersion: v1
kind: ServiceAccount
metadata:
name: prometheus
namespace: monitor
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
name: prometheus
rules:
- apiGroups:
- ""
resources:
- nodes
- services
- endpoints
- pods
- nodes/proxy
verbs:
- get
- list
- watch
- apiGroups:
- "extensions"
resources:
- ingresses
verbs:
- get
- list
- watch
- apiGroups:
- ""
resources:
- configmaps
- nodes/metrics
verbs:
- get
- nonResourceURLs:
- /metrics
verbs:
- get
---
apiVersion: rbac.authorization.k8s.io/v1beta1
kind: ClusterRoleBinding
metadata:
name: prometheus
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: prometheus
subjects:
- kind: ServiceAccount
name: prometheus
namespace: monitor
EOF
# 提供Service，为Ingress使用
cat > prometheus-svc.yaml <<EOF
apiVersion: v1
kind: Service
metadata:
name: prometheus
namespace: monitor
labels:
app: prometheus
spec:
selector:
app: prometheus
type: ClusterIP
ports:
- name: web
port: 9090
targetPort: http
EOF
cat > prometheus-ingress.yaml <<EOF
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: prometheus
namespace: monitor
spec:
rules:
- host: prometheus.luffy.com
http:
paths:
- path: /
pathType: Prefix
backend:
service:
name: prometheus
port:
number: 9090
EOF
部署上述资源：
# 命名空间
$ kubectl create namespace monitor
# 配置文件
$ kubectl -n monitor create configmap prometheus-config --from-file=prometheus.yml
[root@k8s-master prometheus]# ll
总用量 24
-rw-r--r--. 1 root root 1676 10月 25 09:15 prometheus-deployment.yaml
-rw-r--r--. 1 root root 318 10月 25 09:23 prometheus-ingress.yaml
-rw-r--r--. 1 root root 806 10月 25 09:22 prometheus-rbac.yaml
-rw-r--r--. 1 root root 230 10月 25 09:22 prometheus-svc.yaml
-rw-r--r--. 1 root root 607 10月 25 08:11 prometheus.yml
-rw-r--r--. 1 root root 205 10月 25 08:30 pvc.yaml
#部署configmap
$ kubectl apply -f .
# 访问测试
$ kubectl -n monitor get ingress
[root@k8s-master prometheus]# kubectl -n monitor get ingress
NAME CLASS HOSTS ADDRESS PORTS AGE
prometheus <none> prometheus.luffy.com 80 3m21s
[root@k8s-master prometheus]# kubectl -n monitor get po
NAME READY STATUS RESTARTS AGE
prometheus-7d6799c84c-tg774 1/1 Running 0 3m24s
# 宿主机配置hosts
vi /etc/hosts
10.211.55.25 wordpress.luffy.com harbor.luffy.com kibana.luffy.com prometheus.luffy.com
理解时间序列数据库(TSDB)¶
理解时间序列数据库（TSDB）¶
# http://localhost:9090/metrics
$ kubectl -n monitor get po -o wide
prometheus-dcb499cbf-fxttx 1/1 Running 0 13h 10.244.1.132 k8s-slave1
$ curl http://10.244.1.132:9090/metrics
...
# HELP promhttp_metric_handler_requests_total Total number of scrapes by HTTP status code.
# TYPE promhttp_metric_handler_requests_total counter
promhttp_metric_handler_requests_total{code="200"} 5
promhttp_metric_handler_requests_total{code="500"} 0
promhttp_metric_handler_requests_total{code="503"} 0
tsdb（Time Series Database）
其中#号开头的两行分别为：
- HELP开头说明该行为指标的帮助信息，通常解释指标的含义
- TYPE开头是指明了指标的类型
- counter 计数器
- guage 测量器
- histogram 柱状图
- summary 采样点分位图统计
其中非#开头的每一行表示当前采集到的一个监控样本：
- promhttp_metric_handler_requests_total表明了当前指标的名称
- 大括号中的标签则反映了当前样本的一些特征和维度
- 浮点数则是该监控样本的具体值。
每次采集到的数据都会被Prometheus以time-series（时间序列）的方式保存到内存中，定期刷新到硬盘。如下所示，可以将time-series理解为一个以时间为X轴的数字矩阵：
^
│ . . . . . . . . . . . . . . . . . . . node_cpu{cpu="cpu0",mode="idle"}
│ . . . . . . . . . . . . . . . . . . . node_cpu{cpu="cpu0",mode="system"}
│ . . . . . . . . . . . . . . . . . . node_load1{}
│ . . . . . . . . . . . . . . . . . .
v
<------------------ 时间 ---------------->
在time-series中的每一个点称为一个样本（sample），样本由以下三部分组成：
- 指标(metric)：metric name和描述当前样本特征的labelsets;
- 时间戳(timestamp)：一个精确到毫秒的时间戳;
- 样本值(value)： 一个float64的浮点型数据表示当前样本的值。
在形式上，所有的指标(Metric)都通过如下格式标示：
- 指标的名称(metric name)可以反映被监控样本的含义（比如，
http_request_total- 表示当前系统接收到的HTTP请求总量）。 - 标签(label)反映了当前样本的特征维度，通过这些维度Prometheus可以对样本数据进行过滤，聚合等。
Prometheus：定期去Tragets列表拉取监控数据，存储到TSDB中，并且提供指标查询、分析的语句和接口。
添加监控目标¶
coredns¶
添加监控目标¶
无论是业务应用还是k8s系统组件，只要提供了metrics api，并且该api返回的数据格式满足标准的Prometheus数据格式要求即可。
其实，很多组件已经为了适配Prometheus采集指标，添加了对应的/metrics api，比如
CoreDNS：
[root@k8s-master prometheus]# kubectl -n kube-system get po -owide|grep coredns
coredns-59d64cd4d4-kpl7s 1/1 Running 12 14d 10.244.0.55 k8s-master
coredns-59d64cd4d4-lb7tv 1/1 Running 12 14d 10.244.0.56 k8s-master
[root@k8s-master prometheus]# kubectl -n kube-system get svc
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
kube-dns ClusterIP 10.96.0.10 <none> 53/UDP,53/TCP,9153/TCP 14d
metrics-server ClusterIP 10.97.60.134 <none> 443/TCP 5d23h
$ curl 10.244.0.55:9153/metrics
修改target配置：
# kubectl -n monitor get cm
NAME DATA AGE
kube-root-ca.crt 1 134m
prometheus-config 1 133m
$ kubectl -n monitor edit configmap prometheus-config
...
scrape_configs:
- job_name: 'prometheus'
static_configs:
- targets: ['localhost:9090']
- job_name: 'coredns' # 这块是添加的内容
static_configs:
- targets: ['10.244.0.55:9153']
# 检查容器里配置是否修改
# kubectl -n monitor exec prometheus-7d6799c84c-tg774 -- cat /etc/prometheus/prometheus.yml
# 等待30s左右，重启Prometheus进程
# kubectl -n monitor get po -owide
NAME READY STATUS RESTARTS AGE IP NODE
prometheus-7d6799c84c-tg774 1/1 Running 0 71m 10.244.1.99 k8s-slave1
[root@k8s-master prometheus]# curl -XPOST 10.244.1.99:9090/-/reload #软重启prometheus
[root@k8s-master prometheus]# kubectl -n monitor logs prometheus-7d6799c84c-tg774 #通过日志查看到重新加载了配置文件
level=info ts=2022-10-25T01:26:07.924Z caller=main.go:995 msg="Completed loading of configuration file" filename=/etc/prometheus/prometheus.yml totalDuration=681.616µs remote_storage=8.15µs web_handler=672ns query_engine=1.061µs scrape=304.223µs scrape_sd=41.035µs notify=27.57µs notify_sd=13.206µs rules=3.685µs
监控apiserver等系统组件¶
常用监控对象的指标采集¶
对于集群的监控一般我们需要考虑以下几个方面：
- 内部系统组件的状态：比如 kube-apiserver、kube-scheduler、kube-controller-manager、kubedns/coredns 等组件的详细运行状态
- Kubernetes 节点的监控：比如节点的 cpu、load、disk、memory 等指标
- 业务容器基础指标的监控（容器CPU、内存、磁盘等）, hpa ,kubelet, advistor
- 业务容器业务指标的监控，业务代码实现了/metrics的api，暴漏业务的指标
- 编排级的 metrics：比如 Deployment 的状态、资源请求、调度和 API 延迟等数据指标
监控kube-apiserver¶
apiserver自身也提供了/metrics 的api来提供监控数据
$ kubectl get svc
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
kubernetes ClusterIP 10.96.0.1 <none> 443/TCP 23d
$ kubectl -n monitor describe secret prometheus-token-pkzfx #获取token
eyJhbGciOiJSUzI1NiIsImtpZCI6Ik9VMi1HX3FFMlBUT193OUo3ZWI4eDh3aE9pc0dTYXMyQWRMNnRHNHJtMWsifQ.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJtb25pdG9yIiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9zZWNyZXQubmFtZSI6InByb21ldGhldXMtdG9rZW4tZzI1d2YiLCJrdWJlcm5ldGVzLmlvL3NlcnZpY2VhY2NvdW50L3NlcnZpY2UtYWNjb3VudC5uYW1lIjoicHJvbWV0aGV1cyIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VydmljZS1hY2NvdW50LnVpZCI6IjNiZmIxYjI0LWU1MzctNDI0ZS05MGQ3LTQyMTM2MTcyZTBkYiIsInN1YiI6InN5c3RlbTpzZXJ2aWNlYWNjb3VudDptb25pdG9yOnByb21ldGhldXMifQ.Yq5onkrUCRkUbF5NuMsjVmXo4DOC3tDHsTCcucaEITeAI3T67g-WWnnEPntCZgKA8-_0pAQUB0oyVWCOTzpOeHsVsLk0sU2Sdik6hvTARu__Ljwra1NRfEf8S_PJDFKsb6iYWCnMj4ximepWX2zpn5rPJqR2VZ-cDgxNrKMOUODgh1_r_zr7Zi9RXyGp7g4jVnxnfe4RXCCylq2WVeX0C5w5kpw2vfIq9HOWhip94sm00iffv7YOn4ACGXfQ0SLZRJyUMv7wXmksliFe85KTHMerqMBdaOf6dE3ylYoqMnQuKSQ5gCnLOWMcX2XjSZ7li1lPNvQntPePCGPG7mdImA
-----第二种获取token方法
# kubectl -n monitor get po
# kubectl -n monitor exec -ti prometheus-7d6799c84c-tg774 -- /bin/sh
Defaulted container "prometheus" out of: prometheus, change-permission-of-directory (init)
/prometheus $ df -h |grep service
tmpfs 2.1G 12.0K 2.1G 0% /var/run/secrets/kubernetes.io/serviceaccount
/prometheus $ cat /var/run/secrets/kubernetes.io/serviceaccount/token
eyJhbGciOiJSUzI1NiIsImtpZCI6Ik9VMi1HX3FFMlBUT193OUo3ZWI4eDh3aE9pc0dTYXMyQWRMNnRHNHJtMWsifQ.eyJhdWQiOlsiaHR0cHM6Ly9rdWJlcm5ldGVzLmRlZmF1bHQuc3ZjLmNsdXN0ZXIubG9jYWwiXSwiZXhwIjoxNjk4MjAyOTMyLCJpYXQiOjE2NjY2NjY5MzIsImlzcyI6Imh0dHBzOi8va3ViZXJuZXRlcy5kZWZhdWx0LnN2Yy5jbHVzdGVyLmxvY2FsIiwia3ViZXJuZXRlcy5pbyI6eyJuYW1lc3BhY2UiOiJtb25pdG9yIiwicG9kIjp7Im5hbWUiOiJwcm9tZXRoZXVzLTdkNjc5OWM4NGMtdGc3NzQiLCJ1aWQiOiI2ODg5ZTY1OC1kNjRiLTQwZjctYjVkNi1hNjc2YWMxNmVmNTgifSwic2VydmljZWFjY291bnQiOnsibmFtZSI6InByb21ldGhldXMiLCJ1aWQiOiIzYmZiMWIyNC1lNTM3LTQyNGUtOTBkNy00MjEzNjE3MmUwZGIifSwid2FybmFmdGVyIjoxNjY2NjcwNTM5fSwibmJmIjoxNjY2NjY2OTMyLCJzdWIiOiJzeXN0ZW06c2VydmljZWFjY291bnQ6bW9uaXRvcjpwcm9tZXRoZXVzIn0.Jh_l5odIF72yamDKO9nDQoTxX6QRSZkpLchNxIa7dA53FZgog-jSCToitSN2qJcB5-24q-JQ9F8ZezwhPU5IAbUVz9i2NalcFpooCIrjRaYaqpS8IOk3I9SvPIcwyQQn6iJryvFzRhaj9t5h0eC1UxHpvpX8ziQgrlEmCh_FBX1IMZ85hed3Is8sBdaZLVrImUcuIdL5aEW9fbnOQKOP3TgNQ-Y__K-inf9sfAypU7bciti-L6axbWAgXtX40CfB5WV1ApyBLopMVDl06UypN8JD3yRQPfsf-CZ49K7a_5f8H8MDGgW8Z4Vcbw0u9gJ7xYFLMpOnEaVPadndTL4T4A
$ curl -k -H "Authorization: Bearer eyJhbGciOiJSUzI1NiIsImtpZCI6Ik9VMi1HX3FFMlBUT193OUo3ZWI4eDh3aE9pc0dTYXMyQWRMNnRHNHJtMWsifQ.eyJhdWQiOlsiaHR0cHM6Ly9rdWJlcm5ldGVzLmRlZmF1bHQuc3ZjLmNsdXN0ZXIubG9jYWwiXSwiZXhwIjoxNjk4MjAyOTMyLCJpYXQiOjE2NjY2NjY5MzIsImlzcyI6Imh0dHBzOi8va3ViZXJuZXRlcy5kZWZhdWx0LnN2Yy5jbHVzdGVyLmxvY2FsIiwia3ViZXJuZXRlcy5pbyI6eyJuYW1lc3BhY2UiOiJtb25pdG9yIiwicG9kIjp7Im5hbWUiOiJwcm9tZXRoZXVzLTdkNjc5OWM4NGMtdGc3NzQiLCJ1aWQiOiI2ODg5ZTY1OC1kNjRiLTQwZjctYjVkNi1hNjc2YWMxNmVmNTgifSwic2VydmljZWFjY291bnQiOnsibmFtZSI6InByb21ldGhldXMiLCJ1aWQiOiIzYmZiMWIyNC1lNTM3LTQyNGUtOTBkNy00MjEzNjE3MmUwZGIifSwid2FybmFmdGVyIjoxNjY2NjcwNTM5fSwibmJmIjoxNjY2NjY2OTMyLCJzdWIiOiJzeXN0ZW06c2VydmljZWFjY291bnQ6bW9uaXRvcjpwcm9tZXRoZXVzIn0.Jh_l5odIF72yamDKO9nDQoTxX6QRSZkpLchNxIa7dA53FZgog-jSCToitSN2qJcB5-24q-JQ9F8ZezwhPU5IAbUVz9i2NalcFpooCIrjRaYaqpS8IOk3I9SvPIcwyQQn6iJryvFzRhaj9t5h0eC1UxHpvpX8ziQgrlEmCh_FBX1IMZ85hed3Is8sBdaZLVrImUcuIdL5aEW9fbnOQKOP3TgNQ-Y__K-inf9sfAypU7bciti-L6axbWAgXtX40CfB5WV1ApyBLopMVDl06UypN8JD3yRQPfsf-CZ49K7a_5f8H8MDGgW8Z4Vcbw0u9gJ7xYFLMpOnEaVPadndTL4T4A" https://10.96.0.1:6443/metrics #拒接链接 端口给成443可以
[root@k8s-master prometheus]# kubectl describe svc kubernetes
Name: kubernetes
Namespace: default
Labels: component=apiserver
provider=kubernetes
Annotations: <none>
Selector: <none>
Type: ClusterIP
IP Family Policy: SingleStack
IP Families: IPv4
IP: 10.96.0.1
IPs: 10.96.0.1
Port: https 443/TCP
TargetPort: 6443/TCP
Endpoints: 10.211.55.25:6443
Session Affinity: None
Events: <none>
curl -k -H "Authorization: Bearer eyJhbGciOiJSUzI1NiIsImtpZCI6Ik9VMi1HX3FFMlBUT193OUo3ZWI4eDh3aE9pc0dTYXMyQWRMNnRHNHJtMWsifQ.eyJhdWQiOlsiaHR0cHM6Ly9rdWJlcm5ldGVzLmRlZmF1bHQuc3ZjLmNsdXN0ZXIubG9jYWwiXSwiZXhwIjoxNjk4MjAyOTMyLCJpYXQiOjE2NjY2NjY5MzIsImlzcyI6Imh0dHBzOi8va3ViZXJuZXRlcy5kZWZhdWx0LnN2Yy5jbHVzdGVyLmxvY2FsIiwia3ViZXJuZXRlcy5pbyI6eyJuYW1lc3BhY2UiOiJtb25pdG9yIiwicG9kIjp7Im5hbWUiOiJwcm9tZXRoZXVzLTdkNjc5OWM4NGMtdGc3NzQiLCJ1aWQiOiI2ODg5ZTY1OC1kNjRiLTQwZjctYjVkNi1hNjc2YWMxNmVmNTgifSwic2VydmljZWFjY291bnQiOnsibmFtZSI6InByb21ldGhldXMiLCJ1aWQiOiIzYmZiMWIyNC1lNTM3LTQyNGUtOTBkNy00MjEzNjE3MmUwZGIifSwid2FybmFmdGVyIjoxNjY2NjcwNTM5fSwibmJmIjoxNjY2NjY2OTMyLCJzdWIiOiJzeXN0ZW06c2VydmljZWFjY291bnQ6bW9uaXRvcjpwcm9tZXRoZXVzIn0.Jh_l5odIF72yamDKO9nDQoTxX6QRSZkpLchNxIa7dA53FZgog-jSCToitSN2qJcB5-24q-JQ9F8ZezwhPU5IAbUVz9i2NalcFpooCIrjRaYaqpS8IOk3I9SvPIcwyQQn6iJryvFzRhaj9t5h0eC1UxHpvpX8ziQgrlEmCh_FBX1IMZ85hed3Is8sBdaZLVrImUcuIdL5aEW9fbnOQKOP3TgNQ-Y__K-inf9sfAypU7bciti-L6axbWAgXtX40CfB5WV1ApyBLopMVDl06UypN8JD3yRQPfsf-CZ49K7a_5f8H8MDGgW8Z4Vcbw0u9gJ7xYFLMpOnEaVPadndTL4T4A" https://10.211.55.25:6443/metrics
可以通过手动配置如下job来试下对apiserver服务的监控，
$ kubectl -n monitor edit configmap prometheus-config
...
- job_name: 'kubernetes-apiserver'
static_configs:
- targets: ['10.96.0.1']
scheme: https
tls_config:
ca_file: /var/run/secrets/kubernetes.io/serviceaccount/ca.crt
insecure_skip_verify: true
bearer_token_file: /var/run/secrets/kubernetes.io/serviceaccount/token
# 查看修改的配置是否更新上去
# kubectl -n monitor exec prometheus-7d6799c84c-tg774 -- cat /etc/prometheus/prometheus.yml
# curl -XPOST 10.244.1.99:9090/-/reload #软重启prometheus
宿主机指标¶
监控集群节点基础指标¶
node_exporter https://github.com/prometheus/node_exporter
分析：
- 每个节点都需要监控，因此可以使用DaemonSet类型来管理node_exporter
- 添加节点的容忍配置
- 挂载宿主机中的系统文件信息
cat > node-exporter.ds.yaml <<\EOF
apiVersion: apps/v1
kind: DaemonSet
metadata:
name: node-exporter
namespace: monitor
labels:
app: node-exporter
spec:
selector:
matchLabels:
app: node-exporter
template:
metadata:
labels:
app: node-exporter
spec:
hostPID: true
hostIPC: true
hostNetwork: true
nodeSelector:
kubernetes.io/os: linux
containers:
- name: node-exporter
image: prom/node-exporter:v1.0.1
args:
- --web.listen-address=$(HOSTIP):9100
- --path.procfs=/host/proc
- --path.sysfs=/host/sys
- --path.rootfs=/host/root
- --collector.filesystem.ignored-mount-points=^/(dev|proc|sys|var/lib/docker/.+)($|/)
- --collector.filesystem.ignored-fs-types=^(autofs|binfmt_misc|cgroup|configfs|debugfs|devpts|devtmpfs|fusectl|hugetlbfs|mqueue|overlay|proc|procfs|pstore|rpc_pipefs|securityfs|sysfs|tracefs)$
ports:
- containerPort: 9100
env:
- name: HOSTIP
valueFrom:
fieldRef:
fieldPath: status.hostIP
resources:
requests:
cpu: 150m
memory: 180Mi
limits:
cpu: 150m
memory: 180Mi
securityContext:
runAsNonRoot: true
runAsUser: 65534
volumeMounts:
- name: proc
mountPath: /host/proc
- name: sys
mountPath: /host/sys
- name: root
mountPath: /host/root
mountPropagation: HostToContainer
readOnly: true
tolerations:
- operator: "Exists"
volumes:
- name: proc
hostPath:
path: /proc
- name: dev
hostPath:
path: /dev
- name: sys
hostPath:
path: /sys
- name: root
hostPath:
path: /
EOF
创建node-exporter服务
$ kubectl apply -f node-exporter.ds.yaml
[root@k8s-master ~]# kubectl -n monitor get po -owide
NAME READY STATUS RESTARTS AGE IP NODE
node-exporter-mvclp 1/1 Running 0 14m 10.211.55.27 k8s-slave2
node-exporter-q8l76 1/1 Running 0 14m 10.211.55.25 k8s-master
node-exporter-zzshw 1/1 Running 0 14m 10.211.55.26 k8s-slave1
prometheus-7d6799c84c-tg774 1/1 Running 0 6h57m 10.244.1.99 k8s-slave1
$ curl 10.211.55.26:9100/metrics
问题来了，如何添加到Prometheus的target中？
- 配置一个Service，后端挂载node-exporter的服务，把Service的地址配置到target中
- 带来新的问题，target中无法直观的看到各节点node-exporter的状态
- 把每个node-exporter的服务都添加到target列表中
- 带来新的问题，集群节点的增删，都需要手动维护列表
- target列表维护量随着集群规模增加
服务发现和Relabeling¶
Prometheus的服务发现与Relabeling¶
之前已经给Prometheus配置了RBAC，有读取node的权限，因此Prometheus可以去调用Kubernetes API获取node信息，所以Prometheus通过与 Kubernetes API 集成，提供了内置的服务发现分别是：Node、Service、Pod、Endpoints、Ingress
配置job即可：
# kubectl -n monitor edit cm prometheus-config
.... 下面增加内容
- job_name: 'kubernetes-sd-node-exporter'
kubernetes_sd_configs:
- role: node
# 查看修改的配置是否更新上去
# kubectl -n monitor exec prometheus-7d6799c84c-tg774 -- cat /etc/prometheus/prometheus.yml
# curl -XPOST 10.244.1.99:9090/-/reload #软重启prometheus
重新reload后查看效果：

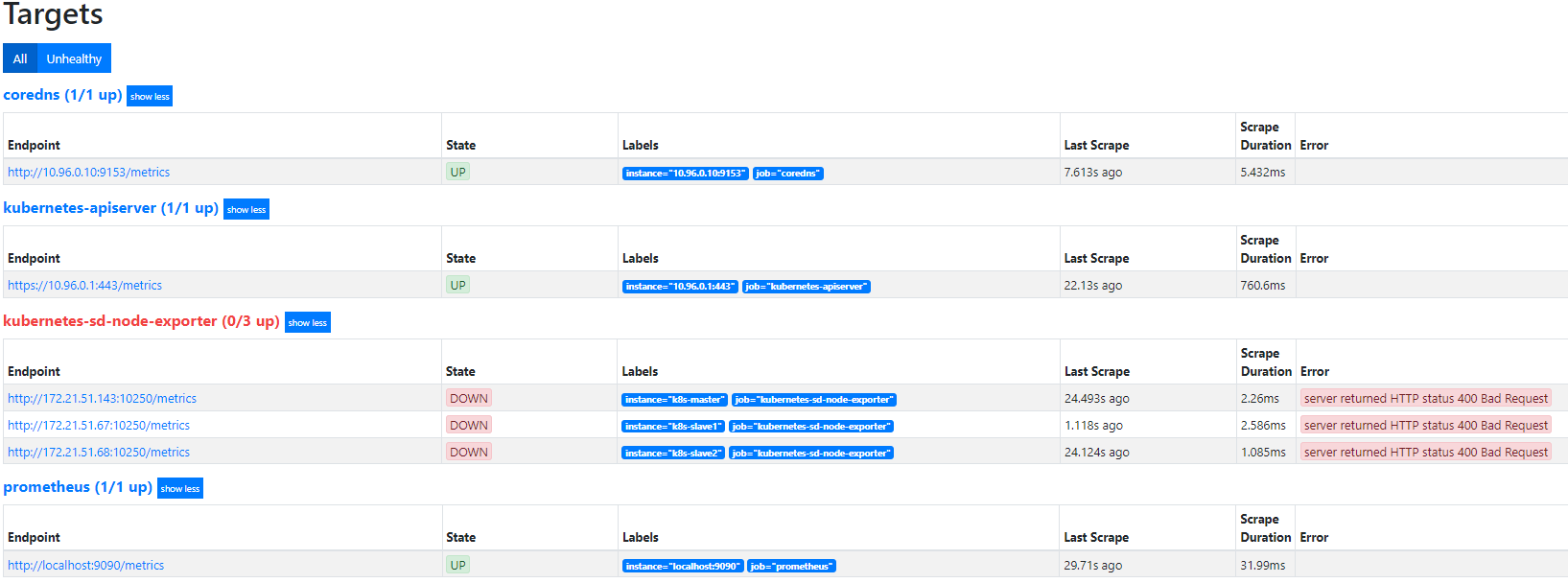

默认访问的地址是http://node-ip/10250/metrics，10250是kubelet API的服务端口，说明Prometheus的node类型的服务发现模式，默认是和kubelet的10250绑定的，而我们是期望使用node-exporter作为采集的指标来源，因此需要把访问的endpoint替换成http://node-ip:9100/metrics。
在真正抓取数据前，Prometheus提供了relabeling的能力。怎么理解？
查看Target的Label列，可以发现，每个target对应会有很多Before Relabeling的标签，这些__开头的label是系统内部使用，不会存储到样本的数据里，但是，我们在查看数据的时候，可以发现，每个数据都有两个默认的label，即：
instance的值其实则取自于__address__

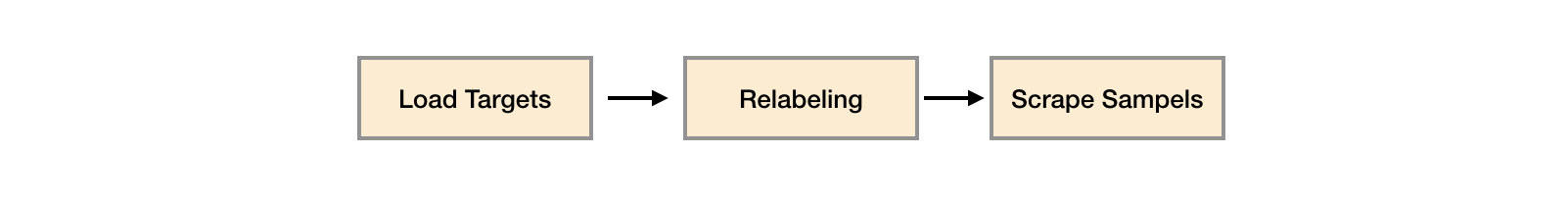

这种发生在采集样本数据之前，对Target实例的标签进行重写的机制在Prometheus被称为Relabeling。
因此，利用relabeling的能力，只需要将__address__替换成node_exporter的服务地址即可。
# kubectl -n monitor edit cm prometheus-config
.... 下面增加内容
- job_name: 'kubernetes-sd-node-exporter'
kubernetes_sd_configs:
- role: node
relabel_configs:
- source_labels: [__address__]
regex: '(.*):10250'
replacement: '${1}:9100'
target_label: __address__
action: replace
# 查看修改的配置是否更新上去
# kubectl -n monitor exec prometheus-7d6799c84c-tg774 -- cat /etc/prometheus/prometheus.yml
# curl -XPOST 10.244.1.99:9090/-/reload #软重启prometheus
再次更新Prometheus服务后，查看targets列表及node-exporter提供的指标，node_load1
容器指标采集¶
使用cadvisor实现容器指标的采集（新）¶
目前cAdvisor集成到了kubelet组件内 ，因此可以通过kubelet的接口实现容器指标的采集，具体的API为:
https://<node-ip>:10250/metrics/cadvisor # node上的cadvisor采集到的容器指标
https://<node-ip>:10250/metrics # node上的kubelet的指标数据
# 可以通过curl -k -H "Authorization: Bearer xxxx" https://xxxx/xx查看
因此，针对容器指标来讲，我们期望的采集target是：
https://172.21.51.143:10250/metrics/cadvisor
https://172.21.51.67:10250/metrics/cadvisor
https://172.21.51.68:10250/metrics/cadvisor
即每个node节点都需要去采集数据，联想到prometheus的服务发现中的node类型，因此，配置：
默认添加的target列表为：__schema__://__address__ __metrics_path__
http://172.21.51.143:10250/metrics
http://172.21.51.67:10250/metrics
http://172.21.51.68:10250/metrics
和期望值不同的是__schema__和__metrics_path__，针对__metrics_path__可以使用relabel修改：
针对__schema__：
# kubectl -n monitor edit cm prometheus-config
.... 下面增加内容
- job_name: 'kubernetes-sd-cadvisor'
kubernetes_sd_configs:
- role: node
scheme: https
tls_config:
ca_file: /var/run/secrets/kubernetes.io/serviceaccount/ca.crt
insecure_skip_verify: true
bearer_token_file: /var/run/secrets/kubernetes.io/serviceaccount/token
relabel_configs:
- target_label: __metrics_path__
replacement: /metrics/cadvisor
# 查看修改的配置是否更新上去
# kubectl -n monitor exec prometheus-7d6799c84c-tg774 -- cat /etc/prometheus/prometheus.yml
# curl -XPOST 10.244.1.99:9090/-/reload #软重启prometheus
重新应用配置，然后重建Prometheus的pod。查看targets列表，查看cadvisor指标，比如container_cpu_system_seconds_total，container_memory_usage_bytes
综上，利用node类型的服务发现，可以实现对daemonset类型服务的目标自动发现以及监控数据抓取。
补充：
若想采集kubelet的指标：
# kubectl -n monitor edit cm prometheus-config
.... 下面增加内容
- job_name: 'kubernetes-sd-kubelet'
kubernetes_sd_configs:
- role: node
scheme: https
tls_config:
ca_file: /var/run/secrets/kubernetes.io/serviceaccount/ca.crt
insecure_skip_verify: true
bearer_token_file: /var/run/secrets/kubernetes.io/serviceaccount/token
# 查看修改的配置是否更新上去
# kubectl -n monitor exec prometheus-7d6799c84c-tg774 -- cat /etc/prometheus/prometheus.yml
# curl -XPOST 10.244.1.99:9090/-/reload #软重启prometheus
K8s Service服务监控指标采集¶
集群Service服务的监控指标采集¶
比如集群中存在100个业务应用，每个业务应用都需要被Prometheus监控。
每个服务是不是都需要手动添加配置？有没有更好的方式？
- job_name: 'kubernetes-sd-endpoints'
kubernetes_sd_configs:
- role: endpoints
# kubectl -n monitor edit cm prometheus-config
# 查看修改的配置是否更新上去
# kubectl -n monitor exec prometheus-7d6799c84c-6mvn7 -- cat /etc/prometheus/prometheus.yml
# curl -XPOST 10.244.0.75:9090/-/reload
[root@k8s-master ~]# kubectl get ep -A #并不是所有endpoint都实现了metrics接口
NAMESPACE NAME ENDPOINTS AGE
default kubernetes 10.211.55.25:6443 15d
default nginx <none> 43h
kube-system kube-dns 10.244.0.74:53,10.244.0.76:53,10.244.0.74:53 + 3 more... 15d
kube-system metrics-server 10.244.0.80:4443 6d11h
kubernetes-dashboard dashboard-metrics-scraper <none> 7d5h
kubernetes-dashboard kubernetes-dashboard <none> 7d5h
logging es-svc <none> 39h
logging es-svc-headless <none> 39h
logging kibana 10.244.0.82:5601 29h
luffy myblog <none> 6d4h
luffy mysql <none> 6d4h
monitor prometheus 10.244.0.75:9090 12h
nfs-provisioner luffy.com-nfs <none> 4d19h

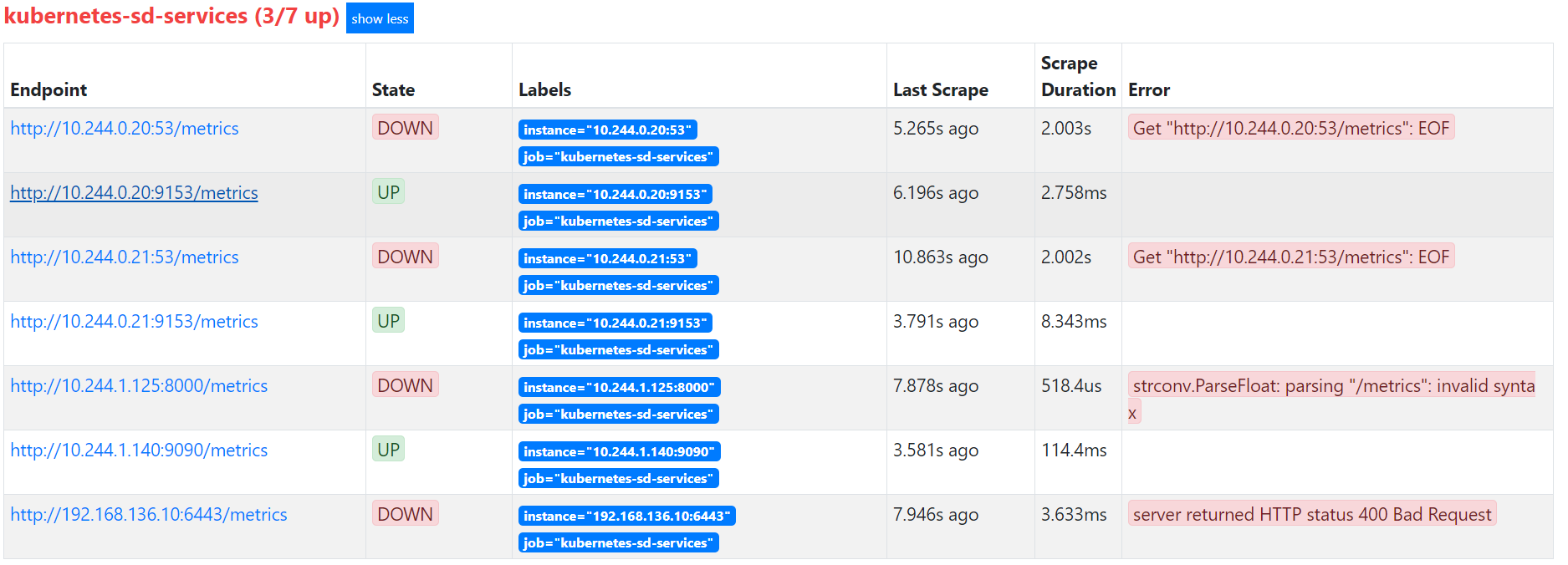

reload prometheush，此使的Target列表中，kubernetes-sd-endpoints下出现了N多条数据，
可以发现，实际上endpoint这个类型，目标是去抓取整个集群中所有的命名空间的Endpoint列表，然后使用默认的/metrics进行数据抓取，我们可以通过查看集群中的所有ep列表来做对比：
但是实际上并不是每个服务都已经实现了/metrics监控的，也不是每个实现了/metrics接口的服务都需要注册到Prometheus中，因此，我们需要一种方式对需要采集的服务实现自主可控。这就需要利用relabeling中的keep功能。
我们知道，relabel的作用对象是target的Before Relabling标签，比如说，假如通过如下定义:
- job_name: 'kubernetes-sd-endpoints'
kubernetes_sd_configs:
- role: endpoints
relabel_configs:
- source_labels: [__meta_kubernetes_service_annotation_prometheus_io_scrape]
action: keep
regex: true
# kubectl -n monitor edit cm prometheus-config
# 查看修改的配置是否更新上去
# kubectl -n monitor exec prometheus-7d6799c84c-6mvn7 -- cat /etc/prometheus/prometheus.yml
# curl -XPOST 10.244.0.75:9090/-/reload
那么就可以实现target的Before Relabling中若存在__meta_kubernetes_service_annotation_prometheus_io_scrape，且值为true的话，则会加入到kubernetes-sd-endpoints这个target中，否则就会被删除。
因此可以为我们期望被采集的服务，加上对应的Prometheus的label即可。
问题来了，怎么加？
查看coredns的metrics类型Before Relabling中的值，可以发现，存在如下类型的Prometheus的标签：
__meta_kubernetes_service_annotation_prometheus_io_scrape="true"
__meta_kubernetes_service_annotation_prometheus_io_port="9153"
这些内容是如何生成的呢，查看coredns对应的服务属性：
$ kubectl -n kube-system get service kube-dns -oyaml
apiVersion: v1
kind: Service
metadata:
annotations:
prometheus.io/port: "9153"
prometheus.io/scrape: "true"
creationTimestamp: "2021-06-06T02:39:44Z"
labels:
k8s-app: kube-dns
kubernetes.io/cluster-service: "true"
kubernetes.io/name: KubeDNS
name: kube-dns
namespace: kube-system
...
发现存在annotations声明，因此，可以联想到二者存在对应关系，Service的定义中的annotations里的特殊字符会被转换成Prometheus中的label中的下划线。
我们即可以使用如下配置，来定义服务是否要被抓取监控数据。
- job_name: 'kubernetes-sd-endpoints'
kubernetes_sd_configs:
- role: endpoints
relabel_configs:
- source_labels: [__meta_kubernetes_service_annotation_prometheus_io_scrape]
action: keep
regex: true
# kubectl -n monitor edit cm prometheus-config
# 查看修改的配置是否更新上去
# kubectl -n monitor exec prometheus-7d6799c84c-6mvn7 -- cat /etc/prometheus/prometheus.yml
# curl -XPOST 10.244.0.75:9090/-/reload
这样的话，我们只需要为服务定义上如下的声明，即可实现Prometheus自动采集数据
有些时候，我们业务应用提供监控数据的path地址并不一定是/metrics，如何实现兼容？
同样的思路，我们知道，Prometheus会默认使用Before Relabling中的__metrics_path作为采集路径，因此，我们再自定义一个annotation，prometheus.io/path
annotations:
prometheus.io/scrape: "true"
prometheus.io/path: "/path/to/metrics" #增加内容
# kubectl edit svc details
这样，Prometheus端会自动生成如下标签：
我们只需要在relabel_configs中用该标签的值，去重写__metrics_path__的值即可。因此：
- job_name: 'kubernetes-sd-endpoints'
kubernetes_sd_configs:
- role: endpoints
relabel_configs:
- source_labels: [__meta_kubernetes_service_annotation_prometheus_io_scrape]
action: keep
regex: true
- source_labels: [__meta_kubernetes_service_annotation_prometheus_io_path]
action: replace
target_label: __metrics_path__
regex: (.+)
# kubectl -n monitor edit cm prometheus-config
# 查看修改的配置是否更新上去
# kubectl -n monitor exec prometheus-7d6799c84c-6mvn7 -- cat /etc/prometheus/prometheus.yml
# curl -XPOST 10.244.0.75:9090/-/reload
有些时候，业务服务的metrics是独立的端口，比如coredns，业务端口是53，监控指标采集端口是9153，这种情况，如何处理？
很自然的，我们会想到通过自定义annotation来处理，
annotations:
prometheus.io/scrape: "true"
prometheus.io/path: "/path/to/metrics"
prometheus.io/port: "9153"
如何去替换？
我们知道Prometheus默认使用Before Relabeling中的__address__进行作为服务指标采集的地址，但是该地址的格式通常是这样的
我们的目标是将如下两部分拼接在一起：
- 10.244.0.20
- prometheus.io/port定义的值，即
__meta_kubernetes_service_annotation_prometheus_io_port的值
因此，需要使用正则规则取出上述两部分：
- source_labels: [__address__, __meta_kubernetes_service_annotation_prometheus_io_port]
action: replace
target_label: __address__
regex: ([^:]+)(?::\d+)?;(\d+)
replacement: $1:$2
# kubectl -n monitor edit cm prometheus-config
# 查看修改的配置是否更新上去
# kubectl -n monitor exec prometheus-7d6799c84c-6mvn7 -- cat /etc/prometheus/prometheus.yml
# curl -XPOST 10.244.0.75:9090/-/reload
# kubectl -n monitor edit cm prometheus-config # 删除掉coredns
- job_name: 'coredns'
static_configs:
- targets: ['10.244.0.55:9153']
# 查看修改的配置是否更新上去
# kubectl -n monitor exec prometheus-7d6799c84c-6mvn7 -- cat /etc/prometheus/prometheus.yml
# curl -XPOST 10.244.0.75:9090/-/reload
需要注意的几点：
__address__中的:<port>有可能不存在，因此，使用()?的匹配方式进行- 表达式中，三段
()我们只需要第一和第三段，不需要中间括号部分的内容，因此使用?:的方式来做非获取匹配，即可以匹配内容，但是不会被记录到$1,$2这种变量中 - 多个source_labels中间默认使用
;号分割，因此匹配的时候需要注意添加;号
此外，还可以将before relabeling 中的更多常用的字段取出来添加到目标的label中，比如：
- source_labels: [__meta_kubernetes_namespace]
action: replace
target_label: kubernetes_namespace
- source_labels: [__meta_kubernetes_service_name]
action: replace
target_label: kubernetes_service_name
- source_labels: [__meta_kubernetes_pod_name]
action: replace
target_label: kubernetes_pod_name
因此，目前的relabel的配置如下：
- job_name: 'kubernetes-sd-endpoints'
kubernetes_sd_configs:
- role: endpoints
relabel_configs:
- source_labels: [__meta_kubernetes_service_annotation_prometheus_io_scrape]
action: keep
regex: true
- source_labels: [__meta_kubernetes_service_annotation_prometheus_io_path]
action: replace
target_label: __metrics_path__
regex: (.+)
- source_labels: [__address__, __meta_kubernetes_service_annotation_prometheus_io_port]
action: replace
target_label: __address__
regex: ([^:]+)(?::\d+)?;(\d+)
replacement: $1:$2
- source_labels: [__meta_kubernetes_namespace]
action: replace
target_label: kubernetes_namespace
- source_labels: [__meta_kubernetes_service_name]
action: replace
target_label: kubernetes_service_name
- source_labels: [__meta_kubernetes_pod_name]
action: replace
target_label: kubernetes_pod_name
验证一下：
更新configmap并重启Prometheus服务，查看target列表。
kube-state-metrics监控¶
kube-state-metrics监控¶
已经有了cadvisor，容器运行的指标已经可以获取到，但是下面这种情况却无能为力：
- 我调度了多少个replicas？现在可用的有几个？
- 多少个Pod是running/stopped/terminated状态？
- Pod重启了多少次？
而这些则是kube-state-metrics提供的内容，它基于client-go开发，轮询Kubernetes API，并将Kubernetes的结构化信息转换为metrics。因此，需要借助于kube-state-metrics来实现。
指标类别包括：
- CronJob Metrics
- DaemonSet Metrics
- Deployment Metrics
- Job Metrics
- LimitRange Metrics
- Node Metrics
- PersistentVolume Metrics
- PersistentVolumeClaim Metrics
- Pod Metrics
- kube_pod_info
- kube_pod_owner
- kube_pod_status_phase
- kube_pod_status_ready
- kube_pod_status_scheduled
- kube_pod_container_status_waiting
- kube_pod_container_status_terminated_reason
- ...
- Pod Disruption Budget Metrics
- ReplicaSet Metrics
- ReplicationController Metrics
- ResourceQuota Metrics
- Service Metrics
- StatefulSet Metrics
- Namespace Metrics
- Horizontal Pod Autoscaler Metrics
- Endpoint Metrics
- Secret Metrics
- ConfigMap Metrics
部署： https://github.com/kubernetes/kube-state-metrics#kubernetes-deployment
$ wget https://github.com/kubernetes/kube-state-metrics/archive/v2.1.0.tar.gz
$ tar zxf v2.1.0.tar.gz
$ cp -r kube-state-metrics-2.1.0/examples/standard/ .
$ ll standard/
total 20
-rw-r--r-- 1 root root 376 Jun 24 20:49 cluster-role-binding.yaml
-rw-r--r-- 1 root root 1623 Jun 24 20:49 cluster-role.yaml
-rw-r--r-- 1 root root 1134 Jun 24 20:49 deployment.yaml
-rw-r--r-- 1 root root 192 Jun 24 20:49 service-account.yaml
-rw-r--r-- 1 root root 405 Jun 24 20:49 service.yaml
# 替换namespace为monitor
$ sed -i 's/namespace: kube-system/namespace: monitor/g' standard/*
# 替换镜像地址为image: bitnami/kube-state-metrics:2.1.0
$ sed -i 's#k8s.gcr.io/kube-state-metrics/kube-state-metrics:v2.1.0#bitnami/kube-state-metrics:2.1.0#g' standard/deployment.yaml
$ kubectl apply -f standard/
clusterrolebinding.rbac.authorization.k8s.io/kube-state-metrics created
clusterrole.rbac.authorization.k8s.io/kube-state-metrics created
deployment.apps/kube-state-metrics created
serviceaccount/kube-state-metrics created
service/kube-state-metrics created
# kubectl -n monitor get po
# kubectl -n monitor get svc
# kubectl -n monitor get ep
NAME ENDPOINTS AGE
kube-state-metrics 10.244.1.113:8081,10.244.1.113:8080 2m14s
prometheus 10.244.0.75:9090 14h
# curl 10.244.1.113:8080/metrics
如何添加到Prometheus监控target中？
$ cat standard/service.yaml
apiVersion: v1
kind: Service
metadata:
annotations:
prometheus.io/scrape: "true" #添加
prometheus.io/port: "8080" #添加
labels:
app.kubernetes.io/name: kube-state-metrics
app.kubernetes.io/version: 2.1.0
name: kube-state-metrics
namespace: monitor
spec:
clusterIP: None
ports:
- name: http-metrics
port: 8080
targetPort: http-metrics
- name: telemetry
port: 8081
targetPort: telemetry
selector:
app.kubernetes.io/name: kube-state-metrics
$ kubectl apply -f standard/service.yaml
# 或者直接在线编辑
# kubectl -n monitor edit svc kube-state-metrics
查看target列表，观察是否存在kube-state-metrics的target。
kube_pod_container_status_running
kube_deployment_status_replicas
kube_deployment_status_replicas_unavailable
Grafana安装¶
Grafana¶
可视化面板，功能齐全的度量仪表盘和图形编辑器，支持 Graphite、zabbix、InfluxDB、Prometheus、OpenTSDB、Elasticsearch 等作为数据源，比 Prometheus 自带的图表展示功能强大太多，更加灵活，有丰富的插件，功能更加强大。
安装¶
注意点：
- 使用最新版本的镜像 https://github.com/grafana/grafana
- 通过环境变量设置管理员账户密码
- GF_SECURITY_ADMIN_USER
- GF_SECURITY_ADMIN_PASSWORD
- 通过设置securityContext的方式让grafana进程使用root启动
- 数据挂载到本地
- 配置ingress暴露访问入口
cat > grafana-all.yaml <<EOF
kind: PersistentVolumeClaim
apiVersion: v1
metadata:
name: grafana
namespace: monitor
spec:
accessModes:
- ReadWriteOnce
storageClassName: nfs
resources:
requests:
storage: 200Gi
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: grafana
namespace: monitor
spec:
selector:
matchLabels:
app: grafana
template:
metadata:
labels:
app: grafana
spec:
volumes:
- name: storage
persistentVolumeClaim:
claimName: grafana
securityContext:
runAsUser: 0
containers:
- name: grafana
image: grafana/grafana:7.5.9
imagePullPolicy: IfNotPresent
ports:
- containerPort: 3000
name: grafana
env:
- name: GF_SECURITY_ADMIN_USER
value: admin
- name: GF_SECURITY_ADMIN_PASSWORD
value: admin
readinessProbe:
failureThreshold: 10
httpGet:
path: /api/health
port: 3000
scheme: HTTP
initialDelaySeconds: 60
periodSeconds: 10
successThreshold: 1
timeoutSeconds: 30
livenessProbe:
failureThreshold: 3
httpGet:
path: /api/health
port: 3000
scheme: HTTP
periodSeconds: 10
successThreshold: 1
timeoutSeconds: 1
resources:
limits:
cpu: 150m
memory: 512Mi
requests:
cpu: 150m
memory: 512Mi
volumeMounts:
- mountPath: /var/lib/grafana
name: storage
---
apiVersion: v1
kind: Service
metadata:
name: grafana
namespace: monitor
spec:
type: ClusterIP
ports:
- port: 3000
selector:
app: grafana
---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: grafana
namespace: monitor
spec:
rules:
- host: grafana.luffy.com
http:
paths:
- path: /
pathType: Prefix
backend:
service:
name: grafana
port:
number: 3000
EOF
[root@k8s-master prometheus]# kubectl apply -f grafana-all.yaml
[root@k8s-master prometheus]# kubectl -n monitor get ing
NAME CLASS HOSTS ADDRESS PORTS AGE
grafana <none> grafana.luffy.com 80 30s
prometheus <none> prometheus.luffy.com 80 22h
[root@k8s-master prometheus]# kubectl -n monitor get po
# 宿主机配置hosts
$ sudo vi /etc/hosts
10.211.55.25 wordpress.luffy.com harbor.luffy.com kibana.luffy.com prometheus.luffy.com grafana.luffy.com
配置数据源：
[root@k8s-master prometheus]# kubectl -n monitor get svc
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
grafana ClusterIP 10.98.138.48 <none> 3000/TCP 5m53s
kube-state-metrics ClusterIP None <none> 8080/TCP,8081/TCP 8h
prometheus ClusterIP 10.96.235.6 <none> 9090/TCP 22h
如何丰富Grafana监控面板：
- 导入dashboard
- 安装相应的插件
- 自定义监控面板
完善监控面板¶
导入Dashboard的配置¶
dashboard： https://grafana.com/grafana/dashboards
- Node Exporter https://grafana.com/grafana/dashboards/8919
- Kubenetes： https://grafana.com/grafana/dashboards/8588 废弃
- Kubenetes： https://grafana.com/grafana/dashboards/13105
DevOpsProdigy KubeGraf插件的使用¶
除了直接导入Dashboard，我们还可以通过安装插件的方式获得，Configuration -> Plugins可以查看已安装的插件，通过 官方插件列表 我们可以获取更多可用插件。
Kubernetes相关的插件：
DevOpsProdigy KubeGraf 是一个非常优秀的 Grafana Kubernetes 插件，是 Grafana 官方的 Kubernetes 插件的升级版本，该插件可以用来可视化和分析 Kubernetes 集群的性能，通过各种图形直观的展示了 Kubernetes 集群的主要服务的指标和特征，还可以用于检查应用程序的生命周期和错误日志。
# 进入grafana容器内部执行安装
$ kubectl -n monitor exec -ti grafana-594f447d6c-jmjsw -- bash
bash-5.0# grafana-cli plugins install devopsprodigy-kubegraf-app 1.5.2
installing devopsprodigy-kubegraf-app @ 1.5.2
from: https://grafana.com/api/plugins/devopsprodigy-kubegraf-app/versions/1.5.2/download
into: /var/lib/grafana/plugins
✔ Installed devopsprodigy-kubegraf-app successfully
Restart grafana after installing plugins . <service grafana-server restart>
# 也可以下载离线包进行安装
# 重建pod生效
$ kubectl -n monitor delete po grafana-594f447d6c-jmjsw
# kubectl -n monitor get po
登录grafana界面，Configuration -> Plugins 中找到安装的插件，点击插件进入插件详情页面，点击 [Enable]按钮启用插件，点击 Set up your first k8s-cluster 创建一个新的 Kubernetes 集群:
- Name：luffy-k8s
- URL：https://kubernetes.default:443
- Access：使用默认的Server(default)
- Skip TLS Verify：勾选，跳过证书合法性校验
- Auth：勾选TLS Client Auth以及With CA Cert，勾选后会下面有三块证书内容需要填写，内容均来自
~/.kube/config文件，需要对文件中的内容做一次base64 解码 - CA Cert：使用config文件中的
certificate-authority-data对应的内容 - Client Cert：使用config文件中的
client-certificate-data对应的内容 - Client Key：使用config文件中的
client-key-data对应的内容
[root@k8s-master prometheus]# cat ~/.kube/config
apiVersion: v1
clusters:
- cluster:
certificate-authority-data: LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSUM1ekNDQWMrZ0F3SUJBZ0lCQURBTkJna3Foa2lHOXcwQkFRc0ZBREFWTVJNd0VRWURWUVFERXdwcmRXSmwKY201bGRHVnpNQjRYRFRJeU1UQXhNREF6TURjek0xb1hEVE15TVRBd056QXpNRGN6TTFvd0ZURVRNQkVHQTFVRQpBeE1LYTNWaVpYSnVaWFJsY3pDQ0FTSXdEUVlKS29aSWh2Y05BUUVCQlFBRGdnRVBBRENDQVFvQ2dnRUJBTFI5CldQazUvRFYyZTJZWEx0NUcySW03ajNoSGRrSndiTUVqRFFLd1FyMXZNVUc0WWw4dmQxMk9odjIvYkRHUlh6T0sKRTR6ZEhRVEZKV1dLRTNhSHJYcGpUSnBuOWNBc2YxN2VFcy9RWHczVk03bmllZzIxY204bjc4akRUaTdaQUI0ZApmTWRYNmJscWx3U05LOGc0RUV5L1BFZjhjdzhOY25oTjZGSkJzc3p6MTMzVkFFM0w5QWVuUlppUklFNDNnaEhaCkJQRFY4aEpkQ3cyMDlTaHBranNvRXM1YWJyL3JQV1F6OVgvdzRlNGgyU1FXb2xXUERQckdIeStqeDloa2RkMDQKa1EvYnZaOEdFZDl3aWhaYXNvelA0VmNOYk5UR0ZQbmpNUjM0dkE0U3BTQ2U1VFZWZkQ0ZitFRW9IM3NET25vbgpldGM3NldsSUpkMkY3Q2Q3ZWpFQ0F3RUFBYU5DTUVBd0RnWURWUjBQQVFIL0JBUURBZ0trTUE4R0ExVWRFd0VCCi93UUZNQU1CQWY4d0hRWURWUjBPQkJZRUZJSGlTWFZDNXRXRmJZWUwxdm1ya3VjMlJseVNNQTBHQ1NxR1NJYjMKRFFFQkN3VUFBNElCQVFCL2NZMVFtd3ZZN09EeDQ1WVcveExTRWlmcTRvc08xTFF6bXdJcFBodW5FWEFoa3NWcAp3bkdCL3JTdjhjNzVwOVhmUG1pWTNNaXJpNENIU1lRSnBXWGY0YUZ1ZDJ0MnNvVmdkTkNGeE50QlNzU1NBY1JmCk5LdkJLZzZtS1YxUUEvaG5HbklMU1Rhd2YxdGdrVERMNmEwQTkzSk1NMENZNWRwK084RnhDOEN3RFlWelRCQXoKa3RIS3p1RU9QbCszWGhSSFJldGJjUHM1L2pPbVBicmZHK1JReWhtSmJhZE5BRGV2QVBFZnNhajFQVTNWTU1DVQpVWFlDc2JMU1ZaSEhRT2Yyd202L0JBWS93Zkdaclo1OXpVUndUZnFJSTd4Q2R3Qnc4ZG5CL24rcDhtQUs3SnFUCkZwYWZPdUgralRxQnlJR0VSWUFPRzhwVS9NQkpHckphRjM2ZQotLS0tLUVORCBDRVJUSUZJQ0FURS0tLS0tCg==
server: https://10.211.55.25:6443
name: kubernetes
contexts:
- context:
cluster: kubernetes
user: kubernetes-admin
name: kubernetes-admin@kubernetes
current-context: kubernetes-admin@kubernetes
kind: Config
preferences: {}
users:
- name: kubernetes-admin
user:
client-certificate-data: LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSUM4ekNDQWR1Z0F3SUJBZ0lKQUp5dWdZbEdzTXMwTUEwR0NTcUdTSWIzRFFFQkN3VUFNQlV4RXpBUkJnTlYKQkFNVENtdDFZbVZ5Ym1WMFpYTXdIaGNOTWpJeE1ERXdNRFV4TlRJMVdoY05Nekl4TURBM01EVXhOVEkxV2pBMApNUmN3RlFZRFZRUUtEQTV6ZVhOMFpXMDZiV0Z6ZEdWeWN6RVpNQmNHQTFVRUF3d1FhM1ZpWlhKdVpYUmxjeTFoClpHMXBiakNDQVNJd0RRWUpLb1pJaHZjTkFRRUJCUUFEZ2dFUEFEQ0NBUW9DZ2dFQkFNaVJyaWhJMUk0L0xkWWQKVkRBQkFqUkpEa3lPR3dRT2NVblRsNUVJS29nZ09rZGZ2azRrTkJlUWlLNmd4cUlUY3M0SEQ3ZmhqSW9tUkU1Ugpyd00wa2lQVmhJb2VvVVl2dXE0eEJxY2ZGenRtU0E4Ni9aSEk5Q2FaOW93RnNNZmpXRDZ0QlRlUUwwdDVWWG13ClBmemxkbFI1VmVBV3lzZVV4blNtOU1oYkJJY2pjc0lwbnpuQzM5WmNjY2IwZko5a0V1V21JUTVZMng1TEFRdXAKUEY4ODNUYWpXOGw5OTFZV0ZVY1FnRG9iVjhySGRGdTZaMHcwM1BpdFRQRXliTitlQ3o1dEI4cnhlbFhhQXR5SQpoQ2hwU2FsakIvRkVJMGl1OUNRN3UzMmVJZExtcUE3cklScmYxMjdqcXRVelhpUjZHVzNjc1ZubjE3L3R4YytDClFsSjlnajhDQXdFQUFhTW5NQ1V3RGdZRFZSMFBBUUgvQkFRREFnV2dNQk1HQTFVZEpRUU1NQW9HQ0NzR0FRVUYKQndNQ01BMEdDU3FHU0liM0RRRUJDd1VBQTRJQkFRQk8zSVRsbFhCOUNNVk1ITzJlOXJ0eWMrM1R5VHdMK0ltawp4SCtyT3pZYWF6Tm1ZN0FyZmpHME1hdlBidW9aOW50dmExWDBSaXIzT3FtL1RwYzV1OHpKVW1raytiZmluS2dmCndaRFNQVEdHR0taQUp5UXBwbGREenJpVm9GQi9GYlgya0ozblBlZWwrb0F6aVpGYitYendpcFJ5TnVGR0g3REcKK2JXTi9yZ1BxalRNcXRzaG9rMFdMM1JHRW8xSmVWYmY1akMycHM5cXFJZWs5SVJJenI1TEMvQ1VSaDNKTW9WZQpFVmtOY283d25qR2pCbzh2b1o0b0hSOW9IeHN1T3BmSjN0SVRjNE0zK3kzRUM3cG5IRnA0R2EvVXlhVFdRMWNYCnRqNVNiVWtSdUJLdzZuTm9CVlo2dUlUQStTcjJlYkZkZEExYjBmY2JVcXduanNHL1N0NXkKLS0tLS1FTkQgQ0VSVElGSUNBVEUtLS0tLQo=
client-key-data: LS0tLS1CRUdJTiBSU0EgUFJJVkFURSBLRVktLS0tLQpNSUlFb3dJQkFBS0NBUUVBeUpHdUtFalVqajh0MWgxVU1BRUNORWtPVEk0YkJBNXhTZE9Ya1FncWlDQTZSMSsrClRpUTBGNUNJcnFER29oTnl6Z2NQdCtHTWlpWkVUbEd2QXpTU0k5V0VpaDZoUmkrNnJqRUdweDhYTzJaSUR6cjkKa2NqMEpwbjJqQVd3eCtOWVBxMEZONUF2UzNsVmViQTkvT1YyVkhsVjRCYkt4NVRHZEtiMHlGc0VoeU55d2ltZgpPY0xmMWx4eHh2UjhuMlFTNWFZaERsamJIa3NCQzZrOFh6emROcU5ieVgzM1ZoWVZSeENBT2h0WHlzZDBXN3BuClREVGMrSzFNOFRKczM1NExQbTBIeXZGNlZkb0MzSWlFS0dsSnFXTUg4VVFqU0s3MEpEdTdmWjRoMHVhb0R1c2gKR3QvWGJ1T3ExVE5lSkhvWmJkeXhXZWZYdiszRno0SkNVbjJDUHdJREFRQUJBb0lCQUZwL3VVaCtERUtlNlV5NgpjUmt6NjAyeVJSeHY1bXEvSllqOVMxOXFndDVuUkVTZVE5MDRZclRiUjRFY0ZHUmZTQ2NFY3FneXdsbzNpQXlhCnVOQkdjVVp2K2x6a0V6cjdJRTJtMjJ5ZkQ3bUNuak1aRi84bTRGdG1qeU9CRWRJdmw4cTRBU21nQ21jUXVXdXUKQlZwT0kwVmNkazRsbXB2UlduYWFPc3NJbnBObXMzZW1yN2U0RnhEODFXVXVBK21JbW1TUXIwUnY4azQ1WkRnVgp0MWZkcC9YVEV1Z3VSUTQ0THBudi9nOU00YUNwcFU2dk5ScU5WNnh0d0wwcmVPRS95djVTcFpIK3E3RTducGJZCkdSYWNtTkVnZzNvSTJBSlBlOStWS00vV01zRk1aZUJoNXNnSnZzNS8xa0dwcURrc3pad3VjZzl2cDR4RGRaWjAKVDVudWFwRUNnWUVBNys3cmtzOFNFbXpEaVZyTmNXZnJpZFErZzNqZS9INmtjc0lSeXNOSmVGdjhrZDZ1N0hyVgpMRzk5dVc5WGtybnQ5SHJuMS9mMjB5Z3lvVTJteFlOQXBKWmhnTWZyWTFjK1RuZTBxbmx1SlVERjBURkordkl4CmRPOStEdkpwelFycExxbzBzc1AwT3BMbmJqTFZxOVBSWkdqZHN6UCt1SzRiUzNPQm9JNDhaUWtDZ1lFQTFmLzAKZ3ZzMjVRQ2puUXR5NVpSU29HRlRvdWd2Tm5kUG5maFdHSmR1aHB6ZGcwWFllZ1M0R2pyZnlCOXFKdHhYZkt3VwpZK3lmREZYb2FDUE94OXl4UEF1RytHZndHRUprRHVRNFRMSXRvSHdxN3p5OXIrZzh4a3c4Yjl0NUpuWVZiVTBoCjdOakJaS3dqOHdCREVYVlpBdXpYbWNsNDVpejRpMjZYRjZQWGh3Y0NnWUF4dTBQNDJoTFUzdFpvMGZsaldEYnEKQ3FRcWZCTThJc1BUUllhS2tJL1o4cmNYUlNEY3cxa01MTS9TYjlHbkNBTGFlZDgwVktGRWcwQjdUcTBTbzNIeQpxM2pxU0lYeHdWT1kwQmNTZnJqbDM5Y2cxU2FRYlVMekNmRUhDQmdGK0F6OUx5cGRJMkNzQTJjVTRGU0ptUTM5CjBmNmg5bFVGMHBDMXd1dExiQy80Z1FLQmdCbkFHTjRCK0pNSnhxWkpFR1JMdXIyTnVKQ3J1N0trSExKM2hYU2sKRkNxaWlZMFlSSG82UXlUMDNLU3FFdzNtQ2FqNDFDRG1BaVZyMlBGZkRhekRBNWlrRW5PbG5pQnRMTGtXQVNoSgpjSEFWUU4xVXc4WjgvWU1tL1ViQWRBMkt1LzFSQUxvTlF3Z29KcE5BL3RFRSs5YjhSTjArZnd2RGNZemxtOHkrCmJGclZBb0dCQUp3TmdINkgrWEZFcGx6bFpILzZvbEJoa3ljcnBiOTZGTmN3eXA5cGNSUXhsaC9tZGNFd2lBSDYKbXhDUG1IY2JlcEZlejNlVGpaUnJOeFdRMFp6UGQyVk5VbFZXUE1uV3Vadk0wWFJhRng5YmdqY2hLUERhU0N4SwpXaTYxcHFKcUZVSlRzQjM5WWdjZk1TTjI3WVBzbHVEWlI1MkVrTDFlT3Nkb2pBTm54R0VqCi0tLS0tRU5EIFJTQSBQUklWQVRFIEtFWS0tLS0tCg==
[root@k8s-master prometheus]# echo LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSUM1ekNDQWMrZ0F3SUJBZ0lCQURBTkJna3Foa2lHOXcwQkFRc0ZBREFWTVJNd0VRWURWUVFERXdwcmRXSmwKY201bGRHVnpNQjRYRFRJeU1UQXhNREF6TURjek0xb1hEVE15TVRBd056QXpNRGN6TTFvd0ZURVRNQkVHQTFVRQpBeE1LYTNWaVpYSnVaWFJsY3pDQ0FTSXdEUVlKS29aSWh2Y05BUUVCQlFBRGdnRVBBRENDQVFvQ2dnRUJBTFI5CldQazUvRFYyZTJZWEx0NUcySW03ajNoSGRrSndiTUVqRFFLd1FyMXZNVUc0WWw4dmQxMk9odjIvYkRHUlh6T0sKRTR6ZEhRVEZKV1dLRTNhSHJYcGpUSnBuOWNBc2YxN2VFcy9RWHczVk03bmllZzIxY204bjc4akRUaTdaQUI0ZApmTWRYNmJscWx3U05LOGc0RUV5L1BFZjhjdzhOY25oTjZGSkJzc3p6MTMzVkFFM0w5QWVuUlppUklFNDNnaEhaCkJQRFY4aEpkQ3cyMDlTaHBranNvRXM1YWJyL3JQV1F6OVgvdzRlNGgyU1FXb2xXUERQckdIeStqeDloa2RkMDQKa1EvYnZaOEdFZDl3aWhaYXNvelA0VmNOYk5UR0ZQbmpNUjM0dkE0U3BTQ2U1VFZWZkQ0ZitFRW9IM3NET25vbgpldGM3NldsSUpkMkY3Q2Q3ZWpFQ0F3RUFBYU5DTUVBd0RnWURWUjBQQVFIL0JBUURBZ0trTUE4R0ExVWRFd0VCCi93UUZNQU1CQWY4d0hRWURWUjBPQkJZRUZJSGlTWFZDNXRXRmJZWUwxdm1ya3VjMlJseVNNQTBHQ1NxR1NJYjMKRFFFQkN3VUFBNElCQVFCL2NZMVFtd3ZZN09EeDQ1WVcveExTRWlmcTRvc08xTFF6bXdJcFBodW5FWEFoa3NWcAp3bkdCL3JTdjhjNzVwOVhmUG1pWTNNaXJpNENIU1lRSnBXWGY0YUZ1ZDJ0MnNvVmdkTkNGeE50QlNzU1NBY1JmCk5LdkJLZzZtS1YxUUEvaG5HbklMU1Rhd2YxdGdrVERMNmEwQTkzSk1NMENZNWRwK084RnhDOEN3RFlWelRCQXoKa3RIS3p1RU9QbCszWGhSSFJldGJjUHM1L2pPbVBicmZHK1JReWhtSmJhZE5BRGV2QVBFZnNhajFQVTNWTU1DVQpVWFlDc2JMU1ZaSEhRT2Yyd202L0JBWS93Zkdaclo1OXpVUndUZnFJSTd4Q2R3Qnc4ZG5CL24rcDhtQUs3SnFUCkZwYWZPdUgralRxQnlJR0VSWUFPRzhwVS9NQkpHckphRjM2ZQotLS0tLUVORCBDRVJUSUZJQ0FURS0tLS0tCg==|base64 -d
-----BEGIN CERTIFICATE-----
MIIC5zCCAc+gAwIBAgIBADANBgkqhkiG9w0BAQsFADAVMRMwEQYDVQQDEwprdWJl
cm5ldGVzMB4XDTIyMTAxMDAzMDczM1oXDTMyMTAwNzAzMDczM1owFTETMBEGA1UE
AxMKa3ViZXJuZXRlczCCASIwDQYJKoZIhvcNAQEBBQADggEPADCCAQoCggEBALR9
WPk5/DV2e2YXLt5G2Im7j3hHdkJwbMEjDQKwQr1vMUG4Yl8vd12Ohv2/bDGRXzOK
E4zdHQTFJWWKE3aHrXpjTJpn9cAsf17eEs/QXw3VM7nieg21cm8n78jDTi7ZAB4d
fMdX6blqlwSNK8g4EEy/PEf8cw8NcnhN6FJBsszz133VAE3L9AenRZiRIE43ghHZ
BPDV8hJdCw209ShpkjsoEs5abr/rPWQz9X/w4e4h2SQWolWPDPrGHy+jx9hkdd04
kQ/bvZ8GEd9wihZasozP4VcNbNTGFPnjMR34vA4SpSCe5TVVfD4f+EEoH3sDOnon
etc76WlIJd2F7Cd7ejECAwEAAaNCMEAwDgYDVR0PAQH/BAQDAgKkMA8GA1UdEwEB
/wQFMAMBAf8wHQYDVR0OBBYEFIHiSXVC5tWFbYYL1vmrkuc2RlySMA0GCSqGSIb3
DQEBCwUAA4IBAQB/cY1QmwvY7ODx45YW/xLSEifq4osO1LQzmwIpPhunEXAhksVp
wnGB/rSv8c75p9XfPmiY3Miri4CHSYQJpWXf4aFud2t2soVgdNCFxNtBSsSSAcRf
NKvBKg6mKV1QA/hnGnILSTawf1tgkTDL6a0A93JMM0CY5dp+O8FxC8CwDYVzTBAz
ktHKzuEOPl+3XhRHRetbcPs5/jOmPbrfG+RQyhmJbadNADevAPEfsaj1PU3VMMCU
UXYCsbLSVZHHQOf2wm6/BAY/wfGZrZ59zURwTfqII7xCdwBw8dnB/n+p8mAK7JqT
FpafOuH+jTqByIGERYAOG8pU/MBJGrJaF36e
-----END CERTIFICATE-----
[root@k8s-master prometheus]# echo LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSUM4ekNDQWR1Z0F3SUJBZ0lKQUp5dWdZbEdzTXMwTUEwR0NTcUdTSWIzRFFFQkN3VUFNQlV4RXpBUkJnTlYKQkFNVENtdDFZbVZ5Ym1WMFpYTXdIaGNOTWpJeE1ERXdNRFV4TlRJMVdoY05Nekl4TURBM01EVXhOVEkxV2pBMApNUmN3RlFZRFZRUUtEQTV6ZVhOMFpXMDZiV0Z6ZEdWeWN6RVpNQmNHQTFVRUF3d1FhM1ZpWlhKdVpYUmxjeTFoClpHMXBiakNDQVNJd0RRWUpLb1pJaHZjTkFRRUJCUUFEZ2dFUEFEQ0NBUW9DZ2dFQkFNaVJyaWhJMUk0L0xkWWQKVkRBQkFqUkpEa3lPR3dRT2NVblRsNUVJS29nZ09rZGZ2azRrTkJlUWlLNmd4cUlUY3M0SEQ3ZmhqSW9tUkU1Ugpyd00wa2lQVmhJb2VvVVl2dXE0eEJxY2ZGenRtU0E4Ni9aSEk5Q2FaOW93RnNNZmpXRDZ0QlRlUUwwdDVWWG13ClBmemxkbFI1VmVBV3lzZVV4blNtOU1oYkJJY2pjc0lwbnpuQzM5WmNjY2IwZko5a0V1V21JUTVZMng1TEFRdXAKUEY4ODNUYWpXOGw5OTFZV0ZVY1FnRG9iVjhySGRGdTZaMHcwM1BpdFRQRXliTitlQ3o1dEI4cnhlbFhhQXR5SQpoQ2hwU2FsakIvRkVJMGl1OUNRN3UzMmVJZExtcUE3cklScmYxMjdqcXRVelhpUjZHVzNjc1ZubjE3L3R4YytDClFsSjlnajhDQXdFQUFhTW5NQ1V3RGdZRFZSMFBBUUgvQkFRREFnV2dNQk1HQTFVZEpRUU1NQW9HQ0NzR0FRVUYKQndNQ01BMEdDU3FHU0liM0RRRUJDd1VBQTRJQkFRQk8zSVRsbFhCOUNNVk1ITzJlOXJ0eWMrM1R5VHdMK0ltawp4SCtyT3pZYWF6Tm1ZN0FyZmpHME1hdlBidW9aOW50dmExWDBSaXIzT3FtL1RwYzV1OHpKVW1raytiZmluS2dmCndaRFNQVEdHR0taQUp5UXBwbGREenJpVm9GQi9GYlgya0ozblBlZWwrb0F6aVpGYitYendpcFJ5TnVGR0g3REcKK2JXTi9yZ1BxalRNcXRzaG9rMFdMM1JHRW8xSmVWYmY1akMycHM5cXFJZWs5SVJJenI1TEMvQ1VSaDNKTW9WZQpFVmtOY283d25qR2pCbzh2b1o0b0hSOW9IeHN1T3BmSjN0SVRjNE0zK3kzRUM3cG5IRnA0R2EvVXlhVFdRMWNYCnRqNVNiVWtSdUJLdzZuTm9CVlo2dUlUQStTcjJlYkZkZEExYjBmY2JVcXduanNHL1N0NXkKLS0tLS1FTkQgQ0VSVElGSUNBVEUtLS0tLQo=|base64 -d
-----BEGIN CERTIFICATE-----
MIIC8zCCAdugAwIBAgIJAJyugYlGsMs0MA0GCSqGSIb3DQEBCwUAMBUxEzARBgNV
BAMTCmt1YmVybmV0ZXMwHhcNMjIxMDEwMDUxNTI1WhcNMzIxMDA3MDUxNTI1WjA0
MRcwFQYDVQQKDA5zeXN0ZW06bWFzdGVyczEZMBcGA1UEAwwQa3ViZXJuZXRlcy1h
ZG1pbjCCASIwDQYJKoZIhvcNAQEBBQADggEPADCCAQoCggEBAMiRrihI1I4/LdYd
VDABAjRJDkyOGwQOcUnTl5EIKoggOkdfvk4kNBeQiK6gxqITcs4HD7fhjIomRE5R
rwM0kiPVhIoeoUYvuq4xBqcfFztmSA86/ZHI9CaZ9owFsMfjWD6tBTeQL0t5VXmw
PfzldlR5VeAWyseUxnSm9MhbBIcjcsIpnznC39Zcccb0fJ9kEuWmIQ5Y2x5LAQup
PF883TajW8l991YWFUcQgDobV8rHdFu6Z0w03PitTPEybN+eCz5tB8rxelXaAtyI
hChpSaljB/FEI0iu9CQ7u32eIdLmqA7rIRrf127jqtUzXiR6GW3csVnn17/txc+C
QlJ9gj8CAwEAAaMnMCUwDgYDVR0PAQH/BAQDAgWgMBMGA1UdJQQMMAoGCCsGAQUF
BwMCMA0GCSqGSIb3DQEBCwUAA4IBAQBO3ITllXB9CMVMHO2e9rtyc+3TyTwL+Imk
xH+rOzYaazNmY7ArfjG0MavPbuoZ9ntva1X0Rir3Oqm/Tpc5u8zJUmkk+bfinKgf
wZDSPTGGGKZAJyQppldDzriVoFB/FbX2kJ3nPeel+oAziZFb+XzwipRyNuFGH7DG
+bWN/rgPqjTMqtshok0WL3RGEo1JeVbf5jC2ps9qqIek9IRIzr5LC/CURh3JMoVe
EVkNco7wnjGjBo8voZ4oHR9oHxsuOpfJ3tITc4M3+y3EC7pnHFp4Ga/UyaTWQ1cX
tj5SbUkRuBKw6nNoBVZ6uITA+Sr2ebFddA1b0fcbUqwnjsG/St5y
-----END CERTIFICATE-----
[root@k8s-master prometheus]# echo LS0tLS1CRUdJTiBSU0EgUFJJVkFURSBLRVktLS0tLQpNSUlFb3dJQkFBS0NBUUVBeUpHdUtFalVqajh0MWgxVU1BRUNORWtPVEk0YkJBNXhTZE9Ya1FncWlDQTZSMSsrClRpUTBGNUNJcnFER29oTnl6Z2NQdCtHTWlpWkVUbEd2QXpTU0k5V0VpaDZoUmkrNnJqRUdweDhYTzJaSUR6cjkKa2NqMEpwbjJqQVd3eCtOWVBxMEZONUF2UzNsVmViQTkvT1YyVkhsVjRCYkt4NVRHZEtiMHlGc0VoeU55d2ltZgpPY0xmMWx4eHh2UjhuMlFTNWFZaERsamJIa3NCQzZrOFh6emROcU5ieVgzM1ZoWVZSeENBT2h0WHlzZDBXN3BuClREVGMrSzFNOFRKczM1NExQbTBIeXZGNlZkb0MzSWlFS0dsSnFXTUg4VVFqU0s3MEpEdTdmWjRoMHVhb0R1c2gKR3QvWGJ1T3ExVE5lSkhvWmJkeXhXZWZYdiszRno0SkNVbjJDUHdJREFRQUJBb0lCQUZwL3VVaCtERUtlNlV5NgpjUmt6NjAyeVJSeHY1bXEvSllqOVMxOXFndDVuUkVTZVE5MDRZclRiUjRFY0ZHUmZTQ2NFY3FneXdsbzNpQXlhCnVOQkdjVVp2K2x6a0V6cjdJRTJtMjJ5ZkQ3bUNuak1aRi84bTRGdG1qeU9CRWRJdmw4cTRBU21nQ21jUXVXdXUKQlZwT0kwVmNkazRsbXB2UlduYWFPc3NJbnBObXMzZW1yN2U0RnhEODFXVXVBK21JbW1TUXIwUnY4azQ1WkRnVgp0MWZkcC9YVEV1Z3VSUTQ0THBudi9nOU00YUNwcFU2dk5ScU5WNnh0d0wwcmVPRS95djVTcFpIK3E3RTducGJZCkdSYWNtTkVnZzNvSTJBSlBlOStWS00vV01zRk1aZUJoNXNnSnZzNS8xa0dwcURrc3pad3VjZzl2cDR4RGRaWjAKVDVudWFwRUNnWUVBNys3cmtzOFNFbXpEaVZyTmNXZnJpZFErZzNqZS9INmtjc0lSeXNOSmVGdjhrZDZ1N0hyVgpMRzk5dVc5WGtybnQ5SHJuMS9mMjB5Z3lvVTJteFlOQXBKWmhnTWZyWTFjK1RuZTBxbmx1SlVERjBURkordkl4CmRPOStEdkpwelFycExxbzBzc1AwT3BMbmJqTFZxOVBSWkdqZHN6UCt1SzRiUzNPQm9JNDhaUWtDZ1lFQTFmLzAKZ3ZzMjVRQ2puUXR5NVpSU29HRlRvdWd2Tm5kUG5maFdHSmR1aHB6ZGcwWFllZ1M0R2pyZnlCOXFKdHhYZkt3VwpZK3lmREZYb2FDUE94OXl4UEF1RytHZndHRUprRHVRNFRMSXRvSHdxN3p5OXIrZzh4a3c4Yjl0NUpuWVZiVTBoCjdOakJaS3dqOHdCREVYVlpBdXpYbWNsNDVpejRpMjZYRjZQWGh3Y0NnWUF4dTBQNDJoTFUzdFpvMGZsaldEYnEKQ3FRcWZCTThJc1BUUllhS2tJL1o4cmNYUlNEY3cxa01MTS9TYjlHbkNBTGFlZDgwVktGRWcwQjdUcTBTbzNIeQpxM2pxU0lYeHdWT1kwQmNTZnJqbDM5Y2cxU2FRYlVMekNmRUhDQmdGK0F6OUx5cGRJMkNzQTJjVTRGU0ptUTM5CjBmNmg5bFVGMHBDMXd1dExiQy80Z1FLQmdCbkFHTjRCK0pNSnhxWkpFR1JMdXIyTnVKQ3J1N0trSExKM2hYU2sKRkNxaWlZMFlSSG82UXlUMDNLU3FFdzNtQ2FqNDFDRG1BaVZyMlBGZkRhekRBNWlrRW5PbG5pQnRMTGtXQVNoSgpjSEFWUU4xVXc4WjgvWU1tL1ViQWRBMkt1LzFSQUxvTlF3Z29KcE5BL3RFRSs5YjhSTjArZnd2RGNZemxtOHkrCmJGclZBb0dCQUp3TmdINkgrWEZFcGx6bFpILzZvbEJoa3ljcnBiOTZGTmN3eXA5cGNSUXhsaC9tZGNFd2lBSDYKbXhDUG1IY2JlcEZlejNlVGpaUnJOeFdRMFp6UGQyVk5VbFZXUE1uV3Vadk0wWFJhRng5YmdqY2hLUERhU0N4SwpXaTYxcHFKcUZVSlRzQjM5WWdjZk1TTjI3WVBzbHVEWlI1MkVrTDFlT3Nkb2pBTm54R0VqCi0tLS0tRU5EIFJTQSBQUklWQVRFIEtFWS0tLS0tCg==|base64 -d
-----BEGIN RSA PRIVATE KEY-----
MIIEowIBAAKCAQEAyJGuKEjUjj8t1h1UMAECNEkOTI4bBA5xSdOXkQgqiCA6R1++
TiQ0F5CIrqDGohNyzgcPt+GMiiZETlGvAzSSI9WEih6hRi+6rjEGpx8XO2ZIDzr9
kcj0Jpn2jAWwx+NYPq0FN5AvS3lVebA9/OV2VHlV4BbKx5TGdKb0yFsEhyNywimf
OcLf1lxxxvR8n2QS5aYhDljbHksBC6k8XzzdNqNbyX33VhYVRxCAOhtXysd0W7pn
TDTc+K1M8TJs354LPm0HyvF6VdoC3IiEKGlJqWMH8UQjSK70JDu7fZ4h0uaoDush
Gt/XbuOq1TNeJHoZbdyxWefXv+3Fz4JCUn2CPwIDAQABAoIBAFp/uUh+DEKe6Uy6
cRkz602yRRxv5mq/JYj9S19qgt5nRESeQ904YrTbR4EcFGRfSCcEcqgywlo3iAya
uNBGcUZv+lzkEzr7IE2m22yfD7mCnjMZF/8m4FtmjyOBEdIvl8q4ASmgCmcQuWuu
BVpOI0Vcdk4lmpvRWnaaOssInpNms3emr7e4FxD81WUuA+mImmSQr0Rv8k45ZDgV
t1fdp/XTEuguRQ44Lpnv/g9M4aCppU6vNRqNV6xtwL0reOE/yv5SpZH+q7E7npbY
GRacmNEgg3oI2AJPe9+VKM/WMsFMZeBh5sgJvs5/1kGpqDkszZwucg9vp4xDdZZ0
T5nuapECgYEA7+7rks8SEmzDiVrNcWfridQ+g3je/H6kcsIRysNJeFv8kd6u7HrV
LG99uW9Xkrnt9Hrn1/f20ygyoU2mxYNApJZhgMfrY1c+Tne0qnluJUDF0TFJ+vIx
dO9+DvJpzQrpLqo0ssP0OpLnbjLVq9PRZGjdszP+uK4bS3OBoI48ZQkCgYEA1f/0
gvs25QCjnQty5ZRSoGFTougvNndPnfhWGJduhpzdg0XYegS4GjrfyB9qJtxXfKwW
Y+yfDFXoaCPOx9yxPAuG+GfwGEJkDuQ4TLItoHwq7zy9r+g8xkw8b9t5JnYVbU0h
7NjBZKwj8wBDEXVZAuzXmcl45iz4i26XF6PXhwcCgYAxu0P42hLU3tZo0fljWDbq
CqQqfBM8IsPTRYaKkI/Z8rcXRSDcw1kMLM/Sb9GnCALaed80VKFEg0B7Tq0So3Hy
q3jqSIXxwVOY0BcSfrjl39cg1SaQbULzCfEHCBgF+Az9LypdI2CsA2cU4FSJmQ39
0f6h9lUF0pC1wutLbC/4gQKBgBnAGN4B+JMJxqZJEGRLur2NuJCru7KkHLJ3hXSk
FCqiiY0YRHo6QyT03KSqEw3mCaj41CDmAiVr2PFfDazDA5ikEnOlniBtLLkWAShJ
cHAVQN1Uw8Z8/YMm/UbAdA2Ku/1RALoNQwgoJpNA/tEE+9b8RN0+fwvDcYzlm8y+
bFrVAoGBAJwNgH6H+XFEplzlZH/6olBhkycrpb96FNcwyp9pcRQxlh/mdcEwiAH6
mxCPmHcbepFez3eTjZRrNxWQ0ZzPd2VNUlVWPMnWuZvM0XRaFx9bgjchKPDaSCxK
Wi61pqJqFUJTsB39YgcfMSN27YPsluDZR52EkL1eOsdojANnxGEj
-----END RSA PRIVATE KEY-----
面板没有数据怎么办？
- DaemonSet
label_values(kube_pod_info{namespace="$namespace",pod=~"$daemonset-.*"},pod)
- Deployment
label_values(kube_pod_info{namespace="$namespace",pod=~"$deployment-.*"},pod)
- Pod
label_values(kube_pod_info{namespace="$namespace"},pod)
自定义监控面板¶
通用的监控需求基本上都可以使用第三方的Dashboard来解决，对于业务应用自己实现的指标的监控面板，则需要我们手动进行创建。
web界面右边菜单 加号 new dashboard –》 Edit Panel
调试Panel：直接输入Metrics，查询数据。
如，输入node_load1来查看集群节点最近1分钟的平均负载，直接保存即可生成一个panel
如何根据字段过滤，实现联动效果？
比如想实现根据集群节点名称进行过滤，可以通过如下方式：
-
设置 -> Variables -> Add Variable，添加一个变量node，
-
Name：node
- Label：选择节点
- Data Source：Prometheus
- Query：label_values(kube_node_info,node)，可以在页面下方的
Preview of values查看到当前变量的可选值 - Refresh：
On Dashboard Load - Multi-value：true
-
Include All Options：true
-
修改Metrics，$node和变量名字保持一致，意思为自动读取当前设置的节点的名字
再添加一个面板，使用如下的表达式：
Metrics指标类型与PromQL¶
Metrics指标类型与PromQL¶
TSDB的样本分布示意图：
^
│ . . . . . . . . . . . . . . . . . . . node_cpu{cpu="cpu0",mode="idle"}
│ . . . . . . . . . . . . . . . . . . . node_cpu{cpu="cpu0",mode="system"}
│ . . . . . . . . . . . . . . . . . . node_load1{}
│ . . . . . . . . . . . . . . . . . . node_cpu_seconds_total{...}
v
<------------------ 时间 ---------------->
Gauge类型：
$ kubectl -n monitor get po -o wide |grep k8s-master
node-exporter-ld6sq 1/1 Running 0 4d3h 172.21.51.143 k8s-master
$ curl -s 172.21.51.143:9100/metrics |grep node_load1
# HELP node_load1 1m load average.
# TYPE node_load1 gauge
node_load1 0.18
# HELP node_load15 15m load average.
# TYPE node_load15 gauge
node_load15 0.37
Gauge类型的指标侧重于反应系统的当前状态。
- 这类指标的样本数据可增可减。
- 常见指标如：node_memory_MemAvailable_bytes（可用内存大小）、node_load1（系统平均负载）
Guage类型的数据，通常直接查询就会有比较直观的业务含义，比如：
- node_load5
- node_memory_MemAvailable_bytes
我们也会对这类数据做简单的处理，比如：
- 过滤其中某些节点
- 对指标进行数学运算
这就是PromQL提供的能力，可以对收集到的数据做聚合、计算等处理。
PromQL（ Prometheus Query Language ）是Prometheus自定义的一套强大的数据查询语言，除了使用监控指标作为查询关键字以为，还内置了大量的函数，帮助用户进一步对时序数据进行处理。
比如：
- 只显示k8s-master节点的平均负载
- 显示除了k8s-master节点外的其他节点的平均负载
- 正则匹配
- 集群各节点系统内存使用率
((node_memory_MemTotal_bytes - (node_memory_MemFree_bytes + node_memory_Buffers_bytes + node_memory_Cached_bytes))/node_memory_MemTotal_bytes)*100
counter类型：
$ curl -s 172.21.51.67:9100/metrics |grep node_cpu_seconds_total
# HELP node_cpu_seconds_total Seconds the cpus spent in each mode.
# TYPE node_cpu_seconds_total counter
node_cpu_seconds_total{cpu="0",mode="idle"} 294341.02
node_cpu_seconds_total{cpu="0",mode="iowait"} 120.78
node_cpu_seconds_total{cpu="0",mode="irq"} 0
node_cpu_seconds_total{cpu="0",mode="nice"} 0.13
node_cpu_seconds_total{cpu="0",mode="softirq"} 1263.29
counter类型的指标其工作方式和计数器一样，只增不减（除非系统发生重置）。常见的监控指标，如http_requests_total，node_cpu_seconds_total都是Counter类型的监控指标。
通常计数器类型的指标，名称后面都以_total结尾。我们通过理解CPU利用率的PromQL表达式来讲解Counter指标类型的使用。
各节点CPU的平均使用率表达式：
(1- sum(increase(node_cpu_seconds_total{mode="idle"}[2m])) by (instance) / sum(increase(node_cpu_seconds_total{}[2m])) by (instance)) * 100
分析：
node_cpu_seconds_total的指标含义是统计系统运行以来，CPU资源分配的时间总数，单位为秒，是累加的值。比如，直接运行该指标：
其中mode的值和我们平常在系统中执行top命令看到的CPU显示的信息一致：
每个mode对应的含义如下：
user(us) 表示用户态空间或者说是用户进程(running user space processes)使用CPU所耗费的时间。这是日常我们部署的应用所在的层面，最常见常用。system(sy) 表示内核态层级使用CPU所耗费的时间。分配内存、IO操作、创建子进程……都是内核操作。这也表明，当IO操作频繁时，System参数会很高。steal(st) 当运行在虚拟化环境中，花费在其它 OS 中的时间（基于虚拟机监视器 hypervisor 的调度）；可以理解成由于虚拟机调度器将 cpu 时间用于其它 OS 了，故当前 OS 无法使用 CPU 的时间。softirq(si) 从系统启动开始，累计到当前时刻，软中断时间irq(hi) 从系统启动开始，累计到当前时刻，硬中断时间nice(ni) 从系统启动开始，累计到当前时刻， 低优先级(低优先级意味着进程 nice 值小于 0)用户态的进程所占用的CPU时间iowait(wa) 从系统启动开始，累计到当前时刻，IO等待时间idle(id) 从系统启动开始，累计到当前时刻，除IO等待时间以外的其它等待时间，亦即空闲时间
我们通过指标拿到的各核心cpu分配的总时长数据，都是瞬时的数据，如何转换成 CPU的利用率？
先来考虑如何我们如何计算CPU利用率，假如我的k8s-master节点是4核CPU，我们来考虑如下场景：
- 过去60秒内每个CPU核心处于idle空闲状态的时长，假如分别为 :
- cpu0：20s
- cpu1：30s
- cpu2：50s
- cpu3：40s
- 则四个核心总共可分配的时长是 4*60=240s
- 实际空闲状态的总时长为20+30+50+40=140s
- 那么我们可以计算出过去1分钟k8s-master节点的CPU利用率为 (1- 140/240) * 100 = 41.7%
因此，我们只需要使用PromQL取出上述过程中的值即可：
# 过滤出当前时间点idle的时长
node_cpu_seconds_total{mode="idle"}
# 使用[1m]取出1分钟区间内的样本值,注意，1m区间要大于prometheus设置的抓取周期，此处会将周期内所以的样本值取出
node_cpu_seconds_total{mode="idle"}[1m]
# 使用increase方法，获取该区间内idle状态的增量值,即1分钟内，mode="idle"状态增加的时长
increase(node_cpu_seconds_total{mode="idle"}[1m])
# 由于是多个cpu核心，因此需要做累加，使用sum函数
sum(increase(node_cpu_seconds_total{mode="idle"}[1m]))
# 由于是多台机器，因此，需要按照instance的值进行分组累加，使用by关键字做分组,这样就获得了1分钟内，每个节点上 所有CPU核心idle状态的增量时长，即前面示例中的”20+30+50+40=140s“
sum(increase(node_cpu_seconds_total{mode="idle"}[1m])) by (instance)
# 去掉mode=idle的过滤条件，即可获取1分钟内，所有状态的cpu获得的增量总时长，即4*60=240s
sum(increase(node_cpu_seconds_total{}[1m])) by (instance)
# 最终的语句
(1- sum(increase(node_cpu_seconds_total{mode="idle"}[1m])) by (instance) / sum(increase(node_cpu_seconds_total{}[1m])) by (instance)) * 100
除此之外，还会经常看到avg,irate和rate方法的使用：
irate() 是基于最后两个数据点计算一个时序指标在一个范围内的每秒递增率 ，举个例子：
# 1min内，k8s-master节点的idle状态的cpu分配时长增量值
increase(node_cpu_seconds_total{instance="k8s-master",mode="idle"}[1m])
{cpu="0",instance="k8s-master",job="kubernetes-sd-node-exporter",mode="idle"} 56.5
{cpu="1",instance="k8s-master",job="kubernetes-sd-node-exporter",mode="idle"} 56.04
{cpu="2",instance="k8s-master",job="kubernetes-sd-node-exporter",mode="idle"} 56.6
{cpu="3",instance="k8s-master",job="kubernetes-sd-node-exporter",mode="idle"} 56.5
#以第一条数据为例，说明过去的1分钟，k8s-master节点的第一个CPU核心，有56.5秒的时长是出于idle状态的
# 1min内，k8s-master节点的idle状态的cpu分配每秒的速率
irate(node_cpu_seconds_total{instance="k8s-master",mode="idle"}[1m])
{cpu="0",instance="k8s-master",job="kubernetes-sd-node-exporter",mode="idle"} 0.934
{cpu="1",instance="k8s-master",job="kubernetes-sd-node-exporter",mode="idle"} 0.932
{cpu="2",instance="k8s-master",job="kubernetes-sd-node-exporter",mode="idle"} 0.933
{cpu="3",instance="k8s-master",job="kubernetes-sd-node-exporter",mode="idle"} 0.936
# 该值如何计算的？
# irate会取出样本中的最后两个点来作为增长依据，然后做差值计算，并且除以两个样本间的数据时长，也就是说，我们设置2m,5m取出来的值是一样的，因为只会计算最后两个样本差。
# 以第一条数据为例，表示用irate计算出来的结果是，过去的两分钟内，cpu平均每秒钟有0.934秒的时间是处于idle状态的
# rate会1min内第一个和最后一个样本值为依据，计算方式和irate保持一致
rate(node_cpu_seconds_total{instance="k8s-master",mode="idle"}[1m])
{cpu="0",instance="k8s-master",job="kubernetes-sd-node-exporter",mode="idle"} 0.933
{cpu="1",instance="k8s-master",job="kubernetes-sd-node-exporter",mode="idle"} 0.940
{cpu="2",instance="k8s-master",job="kubernetes-sd-node-exporter",mode="idle"} 0.935
{cpu="3",instance="k8s-master",job="kubernetes-sd-node-exporter",mode="idle"} 0.937
因此rate的值，相对来讲更平滑，因为计算的是时间段内的平均，更适合于用作告警。
取CPU平均使用率也可以用如下表达式表示：
AlertManager安装配置¶
Alertmanager¶
Alertmanager是一个独立的告警模块。
- 接收Prometheus等客户端发来的警报
- 通过分组、删除重复等处理，并将它们通过路由发送给正确的接收器；
- 告警方式可以按照不同的规则发送给不同的模块负责人。Alertmanager支持Email, Slack，等告警方式, 也可以通过webhook接入钉钉等国内IM工具。
如果集群主机的内存使用率超过80%，且该现象持续了2分钟？想实现这样的监控告警，如何做？
从上图可得知设置警报和通知的主要步骤是：
- 安装和配置 Alertmanager
- 配置Prometheus与Alertmanager对话
- 在Prometheus中创建警报规则
安装¶
Alertmanager， https://github.com/prometheus/alertmanager#install
alertmanager.yml配置文件格式：
# mkdir alertmanager
# cd alertmanager/
cat > config.yml <<\EOF
apiVersion: v1
data:
config.yml: |
global:
# 当alertmanager持续多长时间未接收到告警后标记告警状态为 resolved
resolve_timeout: 5m
# 配置邮件发送信息
smtp_smarthost: 'smtp.163.com:25'
smtp_from: '343264992@163.com'
smtp_auth_username: '343264992@163.com'
smtp_auth_password: 'TTDIQQDRGRNEWJGI'
smtp_require_tls: false
# 所有报警信息进入后的根路由，用来设置报警的分发策略
route:
# 接收到的报警信息里面有许多alertname=NodeLoadHigh 这样的标签的报警信息将会批量被聚合到一个分组里面
group_by: ['alertname']
# 当一个新的报警分组被创建后，需要等待至少 group_wait 时间来初始化通知，如果在等待时间内当前group接收到了新的告警，这些告警将会合并为一个通知向receiver发送
group_wait: 30s
# 相同的group发送告警通知的时间间隔 # 一半设置10分钟
group_interval: 30s
# 如果一个报警信息已经发送成功了，等待 repeat_interval 时间来重新发送 #正常按小时 或者天
repeat_interval: 1m
# 默认的receiver：如果一个报警没有被一个route匹配，则发送给默认的接收器
receiver: default
# 上面所有的属性都由所有子路由继承，并且可以在每个子路由上进行覆盖。
routes:
- {}
# 配置告警接收者的信息
receivers:
- name: 'default'
email_configs:
- to: '343264992@qq.com'
send_resolved: true # 接受告警恢复的通知
kind: ConfigMap
metadata:
name: alertmanager
namespace: monitor
EOF
# 去掉注释版本
cat > config.yml <<\EOF
apiVersion: v1
data:
config.yml: |
global:
resolve_timeout: 5m
smtp_smarthost: 'smtp.163.com:25'
smtp_from: '343264992@163.com'
smtp_auth_username: '343264992@163.com'
smtp_auth_password: 'TTDIQQDRGRNEWJGI'
smtp_require_tls: false
route:
group_by: ['alertname']
group_wait: 30s
group_interval: 10m
repeat_interval: 1d
receiver: default
routes:
- {}
receivers:
- name: 'default'
email_configs:
- to: '343264992@qq.com'
send_resolved: true
kind: ConfigMap
metadata:
name: alertmanager
namespace: monitor
EOF
# 上面的文件创建创建成功后， -oyaml时候会有\n 显示不正常
---------------------从文件创建ConfigMap
cat > config.yml <<\EOF
global:
resolve_timeout: 5m
smtp_smarthost: 'smtp.163.com:25'
smtp_from: '343264992@163.com'
smtp_auth_username: '343264992@163.com'
smtp_auth_password: 'TTDIQQDRGRNEWJGI'
smtp_require_tls: false
route:
group_by: ['alertname']
group_wait: 30s
group_interval: 10m
repeat_interval: 1d
receiver: default
routes:
- {}
receivers:
- name: 'default'
email_configs:
- to: '343264992@qq.com'
send_resolved: true
EOF
kubectl -n monitor create cm alertmanager --from-file=config.yml
[root@k8s-master alertmanager]# kubectl -n monitor get cm alertmanager -oyaml
[root@k8s-master alertmanager]# cat -A config.yml # 查看文件是否有多余的空格
apiVersion: v1$
kind: ConfigMap$
metadata:$
name: alertmanager$
namespace: monitor$
data:$
config.yml: |$
global: $ #这里冒号后面有一个空格， 这样创建之后用-oyaml显示的时候会显示\n的符号现象
resolve_timeout: 5m$
smtp_smarthost: 'smtp.163.com:25'$
smtp_from: '343264992@163.com'$
smtp_auth_username: '343264992@163.com'$
smtp_auth_password: 'TTDIQQDRGRNEWJGI'$
smtp_require_tls: false$
route:$
group_by: ['alertname']$
group_wait: 30s$
group_interval: 10m$
repeat_interval: 1d$
receiver: default$
routes:$
- {}$
receivers:$
- name: 'default'$
email_configs:$
- to: '343264992@qq.com'$
send_resolved: true$
主要配置的作用：
- global: 全局配置，包括报警解决后的超时时间、SMTP 相关配置、各种渠道通知的 API 地址等等。
- route: 用来设置报警的分发策略，它是一个树状结构，按照深度优先从左向右的顺序进行匹配。
- receivers: 配置告警消息接受者信息，例如常用的 email、wechat、slack、webhook 等消息通知方式。
当alertmanager接收到一条新的alert时，会先根据group_by为其确定一个聚合组group，然后等待group_wait时间，如果在此期间接收到同一group的其他alert，则这些alert会被合并，然后再发送（alertmanager发送消息单位是group）。此参数的作用是防止短时间内出现大量告警的情况下，接收者被告警淹没。
在该组的alert第一次被发送后，该组会进入睡眠/唤醒周期，睡眠周期将持续group_interval时间，在睡眠状态下该group不会进行任何发送告警的操作（但会插入/更新(根据fingerprint)group中的内容），睡眠结束后进入唤醒状态，然后检查是否需要发送新的alert或者重复已发送的alert(resolved类型的alert在发送完后会从group中剔除)。这就是group_interval的作用。
聚合组在每次唤醒才会检查上一次发送alert是否已经超过repeat_interval时间，如果超过则再次发送该告警。
配置文件：
其他资源清单文件:
cat > alertmanager-all.yaml <<EOF
apiVersion: apps/v1
kind: Deployment
metadata:
name: alertmanager
namespace: monitor
labels:
app: alertmanager
spec:
selector:
matchLabels:
app: alertmanager
template:
metadata:
labels:
app: alertmanager
spec:
volumes:
- name: config
configMap:
name: alertmanager
containers:
- name: alertmanager
image: prom/alertmanager:v0.21.0
imagePullPolicy: IfNotPresent
args:
- "--config.file=/etc/alertmanager/config.yml"
- "--log.level=debug"
ports:
- containerPort: 9093
name: http
volumeMounts:
- mountPath: "/etc/alertmanager"
name: config
resources:
requests:
cpu: 100m
memory: 256Mi
limits:
cpu: 100m
memory: 256Mi
---
apiVersion: v1
kind: Service
metadata:
name: alertmanager
namespace: monitor
spec:
type: ClusterIP
ports:
- port: 9093
selector:
app: alertmanager
---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: alertmanager
namespace: monitor
spec:
rules:
- host: alertmanager.luffy.com
http:
paths:
- path: /
pathType: Prefix
backend:
service:
name: alertmanager
port:
number: 9093
EOF
# kubectl apply -f alertmanager-all.yaml
# kubectl -n monitor get ing
# 宿主机配置hosts
$ sudo vi /etc/hosts
10.211.55.25 wordpress.luffy.com harbor.luffy.com kibana.luffy.com prometheus.luffy.com grafana.luffy.com alertmanager.luffy.com
# kubectl -n monitor get po
配置Prometheus与Alertmanager对话¶
是否告警是由Prometheus进行判断的，若有告警产生，Prometheus会将告警push到Alertmanager，因此，需要在Prometheus端配置alertmanager的地址：
因此，修改Prometheus的配置文件，然后重新加载pod
[root@k8s-master alertmanager]# kubectl -n monitor get cm
NAME DATA AGE
alertmanager 1 2m30s
# 编辑prometheus-configmap.yaml配置，添加alertmanager内容
$ kubectl -n monitor edit configmap prometheus-config
apiVersion: v1
kind: ConfigMap
metadata:
name: prometheus-config
namespace: monitor
data:
prometheus.yml: |
global:
scrape_interval: 30s
evaluation_interval: 30s
alerting:
alertmanagers:
- static_configs:
- targets:
- alertmanager:9093 # 把注释去掉
...
$ # kubectl apply -f prometheus-configmap.yaml
# kubectl -n monitor get cm
# kubectl -n monitor get svc
# 现在已经有监控数据了，因此使用prometheus提供的reload的接口，进行服务重启
# 查看配置文件是否已经自动加载到pod中
$ kubectl -n monitor get po -o wide
prometheus-dcb499cbf-pljfn 1/1 Running 0 47h 10.244.0.101
# kubectl -n monitor exec -ti prometheus-7d6799c84c-6mvn7 -- cat /etc/prometheus/prometheus.yml|grep alertmanager
Defaulted container "prometheus" out of: prometheus, change-permission-of-directory (init)
alertmanagers:
- alertmanager:9093
# 使用软加载的方式，
$ curl -X POST 10.244.0.101:9090/-/reload
配置报警规则¶
配置报警规则¶
目前Prometheus与Alertmanager已经连通，接下来我们可以针对收集到的各类指标配置报警规则，一旦满足报警规则的设置，则Prometheus将报警信息推送给Alertmanager，进而转发到我们配置的邮件中。
在哪里配置？同样是在prometheus-configmap中：
$ kubectl -n monitor edit configmap prometheus-config
apiVersion: v1
kind: ConfigMap
metadata:
name: prometheus-config
namespace: monitor
data:
prometheus.yml: |
global:
scrape_interval: 30s
evaluation_interval: 30s
alerting:
alertmanagers:
- static_configs:
- targets:
- alertmanager:9093
# Load rules once and periodically evaluate them according to the global 'evaluation_interval'.
rule_files:
- /etc/prometheus/alert_rules.yml
# - "first_rules.yml"
# - "second_rules.yml"
scrape_configs:
- job_name: 'prometheus'
static_configs:
- targets: ['localhost:9090']
...
rules.yml我们同样使用configmap的方式挂载到prometheus容器内部，因此只需要在已有的configmap中加一个数据项目
cat > prometheus-configmap.yaml <</EOF
apiVersion: v1
kind: ConfigMap
metadata:
name: prometheus-config
namespace: monitor
data:
prometheus.yml: |
global:
scrape_interval: 15s
evaluation_interval: 15s
alerting:
alertmanagers:
- static_configs:
- targets:
- alertmanager:9093
# Load rules once and periodically evaluate them according to the global 'evaluation_interval'.
rule_files:
- /etc/prometheus/alert_rules.yml
# - "first_rules.yml"
# - "second_rules.yml"
scrape_configs:
- job_name: 'prometheus'
static_configs:
- targets: ['localhost:9090']
... # 省略中间部分
alert_rules.yml: |
groups:
- name: node_metrics
rules:
- alert: NodeLoad
expr: node_load15 < 1
for: 2m
annotations:
summary: "{{$labels.instance}}: Low node load detected"
description: "{{$labels.instance}}: node load is below 1 (current value is: {{ $value }}"
EOF
上两步的操作记录
[root@k8s-master alertmanager]# kubectl -n monitor exec -ti prometheus-7d6799c84c-6mvn7 -- cat /etc/prometheus/prometheus.yml > prometheus.yml
Defaulted container "prometheus" out of: prometheus, change-permission-of-directory (init)
[root@k8s-master alertmanager]# vi prometheus.yml
cat > prometheus.yml <<\EOF
# my global config
global:
scrape_interval: 30s
evaluation_interval: 30s
# scrape_timeout is set to the global default (10s).
# Alertmanager configuration
alerting:
alertmanagers:
- static_configs:
- targets:
- alertmanager:9093
# Load rules once and periodically evaluate them according to the global 'evaluation_interval'.
rule_files:
- /etc/prometheus/alert_rules.yml #新增行
# - "first_rules.yml"
# - "second_rules.yml"
# A scrape configuration containing exactly one endpoint to scrape:
# Here it's Prometheus itself.
scrape_configs:
- job_name: 'prometheus'
static_configs:
- targets: ['localhost:9090']
- job_name: 'kubernetes-apiserver'
static_configs:
- targets: ['10.96.0.1']
scheme: https
tls_config:
ca_file: /var/run/secrets/kubernetes.io/serviceaccount/ca.crt
insecure_skip_verify: true
bearer_token_file: /var/run/secrets/kubernetes.io/serviceaccount/token
- job_name: 'kubernetes-sd-node-exporter'
kubernetes_sd_configs:
- role: node
relabel_configs:
- source_labels: [__address__]
regex: '(.*):10250'
replacement: '${1}:9100'
target_label: __address__
action: replace
- job_name: 'kubernetes-sd-cadvisor'
kubernetes_sd_configs:
- role: node
scheme: https
tls_config:
ca_file: /var/run/secrets/kubernetes.io/serviceaccount/ca.crt
insecure_skip_verify: true
bearer_token_file: /var/run/secrets/kubernetes.io/serviceaccount/token
relabel_configs:
- target_label: __metrics_path__
replacement: /metrics/cadvisor
- job_name: 'kubernetes-sd-kubelet'
kubernetes_sd_configs:
- role: node
scheme: https
tls_config:
ca_file: /var/run/secrets/kubernetes.io/serviceaccount/ca.crt
insecure_skip_verify: true
bearer_token_file: /var/run/secrets/kubernetes.io/serviceaccount/token
- job_name: 'kubernetes-sd-endpoints'
kubernetes_sd_configs:
- role: endpoints
relabel_configs:
- source_labels: [__meta_kubernetes_service_annotation_prometheus_io_scrape]
action: keep
regex: true
- source_labels: [__meta_kubernetes_service_annotation_prometheus_io_path]
action: replace
target_label: __metrics_path__
regex: (.+)
- source_labels: [__address__, __meta_kubernetes_service_annotation_prometheus_io_port]
action: replace
target_label: __address__
regex: ([^:]+)(?::\d+)?;(\d+)
replacement: $1:$2
EOF
------
[root@k8s-master alertmanager]# vi alert_rules.yml
cat > alert_rules.yml <<\EOF
groups:
- name: node_metrics
rules:
- alert: NodeLoad
expr: node_load15 < 1
for: 2m
annotations:
summary: "{{$labels.instance}}: Low node load detected"
description: "{{$labels.instance}}: node load is below 1 (current value is: {{ $value }}"
EOF
[root@k8s-master alertmanager]# kubectl -n monitor delete cm prometheus-config
configmap "prometheus-config" deleted
[root@k8s-master alertmanager]# kubectl -n monitor create cm prometheus-config --from-file=prometheus.yml --from-file=alert_rules.yml
configmap/prometheus-config created
[root@k8s-master alertmanager]# kubectl -n monitor get cm prometheus-config -oyaml #检查结果是不是正常显示
[root@k8s-master alertmanager]# kubectl -n monitor exec prometheus-7d6799c84c-6mvn7 -- ls /etc/prometheus
Defaulted container "prometheus" out of: prometheus, change-permission-of-directory (init)
alert_rules.yml
prometheus.yml
[root@k8s-master alertmanager]# kubectl -n monitor get po -owide
NAME READY STATUS RESTARTS AGE IP NODE
prometheus-7d6799c84c-6mvn7 1/1 Running 4 42h 10.244.0.101 k8s-master
[root@k8s-master alertmanager]# curl -XPOST 10.244.0.101:9090/-/reload
[root@k8s-master alertmanager]# kubectl -n monitor logs alertmanager-796996c79f-wnnfc |grep "Received alert"
# 有记录就可以去邮箱查看收到的告警信息
告警规则的几个要素：
group.name：告警分组的名称，一个组下可以配置一类告警规则，比如都是物理节点相关的告警alert：告警规则的名称expr：是用于进行报警规则 PromQL 查询语句，expr通常是布尔表达式，可以让Prometheus根据计算的指标值做 true or false 的判断for：评估等待时间（Pending Duration），用于表示只有当触发条件持续一段时间后才发送告警，在等待期间新产生的告警状态为pending，屏蔽掉瞬时的问题，把焦点放在真正有持续影响的问题上labels：自定义标签，允许用户指定额外的标签列表，把它们附加在告警上，可以用于后面做路由判断，通知到不同的终端，通常被用于添加告警级别的标签annotations：指定了另一组标签，它们不被当做告警实例的身份标识，它们经常用于存储一些额外的信息，用于报警信息的展示之类的
规则配置中，支持模板的方式，其中：
- {{$labels}}可以获取当前指标的所有标签，支持{{$labels.instance}}或者{{$labels.job}}这种形式
- {{ $value }}可以获取当前计算出的指标值
更新配置并软重启，并查看Prometheus报警规则。
一个报警信息在生命周期内有下面3种状态：
inactive: 表示当前报警信息处于非活动状态，即不满足报警条件pending: 表示在设置的阈值时间范围内被激活了，即满足报警条件，但是还在观察期内firing: 表示超过设置的阈值时间被激活了，即满足报警条件，且报警触发时间超过了观察期，会发送到Alertmanager端
对于已经 pending 或者 firing 的告警，Prometheus 也会将它们存储到时间序列ALERTS{}中。当然我们也可以通过表达式去查询告警实例：
查看Alertmanager日志：
level=warn ts=2020-07-28T13:43:59.430Z caller=notify.go:674 component=dispatcher receiver=email integration=email[0] msg="Notify attempt failed, will retry later" attempts=1 err="*email.loginAuth auth: 550 User has no permission"
说明告警已经推送到Alertmanager端了，但是邮箱登录的时候报错，这是因为邮箱默认没有开启第三方客户端登录。因此需要登录163邮箱设置SMTP服务允许客户端登录。
自定义webhook实现消息推送¶
自定义webhook实现告警消息的推送¶
目前官方内置的第三方通知集成包括：邮件、 即时通讯软件（如Slack、Hipchat）、移动应用消息推送(如Pushover)和自动化运维工具（例如：Pagerduty、Opsgenie、Victorops）。可以在alertmanager的管理界面中查看到。
每一个receiver具有一个全局唯一的名称，并且对应一个或者多个通知方式：
name: <string>
email_configs:
[ - <email_config>, ... ]
hipchat_configs:
[ - <hipchat_config>, ... ]
slack_configs:
[ - <slack_config>, ... ]
opsgenie_configs:
[ - <opsgenie_config>, ... ]
webhook_configs:
[ - <webhook_config>, ... ]
如果想实现告警消息推送给企业常用的即时聊天工具，如钉钉或者企业微信，如何配置？
Alertmanager的通知方式中还可以支持Webhook，通过这种方式开发者可以实现更多个性化的扩展支持。
# 警报接收者
receivers:
#ops
- name: 'demo-webhook'
webhook_configs:
- send_resolved: true
url: http://demo-webhook/alert/send
当我们配置了上述webhook地址，则当告警路由到alertmanager时，alertmanager端会向webhook地址推送POST请求：
$ curl -X POST -d"$demoAlerts" http://demo-webhook/alert/send
$ echo $demoAlerts
{
"version": "4",
"groupKey": <string>, alerts (e.g. to deduplicate) ,
"status": "<resolved|firing>",
"receiver": <string>,
"groupLabels": <object>,
"commonLabels": <object>,
"commonAnnotations": <object>,
"externalURL": <string>, // backlink to the Alertmanager.
"alerts":
[{
"labels": <object>,
"annotations": <object>,
"startsAt": "<rfc3339>",
"endsAt": "<rfc3339>"
}]
}
因此，假如我们想把报警消息自动推送到钉钉群聊，只需要：
- 实现一个webhook，部署到k8s集群
- 接收POST请求，将Alertmanager传过来的数据做解析，调用dingtalk的API，实现消息推送
- 配置alertmanager的receiver为webhook地址
如何给钉钉群聊发送消息？ 钉钉机器人
钉钉群聊机器人设置：
每个群聊机器人在创建的时候都会生成唯一的一个访问地址：
https://oapi.dingtalk.com/robot/send?access_token=f628f749a7ad70e86ca7bcb68658d0ce5af7c201ce8ce32acaece4c592364ca9
这样，我们就可以使用如下方式来模拟给群聊机器人发送请求，实现消息的推送：
curl 'https://oapi.dingtalk.com/robot/send?access_token=f628f749a7ad70e86ca7bcb68658d0ce5af7c201ce8ce32acaece4c592364ca9' \
-H 'Content-Type: application/json' \
-d '{"msgtype": "text","text": {"content": "我就是我, 是不一样的烟火"}}'
# 开发群
curl 'https://oapi.dingtalk.com/robot/send?access_token=740b792c8b2a02d4ead9826263b562c36e8e30d9d15bc5b9de1712fa7d469744' \
-H 'Content-Type: application/json' \
-d '{"msgtype": "text","text": {"content": "我就是我, 是不一样的烟火"}}'
# 业务告警群
curl 'https://oapi.dingtalk.com/robot/send?access_token=71060597773f564f36b3aca0e17c7835c6950ea706a8cf1d1b8b8f1efcc15683' \
-H 'Content-Type: application/json' \
-d '{"msgtype": "text","text": {"content": "我就是我, 是不一样的烟火"}}'
https://gitee.com/agagin/prometheus-webhook-dingtalk
程康华/prometheus-webhook-dingtalk (gitee.com)
镜像地址：timonwong/prometheus-webhook-dingtalk:master
二进制运行：
假如使用如下配置：
targets:
webhook_dev:
url: https://oapi.dingtalk.com/robot/send?access_token=740b792c8b2a02d4ead9826263b562c36e8e30d9d15bc5b9de1712fa7d469744
webhook_ops:
url: https://oapi.dingtalk.com/robot/send?access_token=71060597773f564f36b3aca0e17c7835c6950ea706a8cf1d1b8b8f1efcc15683
则prometheus-webhook-dingtalk启动后会自动支持如下API的POST访问：
这样可以使用一个prometheus-webhook-dingtalk来实现多个钉钉群的webhook地址
部署prometheus-webhook-dingtalk，从Dockerfile可以得知需要注意的点：
- 默认使用配置文件
/etc/prometheus-webhook-dingtalk/config.yml，可以通过configmap挂载 - 该目录下还有模板文件，因此需要使用subpath的方式挂载
- 部署Service，作为Alertmanager的默认访问，服务端口默认8060
配置文件：
[root@k8s-master alertmanager]# mkdir webhook
[root@k8s-master alertmanager]# cd webhook
cat > webhook-dingtalk-configmap.yaml <<\EOF
apiVersion: v1
data:
config.yml: |
targets:
webhook_dev:
url: https://oapi.dingtalk.com/robot/send?access_token=740b792c8b2a02d4ead9826263b562c36e8e30d9d15bc5b9de1712fa7d469744
webhook_ops:
url: https://oapi.dingtalk.com/robot/send?access_token=71060597773f564f36b3aca0e17c7835c6950ea706a8cf1d1b8b8f1efcc15683
kind: ConfigMap
metadata:
name: webhook-dingtalk-config
namespace: monitor
EOF
# kubectl create -f webhook-dingtalk-configmap.yaml
# kubectl -n monitor get cm
# kubectl -n monitor get cm webhook-dingtalk-config -oyaml
Deployment和Service
cat > webhook-dingtalk-deploy.yaml <<\EOF
apiVersion: apps/v1
kind: Deployment
metadata:
name: webhook-dingtalk
namespace: monitor
spec:
selector:
matchLabels:
app: webhook-dingtalk
template:
metadata:
labels:
app: webhook-dingtalk
spec:
containers:
- name: webhook-dingtalk
image: timonwong/prometheus-webhook-dingtalk:master
args:
- "--config.file=/etc/prometheus-webhook-dingtalk/config.yml"
imagePullPolicy: IfNotPresent
volumeMounts:
- mountPath: "/etc/prometheus-webhook-dingtalk/config.yml"
name: config
subPath: config.yml
ports:
- containerPort: 8060
name: http
resources:
requests:
cpu: 50m
memory: 100Mi
limits:
cpu: 50m
memory: 100Mi
volumes:
- name: config
configMap:
name: webhook-dingtalk-config
items:
- key: config.yml
path: config.yml
---
apiVersion: v1
kind: Service
metadata:
name: webhook-dingtalk
namespace: monitor
spec:
selector:
app: webhook-dingtalk
ports:
- name: hook
port: 8060
targetPort: http
EOF
[root@k8s-master webhook]# kubectl apply -f webhook-dingtalk-deploy.yaml
deployment.apps/webhook-dingtalk created
创建：
$ kubectl apply -f webhook-dingtalk-configmap.yaml
$ kubectl apply -f webhook-dingtalk-deploy.yaml
[root@k8s-master webhook]# kubectl -n monitor get po -owide
NAME READY STATUS RESTARTS AGE IP NODE
webhook-dingtalk-7d98bd5db8-zm2h2 1/1 Running 0 115s 10.244.2.100 k8s-slave2
# 查看日志，可以得知当前的可用webhook日志
# kubectl -n monitor logs -f webhook-dingtalk-7d98bd5db8-zm2h2
level=info ts=2022-10-27T14:48:55.088Z caller=main.go:60 msg="Starting prometheus-webhook-dingtalk" version="(version=2.0.0, branch=master, revision=4e77a3cc3e7a23fcb18b33826bce8d2904583465)"
level=info ts=2022-10-27T14:48:55.284Z caller=main.go:61 msg="Build context" (gogo1.16.7,userroot@337ecc9a2774,date20210819-13:17:15)=(MISSING)
level=info ts=2022-10-27T14:48:55.285Z caller=coordinator.go:83 component=configuration file=/etc/prometheus-webhook-dingtalk/config.yml msg="Loading configuration file"
level=info ts=2022-10-27T14:48:55.285Z caller=coordinator.go:91 component=configuration file=/etc/prometheus-webhook-dingtalk/config.yml msg="Completed loading of configuration file"
level=info ts=2022-10-27T14:48:55.285Z caller=main.go:98 component=configuration msg="Loading templates" templates=
ts=2022-10-27T14:48:55.286Z caller=main.go:114 component=configuration msg="Webhook urls for prometheus alertmanager" urls="http://localhost:8060/dingtalk/webhook_dev/send http://localhost:8060/dingtalk/webhook_ops/send"
level=info ts=2022-10-27T14:48:55.286Z caller=web.go:210 component=web msg="Start listening for connections" address=:8060
修改Alertmanager路由及webhook配置：
$ kubectl -n monitor edit configmap alertmanager
apiVersion: v1
kind: ConfigMap
metadata:
name: alertmanager
namespace: monitor
data:
config.yml: |-
global:
# 当alertmanager持续多长时间未接收到告警后标记告警状态为 resolved
resolve_timeout: 5m
# 配置邮件发送信息
smtp_smarthost: 'smtp.163.com:25'
smtp_from: '343264992@163.com'
smtp_auth_username: '343264992@163.com'
# 注意这里不是邮箱密码，是邮箱开启第三方客户端登录后的授权码
smtp_auth_password: 'TTDIQQDRGRNEWJGI'
smtp_require_tls: false
# 所有报警信息进入后的根路由，用来设置报警的分发策略
route:
# 按照告警名称分组
group_by: ['alertname']
# 当一个新的报警分组被创建后，需要等待至少 group_wait 时间来初始化通知，这种方式可以确保您能有足够的时间为同一分组来获取多个警报，然后一起触发这个报警信息。
group_wait: 30s
# 相同的group之间发送告警通知的时间间隔
group_interval: 30s
# 如果一个报警信息已经发送成功了，等待 repeat_interval 时间来重新发送他们，不同类型告警发送频率需要具体配置
repeat_interval: 1m
# 默认的receiver：如果一个报警没有被一个route匹配，则发送给默认的接收器
receiver: default
# 路由树，默认继承global中的配置，并且可以在每个子路由上进行覆盖。
routes:
- {}
receivers:
- name: 'default'
email_configs:
- to: '343264992@qq.com'
send_resolved: true # 接受告警恢复的通知
webhook_configs:
- send_resolved: true
url: http://localhost:8060/dingtalk/webhook_dev/send
[root@k8s-master alertmanager]# kubectl -n monitor logs -f alertmanager-796996c79f-wnnfc
验证钉钉消息是否正常收到。
动态告警配置¶
基于Label的动态告警处理¶
真实的场景中，我们往往期望可以给告警设置级别，而且可以实现不同的报警级别可以由不同的receiver接收告警消息。
Alertmanager中路由负责对告警信息进行分组匹配，并向告警接收器发送通知。告警接收器可以通过以下形式进行配置：
routes:
- receiver: ops
group_wait: 10s
match:
severity: critical
- receiver: dev
group_wait: 10s
match_re:
severity: normal|middle
receivers:
- ops
...
- dev
...
- <receiver> ...
因此可以为了更全面的感受报警的逻辑，我们再添加两个报警规则：
cat > alert_rules.yml <<\EOF
groups:
- name: node_metrics
rules:
- alert: NodeLoad
expr: node_load15 < 1
for: 2m
labels:
severity: normal
annotations:
summary: "{{$labels.instance}}: Low node load detected"
description: "{{$labels.instance}}: node load is below 1 (current value is: {{ $value }}"
- alert: NodeMemoryUsage
expr: (node_memory_MemTotal_bytes - (node_memory_MemFree_bytes + node_memory_Buffers_bytes + node_memory_Cached_bytes)) / node_memory_MemTotal_bytes * 100 > 30
for: 2m
labels:
severity: critical
annotations:
summary: "{{$labels.instance}}: High Memory usage detected"
description: "{{$labels.instance}}: Memory usage is above 40% (current value is: {{ $value }}"
- name: targets_status
rules:
- alert: TargetStatus
expr: up == 0
for: 1m
labels:
severity: critical
annotations:
summary: "{{$labels.instance}}: prometheus target down"
description: "{{$labels.instance}}: prometheus target down，job is {{$labels.job}}"
EOF
[root@k8s-master alertmanager]# kubectl -n monitor delete cm prometheus-config
[root@k8s-master alertmanager]# kubectl -n monitor create cm prometheus-config --from-file=prometheus.yml --from-file=alert_rules.yml
# 查看文件是不是生效
# kubectl -n monitor get po
# kubectl -n monitor exec prometheus-7d6799c84c-6mvn7 -- cat /etc/prometheus/alert_rules.yml
# curl -XPOST 10.244.0.119:9090/-/reload # prometheus pod ip地址
我们为不同的报警规则设置了不同的标签，如severity: critical，针对规则中的label，来配置alertmanager路由规则，实现转发给不同的接收者。
$ cat alertmanager-configmap.yaml
apiVersion: v1
kind: ConfigMap
metadata:
name: alertmanager
namespace: monitor
data:
config.yml: |-
global:
# 当alertmanager持续多长时间未接收到告警后标记告警状态为 resolved
resolve_timeout: 5m
# 配置邮件发送信息
smtp_smarthost: 'smtp.163.com:25'
smtp_from: '343264992@163.com'
smtp_auth_username: '343264992@163.com'
# 注意这里不是邮箱密码，是邮箱开启第三方客户端登录后的授权码
smtp_auth_password: 'TTDIQQDRGRNEWJGI'
smtp_require_tls: false
# 所有报警信息进入后的根路由，用来设置报警的分发策略
route:
# 按照告警名称分组
group_by: ['alertname']
# 当一个新的报警分组被创建后，需要等待至少 group_wait 时间来初始化通知，这种方式可以确保您能有足够的时间为同一分组来获取多个警报，然后一起触发这个报警信息。
group_wait: 30s
# 相同的group之间发送告警通知的时间间隔
group_interval: 30s
# 如果一个报警信息已经发送成功了，等待 repeat_interval 时间来重新发送他们，不同类型告警发送频率需要具体配置
repeat_interval: 1m
# 默认的receiver：如果一个报警没有被一个route匹配，则发送给默认的接收器
receiver: default
# 路由树，默认继承global中的配置，并且可以在每个子路由上进行覆盖。
routes:
- receiver: critical_alerts
group_wait: 10s
match:
severity: critical
- receiver: normal_alerts
group_wait: 10s
match_re:
severity: normal|middle
receivers:
- name: 'default'
email_configs:
- to: '343264992@qq.com'
send_resolved: true # 接受告警恢复的通知
- name: 'critical_alerts'
webhook_configs:
- send_resolved: true
url: http://localhost:8060/dingtalk/webhook_ops/send
- name: 'normal_alerts'
webhook_configs:
- send_resolved: true
url: http://localhost:8060/dingtalk/webhook_dev/send
[root@k8s-master webhook]# kubectl -n monitor edit cm alertmanager
再配置一个钉钉机器人，修改webhook-dingtalk的配置，添加webhook_ops的配置：
cat > webhook-dingtalk-configmap.yaml <<\EOF
apiVersion: v1
data:
config.yml: |
targets:
webhook_dev:
url: https://oapi.dingtalk.com/robot/send?access_token=740b792c8b2a02d4ead9826263b562c36e8e30d9d15bc5b9de1712fa7d469744
webhook_ops:
url: https://oapi.dingtalk.com/robot/send?access_token=71060597773f564f36b3aca0e17c7835c6950ea706a8cf1d1b8b8f1efcc15683
kind: ConfigMap
metadata:
name: webhook-dingtalk-config
namespace: monitor
EOF
[root@k8s-master webhook]# kubectl apply -f webhook-dingtalk-configmap.yaml
---- 文件操作
[root@k8s-master webhook]# vi webhook-dingtalk-configmap.yaml
[root@k8s-master webhook]# cat webhook-dingtalk-configmap.yaml
targets:
webhook_dev:
url: https://oapi.dingtalk.com/robot/send?access_token=740b792c8b2a02d4ead9826263b562c36e8e30d9d15bc5b9de1712fa7d469744
webhook_ops:
url: https://oapi.dingtalk.com/robot/send?access_token=71060597773f564f36b3aca0e17c7835c6950ea706a8cf1d1b8b8f1efcc15683
[root@k8s-master webhook]# kubectl -n monitor delete cm webhook-dingtalk-config
[root@k8s-master webhook]# kubectl -n monitor create cm webhook-dingtalk-config --from-file=webhook-dingtalk-configmap.yaml
[root@k8s-master webhook]# kubectl -n monitor get cm webhook-dingtalk-config -oyaml
# 重启容器
[root@k8s-master alertmanager]# kubectl -n monitor get deploy
NAME READY UP-TO-DATE AVAILABLE AGE
alertmanager 1/1 1 1 13h
[root@k8s-master alertmanager]# kubectl -n monitor scale deployment alertmanager --replicas=0
deployment.apps/alertmanager scaled
[root@k8s-master alertmanager]# kubectl -n monitor scale deployment alertmanager --replicas=1
deployment.apps/alertmanager scaled
分别更新Prometheus和Alertmanager配置，查看报警的发送。
抑制和静默¶
前面我们知道，告警的group(分组)功能通过把多条告警数据聚合，有效的减少告警的频繁发送。除此之外，Alertmanager还支持Inhibition(抑制) 和 Silences(静默)，帮助我们抑制或者屏蔽报警。
- Inhibition 抑制
抑制是当出现其它告警的时候压制当前告警的通知，可以有效的防止告警风暴。
比如当机房出现网络故障时，所有服务都将不可用而产生大量服务不可用告警，但这些警告并不能反映真实问题在哪，真正需要发出的应该是网络故障告警。当出现网络故障告警的时候，应当抑制服务不可用告警的通知。
在Alertmanager配置文件中，使用inhibit_rules定义一组告警的抑制规则：
每一条抑制规则的具体配置如下：
target_match:
[ <labelname>: <labelvalue>, ... ]
target_match_re:
[ <labelname>: <regex>, ... ]
source_match:
[ <labelname>: <labelvalue>, ... ]
source_match_re:
[ <labelname>: <regex>, ... ]
[ equal: '[' <labelname>, ... ']' ]
当已经发送的告警通知匹配到target_match或者target_match_re规则，当有新的告警规则如果满足source_match或者定义的匹配规则，并且已发送的告警与新产生的告警中equal定义的标签完全相同，则启动抑制机制，新的告警不会发送。
例如，定义如下抑制规则：
- source_match:
alertname: NodeDown
severity: critical
target_match:
severity: critical
equal:
- node
如当集群中的某一个主机节点异常宕机导致告警NodeDown被触发，同时在告警规则中定义了告警级别severity=critical。由于主机异常宕机，该主机上部署的所有服务，中间件会不可用并触发报警。根据抑制规则的定义，如果有新的告警级别为severity=critical，并且告警中标签node的值与NodeDown告警的相同，则说明新的告警是由NodeDown导致的，则启动抑制机制停止向接收器发送通知。
演示：实现如果 NodeMemoryUsage 报警触发，则抑制NodeLoad指标规则引起的报警。
inhibit_rules:
- source_match:
alertname: NodeMemoryUsage
severity: critical
target_match:
severity: normal;
equal:
- instance
- Silences： 静默
简单直接的在指定时段关闭告警。静默通过匹配器（Matcher）来配置，类似于路由树。警告进入系统的时候会检查它是否匹配某条静默规则，如果是则该警告的通知将忽略。 静默规则在Alertmanager的 Web 界面里配置。

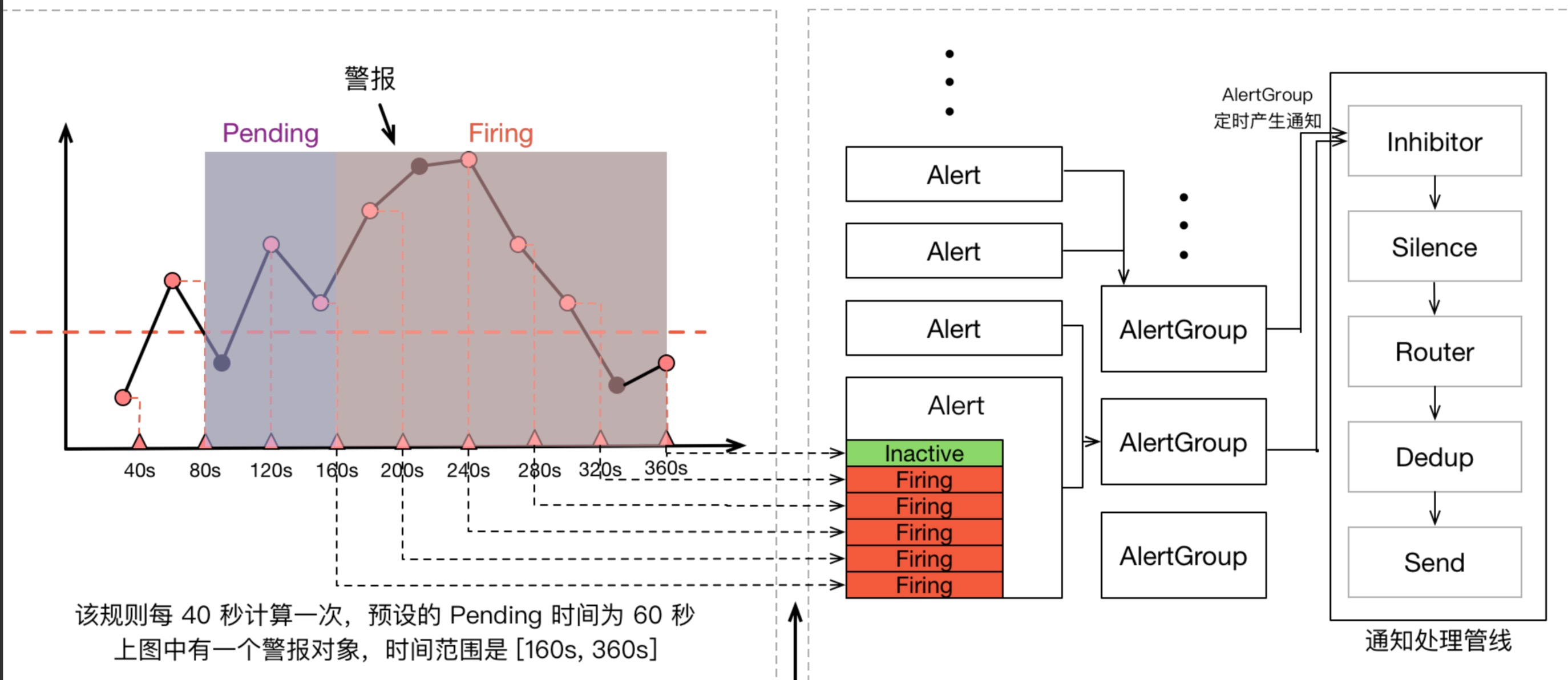

一条告警产生后，还要经过 Alertmanager 的分组、抑制处理、静默处理、去重处理和降噪处理最后再发送给接收者。这个过程中可能会因为各种原因会导致告警产生了却最终没有进行通知，可以通过下图了解整个告警的生命周期：
k8s-prometheus-adaptor安装配置¶

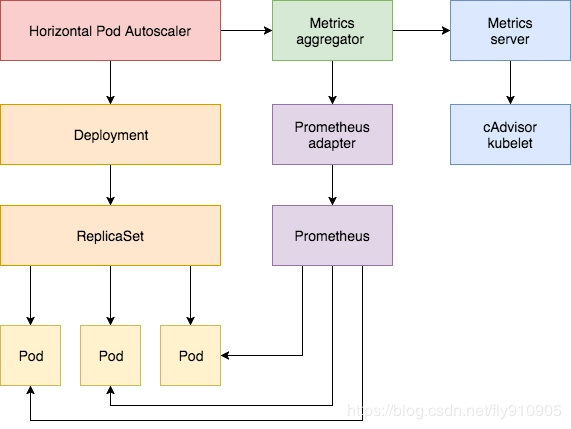

自定义指标实现业务伸缩¶
Kubernetes Metrics API体系回顾¶
前面章节，我们讲过基于CPU和内存的HPA，即利用metrics-server及HPA，可以实现业务服务可以根据pod的cpu和内存进行弹性伸缩。

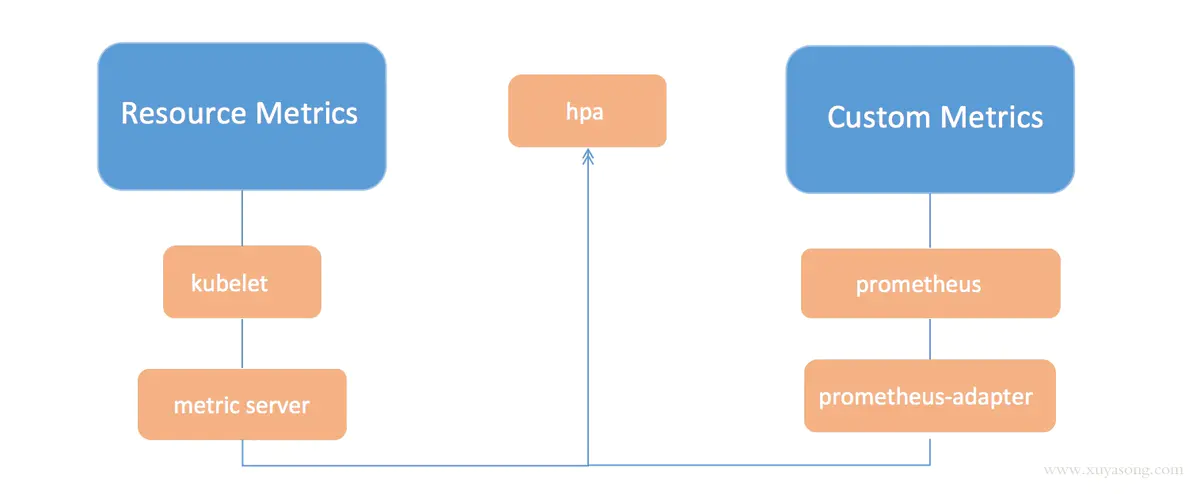

k8s对监控接口进行了标准化：
- Resource Metrics
对应的接口是 metrics.k8s.io，主要的实现就是 metrics-server

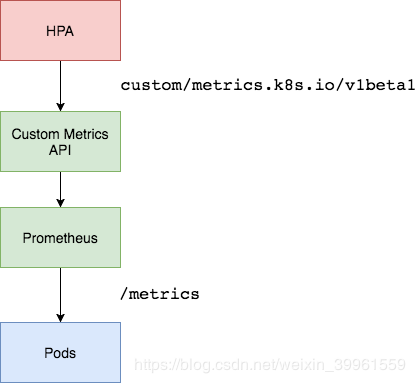

- Custom Metrics
对应的接口是 custom.metrics.k8s.io，主要的实现是 Prometheus， 它提供的是资源监控和自定义监控
安装完metrics-server后，利用kube-aggregator的功能，实现了metrics api的注册。可以通过如下命令
HPA通过使用该API获取监控的CPU和内存资源：
# 查询nodes节点的cpu和内存数据
$ kubectl get --raw="/apis/metrics.k8s.io/v1beta1/nodes"|jq
$ kubectl get --raw="/apis/metrics.k8s.io/v1beta1/pods"|jq
# 若本机没有安装jq命令，可以参考如下方式进行安装
$ wget http://dl.fedoraproject.org/pub/epel/epel-release-latest-7.noarch.rpm
$ rpm -ivh epel-release-latest-7.noarch.rpm
$ yum install -y jq
同样，为了实现通用指标的采集，需要部署Prometheus Adapter，来提供custom.metrics.k8s.io，作为HPA获取通用指标的入口。
Adapter安装对接¶
项目地址为： https://github.com/DirectXMan12/k8s-prometheus-adapter
$ git clone -b v0.8.4 https://github.com/DirectXMan12/k8s-prometheus-adapter.git
[root@k8s-master ~]# cd k8s-prometheus-adapter/
[root@k8s-master k8s-prometheus-adapter]# git remote -v
origin https://github.com/DirectXMan12/k8s-prometheus-adapter.git (fetch)
origin https://github.com/DirectXMan12/k8s-prometheus-adapter.git (push)
查看部署说明 https://github.com/DirectXMan12/k8s-prometheus-adapter/tree/v0.8.4/deploy
-
镜像使用官方提供的v0.8.4最新版 https://hub.docker.com/r/directxman12/k8s-prometheus-adapter/tags
-
准备证书
[root@k8s-master k8s-prometheus-adapter]# cd deploy/
[root@k8s-master deploy]# mkdir cert;cd cert
$ export PURPOSE=serving
$ openssl req -x509 -sha256 -new -nodes -days 3650 -newkey rsa:2048 -keyout ${PURPOSE}.key -out ${PURPOSE}.crt -subj "/CN=ca"
$ kubectl -n monitor create secret generic cm-adapter-serving-certs --from-file=./serving.crt --from-file=./serving.key
# 查看证书
$ kubectl -n monitor describe secret cm-adapter-serving-certs
[root@k8s-master cert]# cd ../
[root@k8s-master deploy]# cd manifests/
[root@k8s-master manifests]# pwd
/root/k8s-prometheus-adapter/deploy/manifests
[root@k8s-master manifests]# ll
总用量 44
-rw-r--r--. 1 root root 312 10月 28 10:30 custom-metrics-apiserver-auth-delegator-cluster-role-binding.yaml
-rw-r--r--. 1 root root 333 10月 28 10:30 custom-metrics-apiserver-auth-reader-role-binding.yaml
-rw-r--r--. 1 root root 1416 10月 28 10:30 custom-metrics-apiserver-deployment.yaml
-rw-r--r--. 1 root root 315 10月 28 10:30 custom-metrics-apiserver-resource-reader-cluster-role-binding.yaml
-rw-r--r--. 1 root root 107 10月 28 10:30 custom-metrics-apiserver-service-account.yaml
-rw-r--r--. 1 root root 196 10月 28 10:30 custom-metrics-apiserver-service.yaml
-rw-r--r--. 1 root root 979 10月 28 10:30 custom-metrics-apiservice.yaml
-rw-r--r--. 1 root root 217 10月 28 10:30 custom-metrics-cluster-role.yaml
-rw-r--r--. 1 root root 3817 10月 28 10:30 custom-metrics-config-map.yaml
-rw-r--r--. 1 root root 219 10月 28 10:30 custom-metrics-resource-reader-cluster-role.yaml
-rw-r--r--. 1 root root 313 10月 28 10:30 hpa-custom-metrics-cluster-role-binding.yaml
- 替换命名空间
# 资源清单文件默认用的命名空间是custom-metrics，替换为本例中使用的monitor
$ sed -i 's/namespace: custom-metrics/namespace: monitor/g' manifests/*
[root@k8s-master deploy]# sed -i 's/namespace: custom-metrics/namespace: monitor/g' manifests/*
- 配置adapter对接的Prometheus地址
# 由于adapter会和Prometheus交互，因此需要配置对接的Prometheus地址
# 替换掉28行：yamls/custom-metrics-apiserver-deployment.yaml 中的--prometheus-url
$ vim manifests/custom-metrics-apiserver-deployment.yaml
...
18 spec:
19 serviceAccountName: custom-metrics-apiserver
20 containers:
21 - name: custom-metrics-apiserver
22 image: directxman12/k8s-prometheus-adapter-amd64:v0.7.0 #修改
23 args:
24 - --secure-port=6443
25 - --tls-cert-file=/var/run/serving-cert/serving.crt
26 - --tls-private-key-file=/var/run/serving-cert/serving.key
27 - --logtostderr=true
28 - --prometheus-url=http://prometheus:9090/ #修改
29 - --metrics-relist-interval=1m
30 - --v=10
31 - --config=/etc/adapter/config.yaml
...
- 部署服务
$ mv manifests/custom-metrics-config-map.yaml .
$ vi manifests/custom-metrics-configmap.yaml
apiVersion: v1
kind: ConfigMap
metadata:
name: adapter-config
namespace: monitor
data:
config.yaml: |
rules:
- {}
$ kubectl apply -f manifests/
验证一下：
[root@k8s-master deploy]# kubectl -n monitor get po |grep custom
custom-metrics-apiserver-5fb669c8c5-74sdd 1/1 Running 0 54s
$ kubectl api-versions|grep metrics
custom.metrics.k8s.io/v1beta1
custom.metrics.k8s.io/v1beta2
external.metrics.k8s.io/v1beta1
metrics.k8s.io/v1beta1
$ kubectl get --raw /apis/custom.metrics.k8s.io/v1beta2 |jq
{
"kind": "APIResourceList",
"apiVersion": "v1",
"groupVersion": "custom.metrics.k8s.io/v1beta2",
"resources": []
}
配置自定义指标¶
通用指标示例程序部署¶
为了演示效果，我们新建一个deployment来模拟业务应用。
cat > custom-metrics-demo.yaml <<\EOF
apiVersion: apps/v1
kind: Deployment
metadata:
name: custom-metrics-demo
spec:
replicas: 1
selector:
matchLabels:
app: custom-metrics-demo
template:
metadata:
labels:
app: custom-metrics-demo
spec:
containers:
- name: custom-metrics-demo
image: luxas/autoscale-demo:v0.1.2
resources:
limits:
cpu: 50m
requests:
cpu: 50m
EOF
部署：
$ kubectl apply -f custom-metrics-demo.yaml
$ kubectl get po -o wide
custom-metrics-demo-95b5bc949-xpppl 1/1 Running 0 65s 10.244.2.105
$ curl 10.244.2.105:8080/metrics
# HELP http_requests_total The amount of requests served by the server in total
# TYPE http_requests_total counter
http_requests_total 1
注册为Prometheus的target：
cat > custom-metrics-demo-svc.yaml <<\EOF
apiVersion: v1
kind: Service
metadata:
name: custom-metrics-demo
annotations:
prometheus.io/scrape: "true"
prometheus.io/port: "8080"
spec:
ports:
- port: 80
targetPort: 8080
name: http
selector:
app: custom-metrics-demo
type: ClusterIP
EOF
[root@k8s-master k8s-prometheus-adapter]# kubectl apply -f custom-metrics-demo-svc.yaml
service/custom-metrics-demo created
[root@k8s-master k8s-prometheus-adapter]# kubectl get po
NAME READY STATUS RESTARTS AGE
custom-metrics-demo-84cfff78fb-pl577 1/1 Running 0 60m
nfs-pvc-7cd57855b4-bb7wl 1/1 Running 14 7d8h
[root@k8s-master k8s-prometheus-adapter]# kubectl get svc
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
custom-metrics-demo ClusterIP 10.97.236.195 <none> 80/TCP 12s
kubernetes ClusterIP 10.96.0.1 <none> 443/TCP 18d
nginx ClusterIP None <none> 80/TCP 4d8h
[root@k8s-master k8s-prometheus-adapter]# kubectl get deploy
NAME READY UP-TO-DATE AVAILABLE AGE
custom-metrics-demo 2/2 2 2 89m
nfs-pvc 1/1 1 1 7d9h
[root@k8s-master k8s-prometheus-adapter]# kubectl scale deployment custom-metrics-demo --replicas=2
deployment.apps/custom-metrics-demo scaled
自动注册为Prometheus的采集Targets。
通常web类的应用，会把每秒钟的请求数作为业务伸缩的指标依据。
实践：
使用案例应用custom-metrics-demo，如果custom-metrics-demo最近1分钟内每秒钟的请求数超过10次，则自动扩充业务应用的副本数。
- 配置自定义指标
告诉Adapter去采集转换哪些指标，Adapter支持转换的指标，才可以作为HPA的依据
- 配置HPA规则
apiVersion: autoscaling/v2beta1
kind: HorizontalPodAutoscaler
metadata:
name: front-app-hpa
namespace: default
spec:
scaleTargetRef:
apiVersion: apps/v1
kind: Deployment
name: custom-metrics-demo
minReplicas: 1
maxReplicas: 3
metrics:
- type: Pods
pods:
metricName: http_requests_per_second
targetAverageValue: 10
Adapter配置自定义指标¶
思考：
前面讲CPU的平均使用率的采集，其实是通过node_cpu_seconds_total指标计算得到的。
^
│ . . . . . . . . . . . . . . . . . . . node_cpu{cpu="cpu0",mode="idle"}
│ . . . . . . . . . . . . . . . . . . . node_cpu{cpu="cpu0",mode="system"}
│ . . . . . . . . . . . . . . . . . . node_load1{}
│ . . . . . . . . . . . . . . . . . . node_cpu_seconds_total{...}
v
<------------------ 时间 ---------------->
同样，如果想获得每个业务应用最近1分钟内每秒的访问次数，也是根据总数来做计算，因此，需要使用业务自定义指标http_requests_total，配合rate方法即可获取每秒钟的请求数。
# 浏览器http://prometheus.luffy.com/graph 查询
rate(http_requests_total[2m])
# 如查询有多条数据，需做汇聚，需要使用sum
sum(rate(http_requests_total[2m])) by(kubernetes_pod_name)
- 自定义指标可以配置多个，因此，需要将规则使用数组来配置
- 告诉Adapter，哪些自定义指标可以使用
seriesQuery是PromQL语句，和直接用http_requests_total查询到的结果一样，凡是seriesQuery可以查询到的指标，都可以用作自定义指标
- 告诉Adapter，指标中的标签和k8s中的资源对象的关联关系
rules:
- seriesQuery: 'http_requests_total{}'
resources:
overrides:
kubernetes_namespace: {resource: "namespace"}
kubernetes_pod_name: {resource: "pod"}
# http://prometheus.luffy.com/graph 搜索 container_threads 里面对应是这里的namespace 和pod 一样的名称
hpa 拿着k8s里的namepace和pod名称，来查询adaptor，adaptor去查询Prometheus的时候根据resources的适配来转换，namepace=default, pod=front-app-xxxx, kubernetes_namespace="default"
我们查询到的可用指标格式为：
http_requests_total{instance="10.244.2.140:8080", job="kubernetes-sd-endpoints", kubernetes_name="custom-metrics-demo", kubernetes_namespace="default", kubernetes_pod_name="front-app-df5fc79dd-rmzr6", namespace="default", pod="front-app-df5fc79dd-rmzr6"}
由于HPA在调用Adapter接口的时候，告诉Adapter的是查询哪个命名空间下的哪个Pod的指标，因此，Adapter在去查询的时候，需要做一层适配转换（因为并不是每个prometheus查询到的结果中都是叫做kubernetes_namespace和kubernetes_pod_name）
/apis/custom.metrics.k8s.io/v1beta2/namespaces/default/pods/xxx/http_requests_total
- 指定自定义的指标名称，供HPA配置使用
rules:
- seriesQuery: 'http_requests_total{}'
resources:
overrides:
kubernetes_namespace: {resource: "namespace"}
kubernetes_pod_name: {resource: "pod"}
name:
as: "http_requests_per_second"
因为Adapter转换完之后的指标含义为：每秒钟的请求数。因此提供指标名称，该配置根据正则表达式做了匹配替换，转换完后的指标名称为：http_requests_per_second，HPA规则中可以直接配置该名称。
- 告诉Adapter如何获取最终的自定义指标值
rules:
- seriesQuery: 'http_requests_total{}'
resources:
overrides:
kubernetes_namespace: {resource: "namespace"}
kubernetes_pod_name: {resource: "pod"}
name:
as: "http_requests_per_second"
metricsQuery: 'sum(rate(<<.Series>>{<<.LabelMatchers>>}[2m])) by (<<.GroupBy>>)'
我们最终期望的写法可能是这样：
sum(rate(http_requests_total{kubernetes_namespace="default",kubernetes_pod_name="xxxx"}[2m])) by (kubernetes_pod_name)
但是Adapter提供了更简单的写法：
Series
- 指标名称
LabelMatchers: 指标查询的labelGroupBy: 结果分组，针对HPA过来的查询，都会匹配成kubernetes_pod_name
更新Adapter的配置：
[root@k8s-master deploy]# vi manifests/custom-metrics-configmap.yaml
$ vi custom-metrics-configmap.yaml
apiVersion: v1
kind: ConfigMap
metadata:
name: adapter-config
namespace: monitor
data:
config.yaml: |
rules:
- seriesQuery: 'http_requests_total'
seriesFilters: []
resources:
overrides:
kubernetes_namespace: {resource: "namespace"}
kubernetes_pod_name: {resource: "pod"}
name:
as: "http_requests_per_second"
metricsQuery: (sum(rate(<<.Series>>{<<.LabelMatchers>>}[1m])) by (<<.GroupBy>>))
需要更新configmap并重启adapter服务：
$ kubectl apply -f custom-metrics-configmap.yaml
[root@k8s-master deploy]# kubectl -n monitor get po
NAME READY STATUS RESTARTS AGE
custom-metrics-apiserver-5fb669c8c5-74sdd 1/1 Running 0 120m
[root@k8s-master deploy]# kubectl -n monitor delete po custom-metrics-apiserver-5fb669c8c5-74sdd #重启po
再次查看可用的指标数据：
$ kubectl get --raw /apis/custom.metrics.k8s.io/v1beta1 |jq #这里暂时没出这个结果
{
"kind": "APIResourceList",
"apiVersion": "v1",
"groupVersion": "custom.metrics.k8s.io/v1beta2",
"resources": [
{
"name": "namespaces/http_requests_per_second",
"singularName": "",
"namespaced": false,
"kind": "MetricValueList",
"verbs": [
"get"
]
},
{
"name": "pods/http_requests_per_second",
"singularName": "",
"namespaced": true,
"kind": "MetricValueList",
"verbs": [
"get"
]
}
]
}
# 解决上面问题
[root@k8s-master alertmanager]# kubectl -n monitor get cm
[root@k8s-master alertmanager]# kubectl -n monitor edit cm prometheus-config
replacement: $1:$2 #下面内容增加
- source_labels: [__meta_kubernetes_namespace]
action: replace
target_label: kubernetes_namespace
- source_labels: [__meta_kubernetes_service_name]
action: replace
target_label: kubernetes_service_name
- source_labels: [__meta_kubernetes_pod_name]
action: replace
target_label: kubernetes_pod_name
[root@k8s-master alertmanager]# kubectl -n monitor delete po custom-metrics-apiserver-5fb669c8c5-mv2q8 # 重启po
[root@k8s-master alertmanager]# kubectl -n monitor delete po prometheus-7d6799c84c-6mvn7 # 等待几分钟
实际中，hpa会去对如下地址发起请求，获取数据：
$ kubectl get --raw /apis/custom.metrics.k8s.io/v1beta2/namespaces/default/pods/*/http_requests_per_second |jq
{
"kind": "MetricValueList",
"apiVersion": "custom.metrics.k8s.io/v1beta2",
"metadata": {
"selfLink": "/apis/custom.metrics.k8s.io/v1beta2/namespaces/default/pods/%2A/http_requests_per_second"
},
"items": [
{
"describedObject": {
"kind": "Pod",
"namespace": "default",
"name": "front-app-df5fc79dd-rmzr6",
"apiVersion": "/v1"
},
"metric": {
"name": "http_requests_per_second",
"selector": null
},
"timestamp": "2021-07-02T09:24:12Z",
"value": "33m"
}
]
}
其中33m等于0.033，即当前指标查询每秒钟请求数为0.033次.
我们发现有两个可用的resources，引用官方的一段解释：
Notice that we get an entry for both "pods" and "namespaces" -- the adapter exposes the metric on each resource that we've associated the metric with (and all namespaced resources must be associated with a namespace), and will fill in the <<.GroupBy>> section with the appropriate label depending on which we ask for.
We can now connect to $KUBERNETES/apis/custom.metrics.k8s.io/v1beta1/namespaces/default/pods/*/nginx_vts_server_requests_per_second, and we should see
https://github.com/DirectXMan12/k8s-prometheus-adapter/blob/master/docs/config-walkthrough.md
https://github.com/DirectXMan12/k8s-prometheus-adapter/blob/master/docs/config.md
配置hpa实现自定义指标自动扩缩容¶
配置HPA实现自定义指标的业务伸缩¶
cat > hpa-custom-metrics.yaml <<\EOF
apiVersion: autoscaling/v2beta1
kind: HorizontalPodAutoscaler
metadata:
name: custom-metrics-demo
namespace: default
spec:
scaleTargetRef:
apiVersion: apps/v1
kind: Deployment
name: custom-metrics-demo
minReplicas: 1
maxReplicas: 3
metrics:
- type: Pods
pods:
metricName: http_requests_per_second
#过去1分钟每秒超过10次之后扩容
targetAverageValue: 10
EOF
[root@k8s-master deploy]# kubectl apply -f hpa-custom-metrics.yaml
$ kubectl get hpa
注意metricName为自定义的指标名称。
使用ab命令压测front-app服务，观察hpa的变化：
$ kubectl get svc -o wide
custom-metrics-demo ClusterIP 10.97.236.195 <none> 80/TCP 16h
$ ab -n1000 -c 5 http://10.97.236.195:80/
观察hpa变化:
$ kubectl describe hpa custom-metrics-demo
[root@k8s-master deploy]# kubectl get hpa -w
NAME REFERENCE TARGETS MINPODS MAXPODS REPLICAS AGE
custom-metrics-demo Deployment/custom-metrics-demo 33m/10 1 3 3 6m24s
查看adapter日志：
$ kubectl -n monitor logs --tail=100 -f custom-metrics-apiserver-c689ff947-m5vlr
...
I0802 04:43:58.404559 1 httplog.go:90] GET /apis/custom.metrics.k8s.io/v1beta1/namespaces/default/pods/%2A/nginx_vts_server_requests_per_second?labelSelector=app%3Dcustom-metrics-demo: (20.713209ms) 200 [kube-controller-manager/v1.16.0 (linux/amd64) kubernetes/2bd9643/system:serviceaccount:kube-system:horizontal-pod-autoscaler 172.21.51.143:60626]
实际的请求：
http://prometheus:9090/api/v1/query?query=%28sum%28rate%28nginx_vts_server_requests_per_second%7Bkubernetes_namespace%3D%22default%22%2Ckubernetes_pod_name%3D~%22custom-metrics-demo-95b5bc949-9vd8q%7Ccustom-metrics-demo-95b5bc949-qrpnp%22%2Cjob%3D%22kubernetes-sd-endpoints%22%7D%5B1m%5D%29%29+by+%28kubernetes_pod_name
I1028 08:56:05.289421 1 api.go:74] GET http://prometheus:9090/api/v1/query?query=%28sum%28rate%28nginx_vts_server_requests_total%7Bkubernetes_namespace%3D%22default%22%2Ckubernetes_pod_name%3D~%22custom-metrics-demo-95b5bc949-9vd8q%7Ccustom-metrics-demo-95b5bc949-qrpnp%22%7D%5B1m%5D%29%29+by+%28kubernetes_pod_name%29%29&time=1603875365.284 200 OK
补充：coredns通用指标的hpa
coredns_dns_requests_total指标记录了coredns域名解析记录的信息，我们想根据coredns被访问的频率来实现动态伸缩coredns服务的副本数，因此，基于上述知识，可以添加如下内容：
$ cat custom-metrics-configmap.yaml
apiVersion: v1
kind: ConfigMap
metadata:
name: adapter-config
namespace: monitor
data:
config.yaml: |
rules:
- seriesQuery: 'http_requests_total'
seriesFilters: []
resources:
overrides:
kubernetes_namespace: {resource: "namespace"}
kubernetes_pod_name: {resource: "pod"}
name:
as: "http_requests_per_second"
metricsQuery: (sum(rate(<<.Series>>{<<.LabelMatchers>>}[1m])) by (<<.GroupBy>>))
- seriesQuery: 'coredns_dns_requests_total{}'
seriesFilters: []
resources:
overrides:
kubernetes_namespace: {resource: "namespace"}
kubernetes_pod_name: {resource: "pod"}
name:
as: "coredns_dns_request_count_per_second"
metricsQuery: (sum(rate(<<.Series>>{<<.LabelMatchers>>}[1m])) by (<<.GroupBy>>))
coredns的hpa文件：
$ cat coredns-hpa.yaml
apiVersion: autoscaling/v2beta1
kind: HorizontalPodAutoscaler
metadata:
name: coredns-hpa
namespace: kube-system
spec:
scaleTargetRef:
apiVersion: apps/v1
kind: Deployment
name: coredns
minReplicas: 2
maxReplicas: 10
metrics:
- type: Pods
pods:
metricName: coredns_dns_request_count_per_second
targetAverageValue: 1000
可以通过正则匹配的方式，实现对于同一类别的业务指标的定义：
cat > custom-metrics-configmap.yaml <<\EOF
apiVersion: v1
kind: ConfigMap
metadata:
name: adapter-config
namespace: monitor
data:
config.yaml: |
rules:
- seriesQuery: '{__name__=~".*_requests_total",kubernetes_pod_name!="",kubernetes_namespace!=""}'
seriesFilters: []
resources:
overrides:
kubernetes_namespace:
resource: namespace
kubernetes_pod_name:
resource: pod
name:
matches: ^(.*)_total$
as: "${1}_per_second"
metricsQuery: sum(rate(<<.Series>>{<<.LabelMatchers>>}[1m])) by (<<.GroupBy>>)
EOF
[root@k8s-master k8s-prometheus-adapter]# kubectl apply -f custom-metrics-configmap.yaml
[root@k8s-master k8s-prometheus-adapter]# kubectl -n monitor delete po custom-metrics-apiserver-5fb669c8c5-84lww
[root@k8s-master k8s-prometheus-adapter]# kubectl get --raw /apis/custom.metrics.k8s.io/v1beta1 |jq
coredns_dns_requests_per_second
http_requests__per_second
再次查看当前可用的自定义指标：
