日志采集架构¶
k8s日志收集架构¶
https://kubernetes.io/docs/concepts/cluster-administration/logging/
总体分为三种方式：
- 使用在每个节点上运行的节点级日志记录代理。
- 在应用程序的 pod 中，包含专门记录日志的 sidecar 容器。

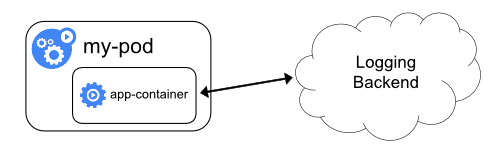

- 将日志直接从应用程序中推送到日志记录后端。

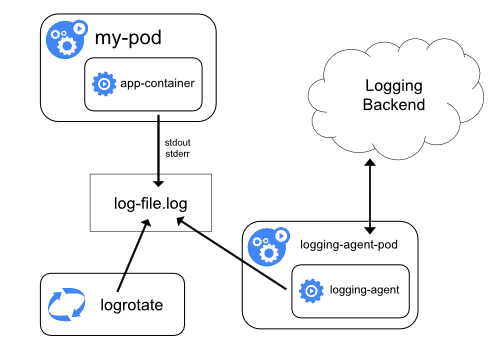

使用节点级日志代理¶
容器日志驱动：
https://docs.docker.com/config/containers/logging/configure/
查看当前的docker主机的驱动：
json-file格式，docker会默认将标准和错误输出保存为宿主机的文件，路径为：
并且可以设置日志轮转： 设置的位置 /etc/docker/daemon.json
{
"log-driver": "json-file",
"log-opts": {
"max-size": "10m",
"max-file": "3",
"labels": "production_status",
"env": "os,customer"
}
}
优势：
- 部署方便，使用DaemonSet类型控制器来部署agent即可
- 对业务应用的影响最小，没有侵入性
劣势:
- 只能收集标准和错误输出，对于容器内的文件日志，暂时收集不到
使用 sidecar 容器和日志代理¶

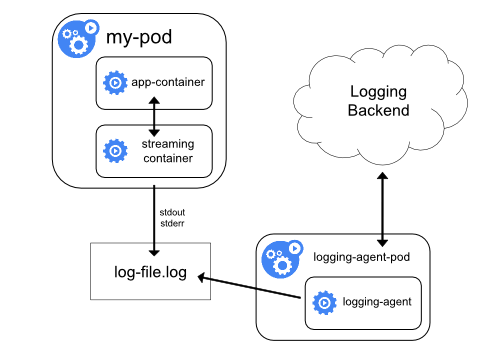

思路：在pod中启动一个sidecar容器，把容器内的日志文件吐到标准输出，由宿主机中的日志收集agent进行采集。
$ cat count-pod.yaml
apiVersion: v1
kind: Pod
metadata:
name: counter
spec:
containers:
- name: count
image: busybox
args:
- /bin/sh
- -c
- >
i=0;
while true;
do
echo "$i: $(date)" >> /var/log/1.log;
echo "$(date) INFO $i" >> /var/log/2.log;
i=$((i+1));
sleep 1;
done
volumeMounts:
- name: varlog
mountPath: /var/log
- name: count-log-1
image: busybox
args: [/bin/sh, -c, 'tail -n+1 -f /var/log/1.log']
volumeMounts:
- name: varlog
mountPath: /var/log
- name: count-log-2
image: busybox
args: [/bin/sh, -c, 'tail -n+1 -f /var/log/2.log']
volumeMounts:
- name: varlog
mountPath: /var/log
volumes:
- name: varlog
emptyDir: {}
$ kubectl apply -f counter-pod.yaml
$ kubectl logs -f counter -c count-log-1
优势：
- 可以实现容器内部日志收集
- 对业务应用的侵入性不大
劣势：
- 每个业务pod都需要做一次改造
-
增加了一次日志的写入，对磁盘使用率有一定影响
-

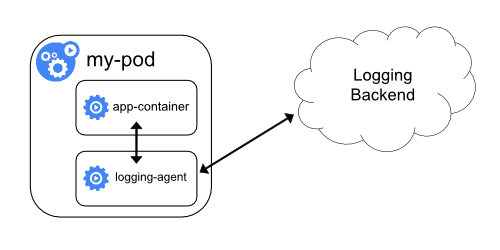

方式二：sidecar 容器运行一个日志代理，配置该日志代理以便从应用容器收集日志。¶
思路：直接在业务Pod中使用sidecar的方式启动一个日志收集的组件（比如fluentd），这样日志收集可以将容器内的日志当成本地文件来进行收取。
优势：不用往宿主机存储日志，本地日志完全可以收集
劣势：每个业务应用额外启动一个日志agent，带来额外的资源损耗
从应用中直接暴露日志目录¶
企业日志方案选型¶
目前来讲，最建议的是采用节点级的日志代理。
方案一：自研方案，实现一个自研的日志收集agent，大致思路：
- 针对容器的标准输出及错误输出，使用常规的方式，监听宿主机中的容器输出路径即可
- 针对容器内部的日志文件
- 在容器内配置统一的环境变量，比如LOG_COLLECT_FILES，指定好容器内待收集的日志目录及文件
- agent启动的时候挂载docker.sock文件及磁盘的根路径
- 监听docker的容器新建、删除事件，通过docker的api，查出容器的存储、环境变量、k8s属性等信息
- 配置了LOG_COLLECT_FILES环境变量的容器，根据env中的日志路径找到主机中对应的文件路径，然后生成收集的配置文件
- agent与开源日志收集工具（Fluentd或者filebeat等）配合，agent负责下发配置到收集工具中并对进程做reload
fluentd-pilot
方案二：日志使用开源的Agent进行收集（EFK方案），适用范围广，可以满足绝大多数日志收集、展示的需求。
Docker日志收集新方案：fluent-pilot - h3399
fluentd概念及工作流程¶

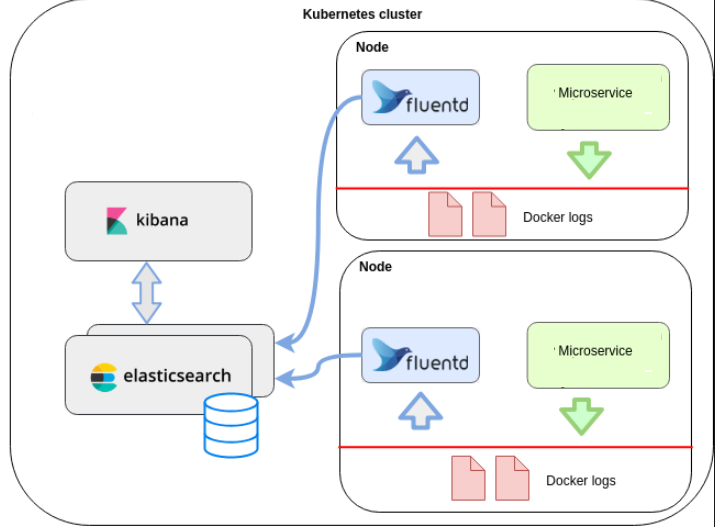

EFK架构工作流程¶
- Elasticsearch
一个开源的分布式、Restful 风格的搜索和数据分析引擎，它的底层是开源库Apache Lucene。它可以被下面这样准确地形容：
- 一个分布式的实时文档存储，每个字段可以被索引与搜索；
- 一个分布式实时分析搜索引擎；
-
能胜任上百个服务节点的扩展，并支持 PB 级别的结构化或者非结构化数据。
-
Kibana
Kibana是一个开源的分析和可视化平台，设计用于和Elasticsearch一起工作。可以通过Kibana来搜索，查看，并和存储在Elasticsearch索引中的数据进行交互。也可以轻松地执行高级数据分析，并且以各种图标、表格和地图的形式可视化数据。

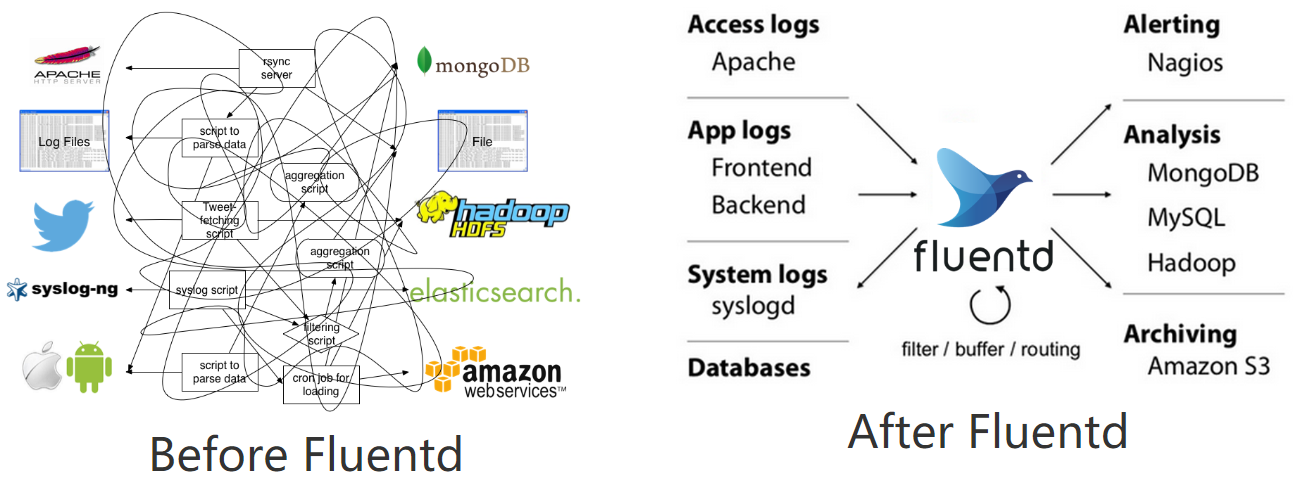

一个针对日志的收集、处理、转发系统。通过丰富的插件系统，可以收集来自于各种系统或应用的日志，转化为用户指定的格式后，转发到用户所指定的日志存储系统之中。
Fluentd 通过一组给定的数据源抓取日志数据，处理后（转换成结构化的数据格式）将它们转发给其他服务，比如 Elasticsearch、对象存储、kafka等等。Fluentd 支持超过300个日志存储和分析服务，所以在这方面是非常灵活的。主要运行步骤如下
- 首先 Fluentd 从多个日志源获取数据
- 结构化并且标记这些数据
- 然后根据匹配的标签将数据发送到多个目标服务
Fluentd精讲¶

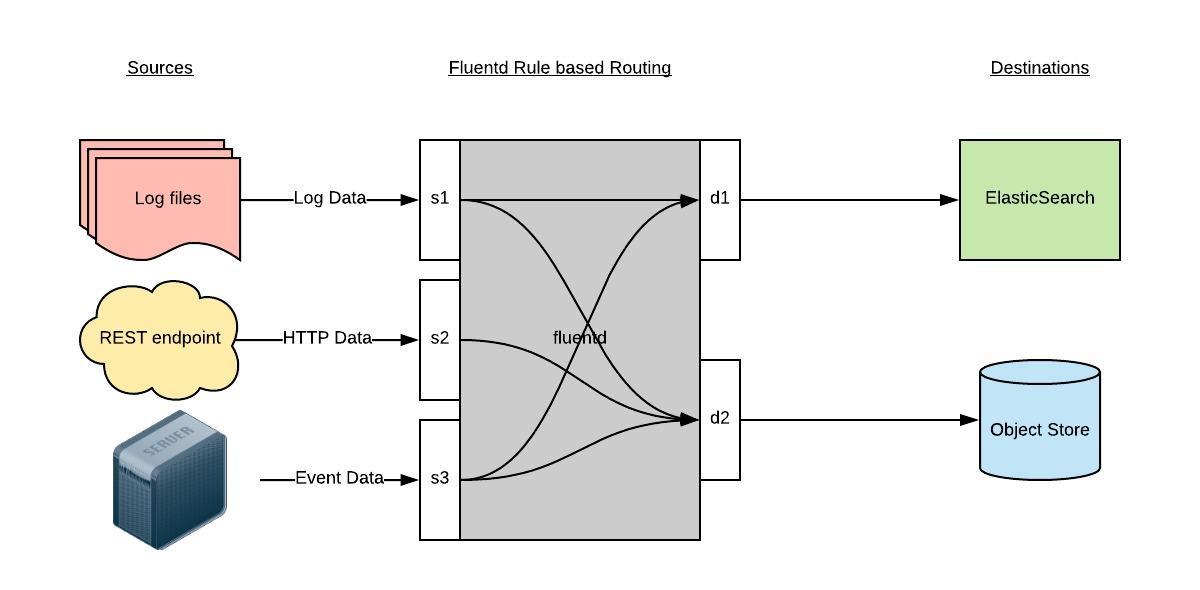

Fluentd架构¶
为什么推荐使用fluentd作为k8s体系的日志收集工具？
-
云原生：https://github.com/kubernetes/kubernetes/tree/release-1.21/cluster/addons/fluentd-elasticsearch
-

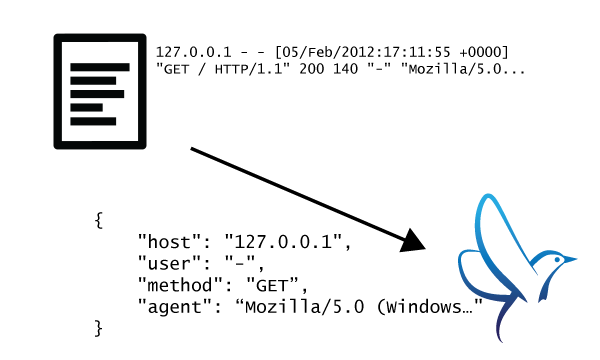

将日志文件JSON化

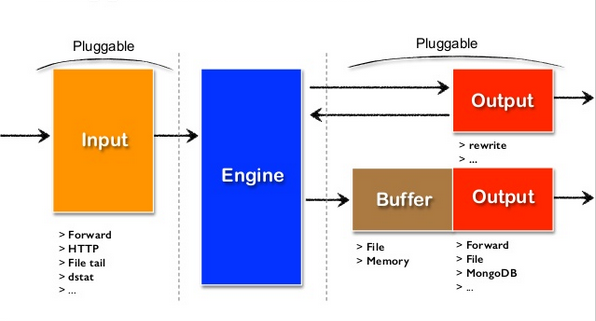

- 可插拔架构设计
- 极小的资源占用
基于C和Ruby语言， 30-40MB，13,000 events/second/core
-
极强的可靠性
-
基于内存和本地文件的缓存
- 强大的故障转移
fluentd事件流的生命周期及指令配置¶
https://docs.fluentd.org/v/0.12/quickstart/life-of-a-fluentd-event
启动命令
指令介绍：
- source ，数据源，对应Input 通过使用 source 指令，来选择和配置所需的输入插件来启用 Fluentd 输入源， source 把事件提交到 fluentd 的路由引擎中。使用type来区分不同类型的数据源。如下配置可以监听指定文件的追加输入：
<source>
@type tail
path /var/log/httpd-access.log
pos_file /var/log/td-agent/httpd-access.log.pos
tag myapp.access
format apache2
</source>
- filter，Event processing pipeline（事件处理流）
filter 可以串联成 pipeline，对数据进行串行处理，最终再交给 match 输出。 如下可以对事件内容进行处理：
<source>
@type http
port 9880
</source>
<filter myapp.access>
@type record_transformer
<record>
host_param “#{Socket.gethostname}”
</record>
</filter>
filter 获取数据后，调用内置的 @type record_transformer 插件，在事件的 record 里插入了新的字段 host_param，然后再交给 match 输出。
- label指令
可以在 source 里指定 @label，这个 source 所触发的事件就会被发送给指定的 label 所包含的任务，而不会被后续的其他任务获取到。
<source>
@type forward
</source>
<source>
### 这个任务指定了 label 为 @SYSTEM
### 会被发送给 <label @SYSTEM>
### 而不会被发送给下面紧跟的 filter 和 match
@type tail
@label @SYSTEM
path /var/log/httpd-access.log
pos_file /var/log/td-agent/httpd-access.log.pos
tag myapp.access
format apache2
</source>
<filter access.**>
@type record_transformer
<record>
# …
</record>
</filter>
<match **>
@type elasticsearch
# …
</match>
<label @SYSTEM>
### 将会接收到上面 @type tail 的 source event
<filter var.log.middleware.**>
@type grep
# …
</filter>
<match **>
@type s3
# …
</match>
</label>
- match，匹配输出
查找匹配 “tags” 的事件，并处理它们。match 命令的最常见用法是将事件输出到其他系统（因此，与 match 命令对应的插件称为 “输出插件”）
<source>
@type http
port 9880
</source>
<filter myapp.access>
@type record_transformer
<record>
host_param “#{Socket.gethostname}”
</record>
</filter>
<match myapp.access>
@type file
path /var/log/fluent/access
</match>
事件的结构：
time：事件的处理时间
tag：事件的来源，在fluentd.conf中配置
record：真实的日志内容，json对象
比如，下面这条原始日志：
经过fluentd 引擎处理完后的样子可能是：
2020-07-16 08:40:35 +0000 apache.access: {"user":"-","method":"GET","code":200,"size":777,"host":"192.168.0.1","path":"/"}

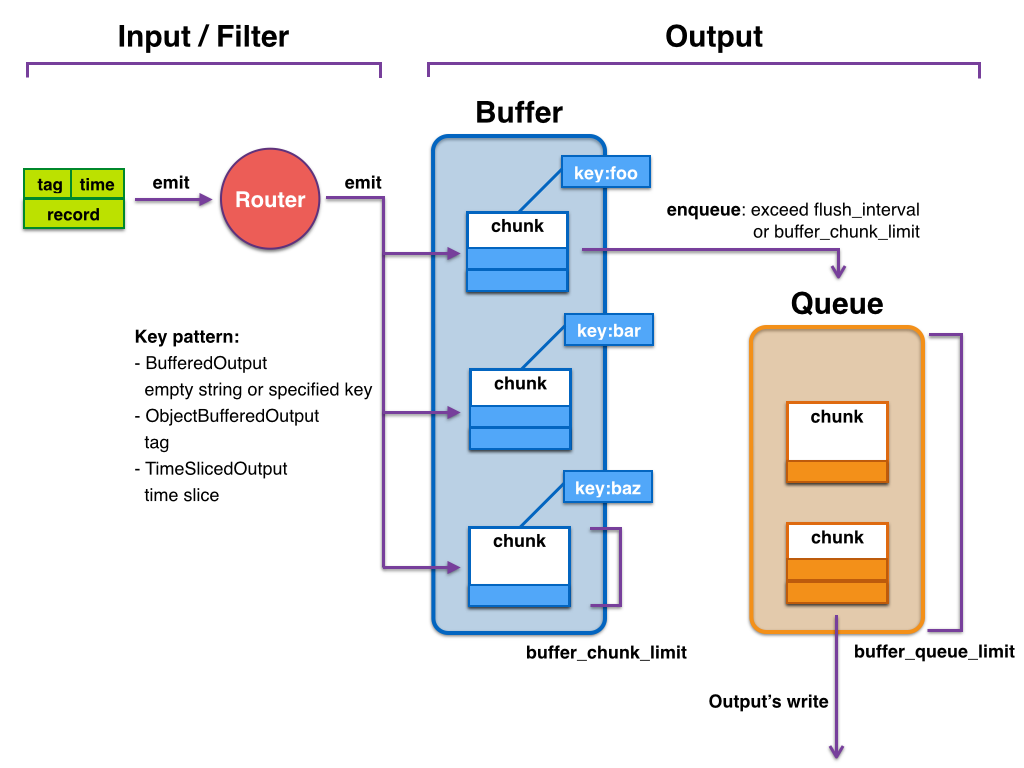

fluentd的buffer事件缓冲模型¶
因为每个事件数据量通常很小，考虑数据传输效率、稳定性等方面的原因，所以基本不会每条事件处理完后都会立马写入到output端，因此fluentd建立了缓冲模型，模型中主要有两个概念：
- buffer_chunk：事件缓冲块，用来存储本地已经处理完待发送至目的端的事件，可以设置每个块的大小。
- buffer_queue：存储chunk的队列，可以设置长度
可以设置的参数，主要有：
- buffer_type，缓冲类型，可以设置file或者memory
- buffer_chunk_limit，每个chunk块的大小，默认8MB
- buffer_queue_limit ，chunk块队列的最大长度，默认256
- flush_interval ，flush一个chunk的时间间隔
- retry_limit ，chunk块发送失败重试次数，默认17次，之后就丢弃该chunk数据
- retry_wait ，重试发送chunk数据的时间间隔，默认1s，第2次失败再发送的话，间隔2s，下次4秒，以此类推
大致的过程为：
随着fluentd事件的不断生成并写入chunk，缓存块持变大，当缓存块满足buffer_chunk_limit大小或者新的缓存块诞生超过flush_interval时间间隔后，会推入缓存queue队列尾部，该队列大小由buffer_queue_limit决定。
比较理想的情况是每次有新的缓存块进入缓存队列，则立马会被写入到后端，同时，新缓存块也持续入列，但是入列的速度不会快于出列的速度，这样基本上缓存队列处于空的状态，队列中最多只有一个缓存块。
但是实际情况考虑网络等因素，往往缓存块被写入后端存储的时候会出现延迟或者写入失败的情况，当缓存块写入后端失败时，该缓存块还会留在队列中，等retry_wait时间后重试发送，当retry的次数达到retry_limit后，该缓存块被销毁（数据被丢弃）。
此时缓存队列持续有新的缓存块进来，如果队列中存在很多未及时写入到后端存储的缓存块的话，当队列长度达到buffer_queue_limit大小，则新的事件被拒绝，fluentd报错，error_class=Fluent:
:BufferOverflowError error="buffer space has too many data"。
还有一种情况是网络传输缓慢的情况，若每3秒钟会产生一个新块，但是写入到后端时间却达到了30s钟，队列长度为100，那么每个块出列的时间内，又有新的10个块进来，那么队列很快就会被占满，导致异常出现。
fluentd配置实践¶
实践一：实现业务应用日志的收集及字段解析¶
目标：收集容器内的nginx应用的access.log日志，并解析日志字段为JSON格式，原始日志的格式为：
$ tail -f access.log
...
53.49.146.149 1561620585.973 0.005 502 [27/Jun/2019:15:29:45 +0800] 178.73.215.171 33337 GET https
收集并处理成：
{
"serverIp": "53.49.146.149",
"timestamp": "1561620585.973",
"respondTime": "0.005",
"httpCode": "502",
"eventTime": "27/Jun/2019:15:29:45 +0800",
"clientIp": "178.73.215.171",
"clientPort": "33337",
"method": "GET",
"protocol": "https"
}
思路：
- 配置fluent.conf
- 使用@tail插件通过监听access.log文件
- 用filter实现对nginx日志格式解析
- 启动fluentd服务
- 手动追加内容至access.log文件
- 观察本地输出内容是否符合预期
- input -> filter
fluent.conf
<source>
@type tail
@label @nginx_access
path /var/log/nginx/access.log
pos_file /var/log/nginx/nginx_access.posg
tag nginx_access
format none
@log_level trace
</source>
<label @nginx_access>
<filter nginx_access>
@type parser
key_name message
format /(?<serverIp>[^ ]*) (?<timestamp>[^ ]*) (?<respondTime>[^ ]*) (?<httpCode>[^ ]*) \[(?<eventTime>[^\]]*)\] (?<clientIp>[^ ]*) (?<clientPort>[^ ]*) (?<method>[^ ]*) (?<protocol>[^ ]*)/
</filter>
<match nginx_access>
@type stdout
</match>
</label>
启动服务，追加文件内容：
# A终端操作
$ docker run -u root --rm -ti quay.io/fluentd_elasticsearch/fluentd:v3.1.0 sh
/ # cat /etc/fluent/fluent.conf
/ # mkdir /etc/fluent/config.d
# 在B终端 拷贝配置文件进这个容器
[root@k8s-master ~]# docker ps |grep fluent
e834e98ec435 quay.io/fluentd_elasticsearch/fluentd:v3.1.0 "sh" 4 minutes ago Up 4 minutes 80/tcp optimistic_dewdney
[root@k8s-master ~]# mkdir efk;cd efk
[root@k8s-master efk]# vi fluent.conf
[root@k8s-master efk]# docker cp fluent.conf e834e98ec435:/etc/fluent/config.d/
# A终端操作
/ # fluentd -c /etc/fluent/fluent.conf #阻塞 观察终端的输出信息
2022-10-23 15:23:44.828697769 +0000 nginx_access: {"serverIp":"53.49.146.149","timestamp":"1561620585.973","respondTime":"0.005","httpCode":"502","eventTime":"27/Jun/2019:15:29:45 +0800","clientIp":"178.73.215.171","clientPort":"33337","method":"GET","protocol":"https"}
# 在 在B终端模拟追加日志信息
/ # echo '53.49.146.149 1561620585.973 0.005 502 [27/Jun/2019:15:29:45 +0800] 178.73.215.171 33337 GET https' >>/var/log/nginx/access.log
使用该网站进行正则校验： http://fluentular.herokuapp.com
实践二：使用ruby实现日志字段的转换及自定义处理¶
<source>
@type tail
@label @nginx_access
path /var/log/nginx/access.log
pos_file /var/log/nginx/nginx_access.posg
tag nginx_access
format none
@log_level trace
</source>
<label @nginx_access>
<filter nginx_access>
@type parser
key_name message
format /(?<serverIp>[^ ]*) (?<timestamp>[^ ]*) (?<respondTime>[^ ]*) (?<httpCode>[^ ]*) \[(?<eventTime>[^\]]*)\] (?<clientIp>[^ ]*) (?<clientPort>[^ ]*) (?<method>[^ ]*) (?<protocol>[^ ]*)/
</filter>
<filter nginx_access>
@type record_transformer
enable_ruby
<record>
host_name "#{Socket.gethostname}"
my_key "my_val"
tls ${record["protocol"].index("https") ? "true" : "false"}
</record>
</filter>
<match nginx_access>
@type stdout
</match>
</label>
---------------------操作记录 把配置文件修改成上面的，重启启动查看
# b终端
[root@k8s-master efk]# vi fluent.conf
[root@k8s-master efk]# docker cp fluent.conf e834e98ec435:/etc/fluent/config.d/
# A终端
^C
^C2022-10-23 15:37:45 +0000 [info]: Received graceful stop
2022-10-23 15:37:46 +0000 [info]: #0 fluentd worker is now stopping worker=0
2022-10-23 15:37:46.818230770 +0000 fluent.info: {"worker":0,"message":"fluentd worker is now stopping worker=0"}
2022-10-23 15:37:46 +0000 [info]: #0 shutting down fluentd worker worker=0
2022-10-23 15:37:46 +0000 [info]: #0 shutting down input plugin type=:tail plugin_id="object:6f4"
2022-10-23 15:37:46 +0000 [info]: #0 shutting down output plugin type=:stdout plugin_id="object:6a4"
2022-10-23 15:37:46 +0000 [info]: #0 shutting down output plugin type=:stdout plugin_id="object:6e0"
2022-10-23 15:37:46 +0000 [info]: #0 shutting down filter plugin type=:parser plugin_id="object:6b8"
2022-10-23 15:37:46 +0000 [info]: Worker 0 finished with status 0
root@e834e98ec435:/etc/fluent# fluentd -c /etc/fluent/fluent.conf #重新启动
# b终端
[root@k8s-master efk]# docker exec -ti e834e98ec435 /bin/sh
# echo '53.49.146.149 1561620585.973 0.005 502 [27/Jun/2019:15:29:45 +0800] 178.73.215.171 33337 GET https' >>/var/log/nginx/access.log
# echo '53.49.146.149 1561620585.973 0.005 502 [27/Jun/2019:15:29:45 +0800] 178.73.215.171 33337 GET https' >>/var/log/nginx/access.log
# A终端
2022-10-23 15:39:07.763463977 +0000 nginx_access: {"serverIp":"53.49.146.149","timestamp":"1561620585.973","respondTime":"0.005","httpCode":"502","eventTime":"27/Jun/2019:15:29:45 +0800","clientIp":"178.73.215.171","clientPort":"33337","method":"GET","protocol":"https","host_name":"e834e98ec435","my_key":"my_val","tls":"true"}
2022-10-23 15:39:08.625421527 +0000 nginx_access: {"serverIp":"53.49.146.149","timestamp":"1561620585.973","respondTime":"0.005","httpCode":"502","eventTime":"27/Jun/2019:15:29:45 +0800","clientIp":"178.73.215.171","clientPort":"33337","method":"GET","protocol":"https","host_name":"e834e98ec435","my_key":"my_val","tls":"true"}
configMap挂载场景¶
ConfigMap的配置文件挂载使用场景¶
开始之前，我们先来回顾一下，configmap的常用的挂载场景。
场景一：单文件挂载到空目录¶
假如业务应用有一个配置文件，名为 application.yml，如果想将此配置挂载到pod的/etc/application/目录中。
application.yml的内容为：
cat > application.yml <<\EOF
spring:
application:
name: svca-service
cloud:
config:
uri: http://config:8888
fail-fast: true
username: user
password: ${CONFIG_SERVER_PASSWORD:password}
retry:
initial-interval: 2000
max-interval: 10000
multiplier: 2
max-attempts: 10
EOF
该配置文件在k8s中可以通过configmap来管理，通常我们有如下两种方式来管理配置文件：
- 通过kubectl命令行来生成configmap
# 通过文件直接创建
$ kubectl -n default create configmap application-config --from-file=application.yml
# 会生成配置文件，查看内容，configmap的key为文件名字
$ kubectl -n default get cm application-config -oyaml
- 通过yaml文件直接创建
$ cat application-config.yaml
apiVersion: v1
kind: ConfigMap
metadata:
name: application-config
namespace: default
data:
application.yml: |
spring:
application:
name: svca-service
cloud:
config:
uri: http://config:8888
fail-fast: true
username: user
password: ${CONFIG_SERVER_PASSWORD:password}
retry:
initial-interval: 2000
max-interval: 10000
multiplier: 2
max-attempts: 10
# 创建configmap
$ kubectl apply -f application-config.yaml
准备一个demo-deployment.yaml文件，挂载上述configmap到容器里的/etc/application/中
cat > demo-deployment.yaml <<EOF
apiVersion: apps/v1
kind: Deployment
metadata:
name: demo
namespace: default
spec:
selector:
matchLabels:
app: demo
template:
metadata:
labels:
app: demo
spec:
volumes:
- configMap:
name: application-config
name: config
containers:
- name: nginx
image: nginx:alpine
imagePullPolicy: IfNotPresent
volumeMounts:
- mountPath: "/etc/application"
name: config
EOF
创建并查看：
$ kubectl apply -f demo-deployment.yaml
[root@k8s-master helm3]# kubectl get po
NAME READY STATUS RESTARTS AGE
demo-67c7c99d47-vvltn 1/1 Running 0 35s
[root@k8s-master helm3]# kubectl exec demo-67c7c99d47-vvltn -- cat /etc/application/application.yml
spring:
application:
name: svca-service
cloud:
config:
uri: http://config:8888
fail-fast: true
username: user
password: ${CONFIG_SERVER_PASSWORD:password}
retry:
initial-interval: 2000
max-interval: 10000
multiplier: 2
max-attempts: 10
修改configmap文件的内容，观察pod中是否自动感知变化：
$ kubectl edit cm application-config
[root@k8s-master helm3]# kubectl edit cm application-config #修改了端口 8889
Edit cancelled, no changes made.
[root@k8s-master helm3]# kubectl exec demo-67c7c99d47-vvltn -- cat /etc/application/application.yml # 30秒之后查看也改变了
整个configmap文件直接挂载到pod中，若configmap变化，pod会自动感知并拉取到pod内部。
但是pod内的进程不会自动重启，所以很多服务会实现一个内部的reload接口，用来加载最新的配置文件到进程中。
场景二：多文件挂载¶
假如有多个配置文件，都需要挂载到pod内部，且都在一个目录中
cat > application.yml <<\EOF
spring:
application:
name: svca-service
cloud:
config:
uri: http://config:8888
fail-fast: true
username: user
password: ${CONFIG_SERVER_PASSWORD:password}
retry:
initial-interval: 2000
max-interval: 10000
multiplier: 2
max-attempts: 10
EOF
cat > supervisord.conf <<EOF
[unix_http_server]
file=/var/run/supervisor.sock
chmod=0700
[supervisord]
logfile=/var/logs/supervisor/supervisord.log
logfile_maxbytes=200MB
logfile_backups=10
loglevel=info
pidfile=/var/run/supervisord.pid
childlogdir=/var/cluster_conf_agent/logs/supervisor
nodaemon=false
EOF
同样可以使用两种方式创建：
$ kubectl delete cm application-config
$ kubectl create cm application-config --from-file=application.yml --from-file=supervisord.conf
$ kubectl get cm application-config -oyaml
观察Pod已经自动获取到最新的变化
$ kubectl exec demo-55c649865b-gpkgk ls /etc/application/
application.yml
supervisord.conf
[root@k8s-master helm3]# kubectl get po
NAME READY STATUS RESTARTS AGE
demo-67c7c99d47-vvltn 1/1 Running 0 10m
nfs-pvc-7cd57855b4-bb7wl 1/1 Running 2 2d21h
[root@k8s-master helm3]# kubectl exec demo-67c7c99d47-vvltn -- ls /etc/application/
application.yml
supervisord.conf
此时，是挂载到pod内的空目录中/etc/application，假如想挂载到pod已存在的目录中，比如：
更改deployment的挂载目录：
cat > demo-deployment.yaml <<EOF
apiVersion: apps/v1
kind: Deployment
metadata:
name: demo
namespace: default
spec:
selector:
matchLabels:
app: demo
template:
metadata:
labels:
app: demo
spec:
volumes:
- configMap:
name: application-config
name: config
containers:
- name: nginx
image: nginx:alpine
imagePullPolicy: IfNotPresent
volumeMounts:
- mountPath: "/etc/profile.d"
name: config
EOF
重建pod
$ kubectl apply -f demo-deployment.yaml
# 查看pod内的/etc/profile.d目录，发现已有文件被覆盖
$ kubectl exec demo-77d685b9f7-68qz7 ls /etc/profile.d
application.yml
supervisord.conf
场景三 挂载子路径¶
实现多个配置文件，可以挂载到pod内的不同的目录中。比如：
application.yml挂载到/etc/application/supervisord.conf挂载到/etc/profile.d
configmap保持不变，修改deployment文件：
cat > demo-deployment.yaml <<EOF
apiVersion: apps/v1
kind: Deployment
metadata:
name: demo
namespace: default
spec:
selector:
matchLabels:
app: demo
template:
metadata:
labels:
app: demo
spec:
volumes:
- name: config
configMap:
name: application-config
items:
- key: application.yml
path: application
- key: supervisord.conf
path: supervisord
containers:
- name: nginx
image: nginx:alpine
imagePullPolicy: IfNotPresent
volumeMounts:
- mountPath: "/etc/application/application.yml"
name: config
subPath: application
- mountPath: "/etc/profile.d/supervisord.conf"
name: config
subPath: supervisord
EOF
测试挂载：
$ kubectl apply -f demo-deployment.yaml
$ kubectl exec demo-78489c754-shjhz ls /etc/application
application.yml
$ kubectl exec demo-78489c754-shjhz ls /etc/profile.d/
supervisord.conf
color_prompt
locale
--------操作记录
[root@k8s-master helm3]# kubectl apply -f demo-deployment.yaml
deployment.apps/demo configured
[root@k8s-master helm3]# kubectl get po
NAME READY STATUS RESTARTS AGE
demo-7f7c84459f-tf98g 1/1 Running 0 22s
[root@k8s-master helm3]# kubectl exec demo-7f7c84459f-tf98g -- ls /etc/application
application.yml
[root@k8s-master helm3]# kubectl exec demo-7f7c84459f-tf98g -- ls /etc/profile.d/
README
color_prompt.sh.disabled
locale.sh
supervisord.conf
使用subPath挂载到Pod内部的文件，不会自动感知原有ConfigMap的变更
EFK基于k8s部署¶
部署es服务¶
部署分析¶
- es生产环境是部署es集群，通常会使用statefulset进行部署
- es默认使用elasticsearch用户启动进程，es的数据目录是通过宿主机的路径挂载，因此目录权限被主机的目录权限覆盖，因此可以利用initContainer容器在es进程启动之前把目录的权限修改掉，注意init container要用特权模式启动。
- 若希望使用helm部署，参考 https://github.com/helm/charts/tree/master/stable/elasticsearch
https://staight.github.io/2019/09/16/%E5%9C%A8k8s%E4%B8%8A%E9%83%A8%E7%BD%B2elasticsearch/
使用StatefulSet管理有状态服务¶
使用Deployment创建多副本的pod的情况：
cat > demo.dpl.yaml <<EOF
apiVersion: apps/v1
kind: Deployment
metadata:
name: nginx-deployment
namespace: default
labels:
app: nginx-deployment
spec:
replicas: 3
selector:
matchLabels:
app: nginx-deployment
template:
metadata:
labels:
app: nginx-deployment
spec:
containers:
- name: nginx
image: nginx:alpine
ports:
- containerPort: 80
EOF
使用StatefulSet创建多副本pod的情况：
cat > demo.sts.yaml <<EOF
apiVersion: apps/v1
kind: StatefulSet
metadata:
name: nginx-statefulset #pod名字可控。0后面增序
namespace: default
labels:
app: nginx-sts
spec:
replicas: 3
serviceName: "nginx" # 指定服务名称 配和无头服务
selector:
matchLabels:
app: nginx-sts
template:
metadata:
labels:
app: nginx-sts
spec:
containers:
- name: nginx
image: nginx:alpine
ports:
- containerPort: 80
EOF
无头服务Headless Service
cat > headless.svc.yaml <<EOF
kind: Service
apiVersion: v1
metadata:
name: nginx
namespace: default
spec:
selector:
app: nginx-sts
ports:
- protocol: TCP
port: 80
targetPort: 80
clusterIP: None
EOF
[root@k8s-master efk]# kubectl create -f demo.sts.yaml
statefulset.apps/nginx-statefulset created
[root@k8s-master efk]# kubectl create -f headless.svc.yaml
service/nginx created
[root@k8s-master efk]# kubectl get po
NAME READY STATUS RESTARTS AGE
nginx-statefulset-0 1/1 Running 0 28s
nginx-statefulset-1 1/1 Running 0 26s
nginx-statefulset-2 1/1 Running 0 24s
[root@k8s-master efk]# kubectl get svc
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
nginx ClusterIP None <none> 80/TCP 2m37s
[root@k8s-master efk]# kubectl exec nginx-statefulset-0 -- curl nginx-statefulset-1.nginx
[root@k8s-master efk]# kubectl exec nginx-statefulset-0 -- curl nginx-statefulset-2.nginx
$ kubectl -n default exec -ti nginx-statefulset-0 sh
/ # curl nginx-statefulset-2.nginx
部署并验证¶
cat > es-config.yaml <<\EOF
apiVersion: v1
kind: ConfigMap
metadata:
name: es-config
namespace: logging
data:
elasticsearch.yml: |
cluster.name: "luffy-elasticsearch"
node.name: "${POD_NAME}"
network.host: 0.0.0.0
discovery.seed_hosts: "es-svc-headless"
cluster.initial_master_nodes: "elasticsearch-0,elasticsearch-1,elasticsearch-2"
EOF
cat > es-svc-headless.yaml <<EOF
apiVersion: v1
kind: Service
metadata:
name: es-svc-headless
namespace: logging
labels:
k8s-app: elasticsearch
spec:
selector:
k8s-app: elasticsearch
clusterIP: None
ports:
- name: in
port: 9300
protocol: TCP
EOF
cat > es-statefulset.yaml <<EOF
apiVersion: apps/v1
kind: StatefulSet
metadata:
name: elasticsearch
namespace: logging
labels:
k8s-app: elasticsearch
spec:
replicas: 3
serviceName: es-svc-headless #
selector:
matchLabels:
k8s-app: elasticsearch
template:
metadata:
labels:
k8s-app: elasticsearch
spec:
initContainers:
- command:
- /sbin/sysctl
- -w
- vm.max_map_count=262144
image: alpine:3.6
imagePullPolicy: IfNotPresent
name: elasticsearch-logging-init
resources: {}
securityContext:
privileged: true
- name: fix-permissions
image: alpine:3.6
command: ["sh", "-c", "chown -R 1000:1000 /usr/share/elasticsearch/data"]
securityContext:
privileged: true
volumeMounts:
- name: es-data-volume
mountPath: /usr/share/elasticsearch/data
containers:
- name: elasticsearch
image: elasticsearch:7.4.2
env:
- name: POD_NAME
valueFrom:
fieldRef:
fieldPath: metadata.name
resources:
limits:
cpu: '1'
memory: 2Gi
requests:
cpu: '1'
memory: 2Gi
ports:
- containerPort: 9200
name: db
protocol: TCP
- containerPort: 9300
name: transport
protocol: TCP
volumeMounts:
- name: es-config-volume
mountPath: /usr/share/elasticsearch/config/elasticsearch.yml
subPath: elasticsearch.yml
- name: es-data-volume
mountPath: /usr/share/elasticsearch/data
volumes:
- name: es-config-volume
configMap:
name: es-config
items:
- key: elasticsearch.yml
path: elasticsearch.yml
volumeClaimTemplates:
- metadata:
name: es-data-volume
spec:
accessModes: ["ReadWriteOnce"]
storageClassName: "nfs"
resources:
requests:
storage: 5Gi
EOF
cat > es-svc.yaml <<EOF
apiVersion: v1
kind: Service
metadata:
name: es-svc
namespace: logging
labels:
k8s-app: elasticsearch
spec:
selector:
k8s-app: elasticsearch
ports:
- name: out
port: 9200
protocol: TCP
EOF
$ kubectl create namespace logging
## 部署服务
$ kubectl apply -f es-config.yaml
$ kubectl apply -f es-svc-headless.yaml
# kubectl apply -f es-statefulset.yaml
$ kubectl apply -f es-svc.yaml
# kubectl apply -f es-statefulset.yaml
Events:
Type Reason Age From Message
---- ------ ---- ---- -------
Warning FailedScheduling 6m36s default-scheduler 0/3 nodes are available: 3 pod has unbound immediate PersistentVolumeClaims.
Warning FailedScheduling 6m35s default-scheduler 0/3 nodes are available: 1 Insufficient cpu, 3 Insufficient memory.
Warning FailedScheduling 5m10s default-scheduler 0/3 nodes are available: 1 Insufficient cpu, 3 Insufficient memory.
#以上问题 解决。把虚拟机cpu调整4 内存8G
## 等待片刻，查看一下es的pod部署到了k8s-slave1节点，状态变为running
# kubectl -n logging get po -owide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
elasticsearch-0 1/1 Running 1 9m57s 10.244.1.83 k8s-slave1 <none> <none>
elasticsearch-1 1/1 Running 1 9m54s 10.244.2.59 k8s-slave2 <none> <none>
elasticsearch-2 1/1 Running 0 9m50s 10.244.1.87 k8s-slave1 <none> <none>
[root@k8s-master efk]# kubectl -n logging get pvc
NAME STATUS VOLUME CAPACITY ACCESS MODES STORAGECLASS AGE
es-data-volume-elasticsearch-0 Bound pvc-74540af4-9f34-4c73-99a8-27615081a8ac 5Gi RWO nfs 9h
es-data-volume-elasticsearch-1 Bound pvc-f365d396-53fc-4018-875c-40b5edf8643c 5Gi RWO nfs 8h
es-data-volume-elasticsearch-2 Bound pvc-46561394-a81d-4f09-81ca-e0027eb92423 5Gi RWO nfs 28m
# 然后通过curl命令访问一下服务，验证es是否部署成功
[root@k8s-master efk]# kubectl -n logging get svc
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
es-svc ClusterIP 10.106.126.23 <none> 9200/TCP 9h
es-svc-headless ClusterIP None <none> 9300/TCP 9h
[root@k8s-master efk]# curl 10.106.126.23:9200
{
"name" : "elasticsearch-1",
"cluster_name" : "luffy-elasticsearch",
"cluster_uuid" : "2D7ZzNpSRAGqg0YL6Q_vfg",
"version" : {
"number" : "7.4.2",
"build_flavor" : "default",
"build_type" : "docker",
"build_hash" : "2f90bbf7b93631e52bafb59b3b049cb44ec25e96",
"build_date" : "2019-10-28T20:40:44.881551Z",
"build_snapshot" : false,
"lucene_version" : "8.2.0",
"minimum_wire_compatibility_version" : "6.8.0",
"minimum_index_compatibility_version" : "6.0.0-beta1"
},
"tagline" : "You Know, for Search"
}
部署kibana¶
部署分析¶
- kibana需要暴露web页面给前端使用，因此使用ingress配置域名来实现对kibana的访问
- kibana为无状态应用，直接使用Deployment来启动
- kibana需要访问es，直接利用k8s服务发现访问此地址即可，http://es-svc:9200
部署并验证¶
文件夹efk里
cat > kibana.yaml <<EOF
apiVersion: apps/v1
kind: Deployment
metadata:
name: kibana
namespace: logging
labels:
app: kibana
spec:
selector:
matchLabels:
app: "kibana"
template:
metadata:
labels:
app: kibana
spec:
containers:
- name: kibana
image: kibana:7.4.2
resources:
limits:
cpu: 1000m
requests:
cpu: 100m
env:
- name: ELASTICSEARCH_HOSTS
value: http://es-svc:9200
- name: SERVER_NAME
value: kibana-logging
- name: SERVER_REWRITEBASEPATH
value: "false"
ports:
- containerPort: 5601
volumeMounts:
- name: config
mountPath: /usr/share/kibana/config/
volumes:
- name: config
configMap:
name: kibana-config
---
apiVersion: v1
kind: ConfigMap
metadata:
name: kibana-config
namespace: logging
data:
kibana.yml: |-
elasticsearch.requestTimeout: 90000
server.host: "0"
xpack.monitoring.ui.container.elasticsearch.enabled: true
---
apiVersion: v1
kind: Service
metadata:
name: kibana
namespace: logging
labels:
app: kibana
spec:
ports:
- port: 5601
protocol: TCP
targetPort: 5601
type: ClusterIP
selector:
app: kibana
---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: kibana
namespace: logging
spec:
rules:
- host: kibana.luffy.com
http:
paths:
- path: /
pathType: Prefix
backend:
service:
name: kibana
port:
number: 5601
EOF
$ kubectl apply -f kibana.yaml
deployment.apps/kibana created
service/kibana created
ingress/kibana created
[root@k8s-master efk]# kubectl -n logging get ing
NAME CLASS HOSTS ADDRESS PORTS AGE
kibana <none> kibana.luffy.com 80 19s
## 配置域名解析 kibana.luffy.com，并访问服务进行验证，若可以访问，说明连接es成功
# 宿主机
vi /etc/hosts # 增加的内容 kibana.luffy.com
10.211.55.25 wordpress.luffy.com harbor.luffy.com kibana.luffy.com
[root@k8s-master efk]# kubectl -n logging get ing
NAME CLASS HOSTS ADDRESS PORTS AGE
kibana <none> kibana.luffy.com 80 19s
[root@k8s-master efk]# kubectl -n logging get po
NAME READY STATUS RESTARTS AGE
elasticsearch-0 1/1 Running 1 33m
elasticsearch-1 1/1 Running 1 33m
elasticsearch-2 1/1 Running 0 33m
kibana-5f568b7b7c-rjwf5 1/1 Running 0 6m55s
[root@k8s-master efk]# kubectl -n logging logs -f kibana-5f568b7b7c-rjwf5
。。。。
{"type":"log","@timestamp":"2022-10-24T08:40:30Z","tags":["info","http","server","Kibana"],"pid":7,"message":"http server running at http://0:5601"}
{"type":"log","@timestamp":"2022-10-24T08:40:31Z","tags":["status","plugin:spaces@7.4.2","info"],"pid":7,"state":"green","message":"Status changed from yellow to green - Ready","prevState":"yellow","prevMsg":"Waiting for Elasticsearch"}
#浏览器访问 kibana.luffy.com 找到dev tools 工具添加如下代码
# GET /_cat/health?v
# GET /_cat/indices
Fluentd服务部署¶
部署分析¶
- fluentd为日志采集服务，kubernetes集群的每个业务节点都有日志产生，因此需要使用daemonset的模式进行部署
- 为进一步控制资源，会为daemonset指定一个选择标签，fluentd=true来做进一步过滤，只有带有此标签的节点才会部署fluentd
- 日志采集，需要采集哪些目录下的日志，采集后发送到es端，因此需要配置的内容比较多，我们选择使用configmap的方式把配置文件整个挂载出来
部署服务¶
cat > fluentd-es-config-main.yaml <<EOF
apiVersion: v1
data:
fluent.conf: |-
# This is the root config file, which only includes components of the actual configuration
#
# Do not collect fluentd's own logs to avoid infinite loops.
<match fluent.**>
@type null
</match>
@include /fluentd/etc/config.d/*.conf
kind: ConfigMap
metadata:
labels:
addonmanager.kubernetes.io/mode: Reconcile
name: fluentd-es-config-main
namespace: logging
EOF
配置文件，fluentd-config.yaml，注意点：
- 数据源source的配置，k8s会默认把容器的标准和错误输出日志重定向到宿主机中
- 默认集成了 kubernetes_metadata_filter 插件，来解析日志格式，得到k8s相关的元数据，raw.kubernetes
- match输出到es端的flush配置
cat > fluentd-configmap.yaml <<\EOF
kind: ConfigMap
apiVersion: v1
metadata:
name: fluentd-config
namespace: logging
labels:
addonmanager.kubernetes.io/mode: Reconcile
data:
containers.input.conf: |-
<source>
@id fluentd-containers.log
@type tail
path /var/log/containers/*.log
pos_file /var/log/es-containers.log.pos
time_format %Y-%m-%dT%H:%M:%S.%NZ
localtime
tag raw.kubernetes.*
format json
read_from_head false
</source>
# Detect exceptions in the log output and forward them as one log entry.
# https://github.com/GoogleCloudPlatform/fluent-plugin-detect-exceptions
<match raw.kubernetes.**>
@id raw.kubernetes
@type detect_exceptions
remove_tag_prefix raw
message log
stream stream
multiline_flush_interval 5
max_bytes 500000
max_lines 1000
</match>
# Concatenate multi-line logs
<filter **>
@id filter_concat
@type concat
key message
multiline_end_regexp /\n$/
separator ""
</filter>
output.conf: |-
# Enriches records with Kubernetes metadata
<filter kubernetes.**>
@type kubernetes_metadata
</filter>
<match **>
@id elasticsearch
@type elasticsearch
@log_level info
include_tag_key true
hosts elasticsearch-0.es-svc-headless:9200,elasticsearch-1.es-svc-headless:9200,elasticsearch-2.es-svc-headless:9200
#port 9200
logstash_format true
#index_name kubernetes-%Y.%m.%d
request_timeout 30s
<buffer>
@type file
path /var/log/fluentd-buffers/kubernetes.system.buffer
flush_mode interval
retry_type exponential_backoff
flush_thread_count 2
flush_interval 5s
retry_forever
retry_max_interval 30
chunk_limit_size 2M
queue_limit_length 8
overflow_action block
</buffer>
</match>
EOF
daemonset定义文件，fluentd.yaml，注意点：
- 需要配置rbac规则，因为需要访问k8s api去根据日志查询元数据
- 需要将/var/log/containers/目录挂载到容器中
- 需要将fluentd的configmap中的配置文件挂载到容器内
- 想要部署fluentd的节点，需要添加fluentd=true的标签
cat > fluentd.yaml <<EOF
apiVersion: v1
kind: ServiceAccount
metadata:
name: fluentd-es
namespace: logging
labels:
k8s-app: fluentd-es
kubernetes.io/cluster-service: "true"
addonmanager.kubernetes.io/mode: Reconcile
---
kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1
metadata:
name: fluentd-es
labels:
k8s-app: fluentd-es
kubernetes.io/cluster-service: "true"
addonmanager.kubernetes.io/mode: Reconcile
rules:
- apiGroups:
- ""
resources:
- "namespaces"
- "pods"
verbs:
- "get"
- "watch"
- "list"
---
kind: ClusterRoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
name: fluentd-es
labels:
k8s-app: fluentd-es
kubernetes.io/cluster-service: "true"
addonmanager.kubernetes.io/mode: Reconcile
subjects:
- kind: ServiceAccount
name: fluentd-es
namespace: logging
apiGroup: ""
roleRef:
kind: ClusterRole
name: fluentd-es
apiGroup: ""
---
apiVersion: apps/v1
kind: DaemonSet
metadata:
labels:
addonmanager.kubernetes.io/mode: Reconcile
k8s-app: fluentd-es
name: fluentd-es
namespace: logging
spec:
selector:
matchLabels:
k8s-app: fluentd-es
template:
metadata:
labels:
k8s-app: fluentd-es
spec:
containers:
- image: quay.io/fluentd_elasticsearch/fluentd:v3.1.0
imagePullPolicy: IfNotPresent
name: fluentd-es
resources:
limits:
memory: 500Mi
requests:
cpu: 100m
memory: 200Mi
volumeMounts:
- mountPath: /var/log
name: varlog
- mountPath: /var/lib/docker/containers
name: varlibdockercontainers
readOnly: true
- mountPath: /etc/fluent/config.d
name: config-volume
nodeSelector:
fluentd: "true"
securityContext: {}
serviceAccount: fluentd-es
serviceAccountName: fluentd-es
volumes:
- hostPath:
path: /var/log
name: varlog
- hostPath:
path: /var/lib/docker/containers
name: varlibdockercontainers
- configMap:
defaultMode: 420
name: fluentd-config
name: config-volume
EOF
## 给slave1打上标签，进行部署fluentd日志采集服务
$ kubectl label node k8s-slave1 fluentd=true
$ kubectl label node k8s-slave2 fluentd=true
# kubectl label node k8s-master fluentd- #删除标签
# kubectl get no --show-labels
# 创建服务
$ kubectl apply -f fluentd-es-config-main.yaml
$ kubectl apply -f fluentd-configmap.yaml
$ kubectl apply -f fluentd.yaml
## 然后查看一下pod是否已经在k8s-slave1
[root@k8s-master efk]# kubectl -n logging get po -owide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
elasticsearch-0 1/1 Running 0 53m 10.244.2.67 k8s-slave2 <none> <none>
elasticsearch-1 1/1 Running 1 4h41m 10.244.2.59 k8s-slave2 <none> <none>
elasticsearch-2 1/1 Running 0 53m 10.244.1.92 k8s-slave1 <none> <none>
fluentd-es-5bp6k 1/1 Running 0 8s 10.244.1.96 k8s-slave1 <none> <none>
fluentd-es-6r422 1/1 Running 0 8s 10.244.2.73 k8s-slave2 <none> <none>
kibana-5f568b7b7c-rjwf5 1/1 Running 0 4h14m 10.244.2.64 k8s-slave2 <none> <none>
日志收集功能验证¶
EFK功能验证¶
验证思路¶
在slave节点中启动服务，同时往标准输出中打印测试日志，到kibana中查看是否可以收集
创建测试容器¶
efk/test-pod.yaml
apiVersion: v1
kind: Pod
metadata:
name: counter
spec:
nodeSelector:
fluentd: "true"
containers:
- name: count
image: alpine:3.6
args: [/bin/sh, -c,
'i=0; while true; do echo "$i: $(date)"; i=$((i+1)); sleep 1; done']
$ kubectl get po
NAME READY STATUS RESTARTS AGE
counter 1/1 Running 0 6s
配置kibana¶

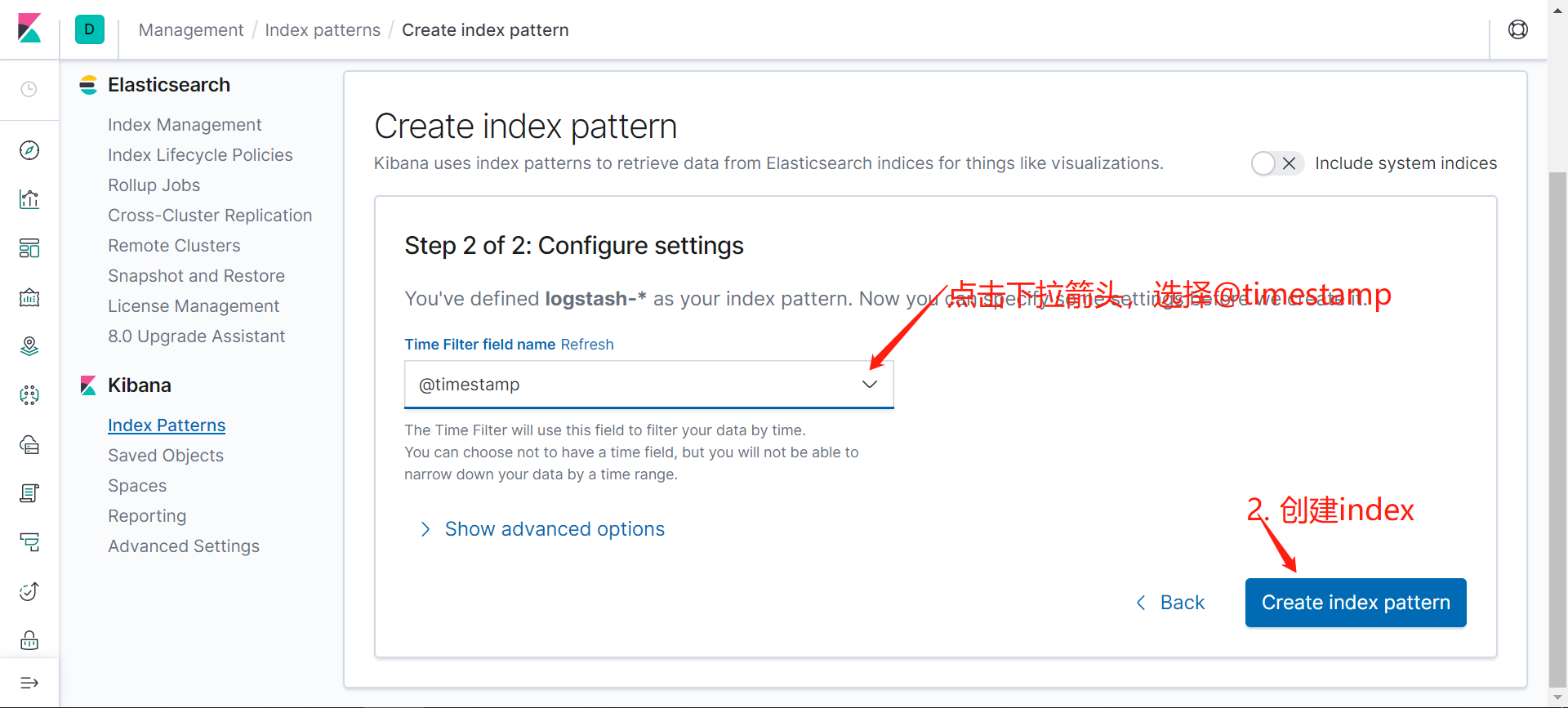

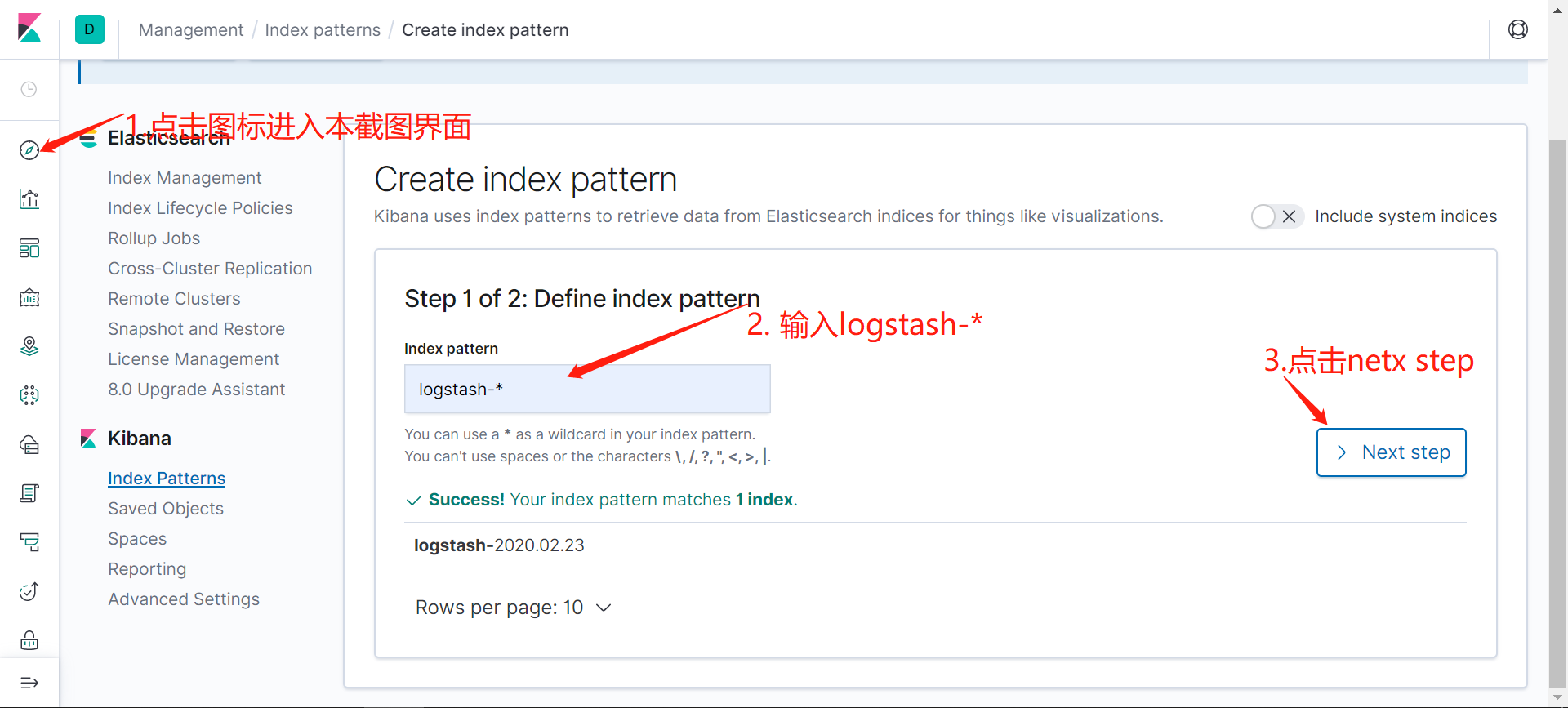

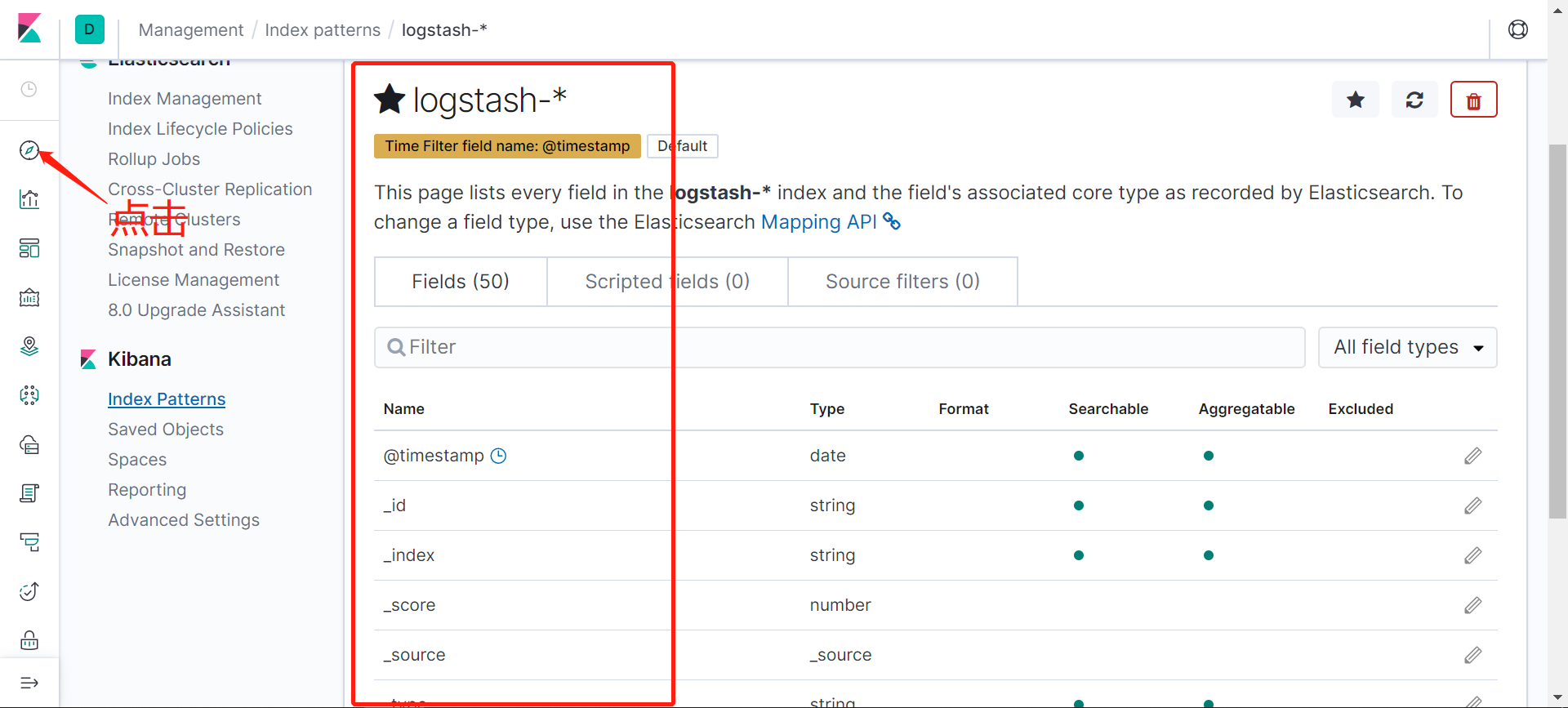

登录kibana界面，按照截图的顺序操作：

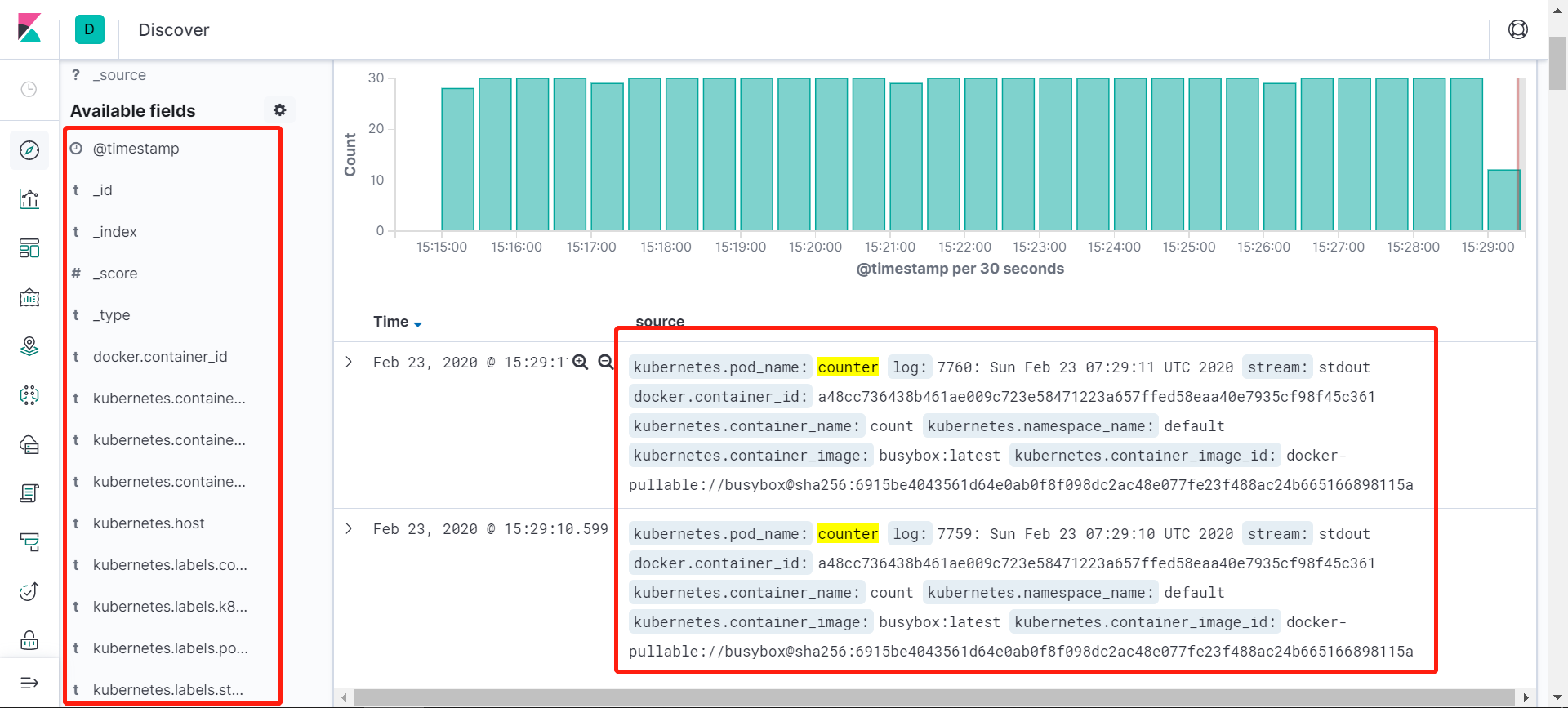

也可以通过其他元数据来过滤日志数据，比如可以单击任何日志条目以查看其他元数据，如容器名称，Kubernetes 节点，命名空间等，比如kubernetes.pod_name : counter
到这里，我们就在 Kubernetes 集群上成功部署了 EFK ，要了解如何使用 Kibana 进行日志数据分析，可以参考 Kibana 用户指南文档：https://www.elastic.co/guide/en/kibana/current/index.html
